Page 1: Table Of Contents

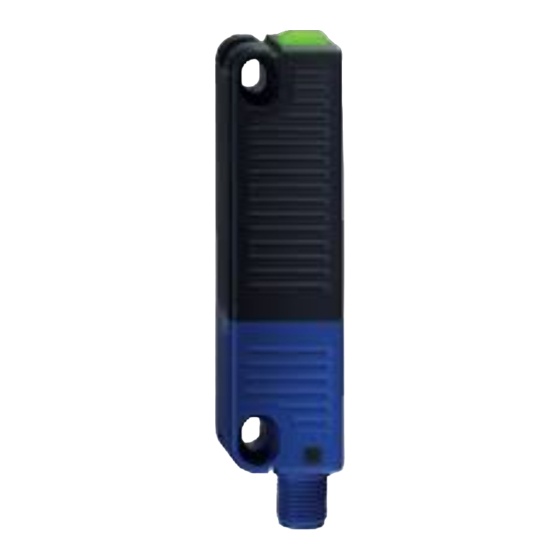

INSTRUKTIONER FÖR ANVÄNDNING OCH INSTALLATION Electronic safety-sensor RSS 36-I1-D-ST Table of Contents 1 Om detta dokument 1.1 Funktion 1.2 Instruktionsbokens målgrupp: auktoriserad fackpersonal 1.3 Använda symboler 1.4 Avsedd användning 1.5 Allmänna säkerhetsanvisningar 2 Produktbeskrivning 2.1 Typnyckel 2.2 Specialversioner 2.3 Ändamål och användning 2.4 Varning för felanvändning... -
Page 2: Instruktionsbokens Målgrupp: Auktoriserad Fackpersonal
Säkerhetsbrytaren får endast användas i enlighet med följande utföranden eller för den av tillverkaren godkända användningen. Detaljerade uppgifter om användningsområdet finns i kapitlet "Produktbeskrivning". 1.5 Allmänna säkerhetsanvisningar Säkerhetsanvisningarna i instruktionsboken samt gällande installations-, säkerhets- och olycksfallsföreskrifter ska beaktas. Ytterligare teknisk information finns i Schmersal-katalogen resp. på products.schmersal.com i online-katalogen på Internet. 2 Produktbeskrivning... -
Page 3: Typnyckel
2.1 Typnyckel Produktbeteckning: RSS 36 (1)-(2)-(3)-(4) utan Standardkodning individuellt kodad Individuellt kodad, kan omkodas utan without diagnostic function (only on request for ST5) med diagnosutgång with serial diagnostics (only for ST) utan utan kvarstannande positioner med kvarstannande, hållkraft ca 18 N Stickkontakt M12, 8-polig Connector plug M12, 5-pole 2.2 Specialversioner... -
Page 4: Varning För Felanvändning
Safety sensors and actuators with latching (ordering suffix 'R') always must be used in pairs. The latching force (approx. 18 N) exercised by the permanent magnet keeps hatches and small guards closed, also in a de-energised condition. The system can be used as a door end stop up to 5 kg at 0.25 m/s. The diagnostic output of the safety sensor alternatively can be used as a conventional output or as a “serial output“... - Page 5 Föreskrifter EN ISO 13849-1 EN IEC 60947-5-3 EN IEC 61508 Allmän information individuellt kodad Coding level according to EN ISO 14119 Hög Aktiv princip RFID Frequency band RFID 125 kHz Transmitter output RFID, maximum -6 dB/m Kaplsing, dimensioner Block Monteringsvillkor (mekanisk) inte i jämnhöjd Sensorns topologi Sensor för seriekoppling...
- Page 6 Safety Integrity Level (SIL) Mission time 20 År Mekaniska data Nyckelingångar på sidan Aktiv yta på sidan Hysteres (aktiveringsavstånd), maximum 2 mm Repeternoggrannhet 0,5 mm Notera (repeternoggrannhet R) Sidoförskjutning: Lång sidoyta tillåter en max. höjdförskjutning (x) av sensor och aktiveringsdon med 8 mm (t.ex. monteringstolerans eller genom att dörren satt sig).
- Page 7 Skyddsklass IP65 IP67 IP69 Omgivningstemperatur, minimum -25 °C Omgivningstemperatur, maximum +70 °C Lager och transporttemperatur, minimum -25 °C Lager och transporttemperatur, maximum +85 °C Relativ fuktighet, maximum 93 % Note (Relative humidity) icke kondenserande inte nedisande Vibrationstålig enligt EN 60068-2-6 10 …...
- Page 8 Classification ZVEI CB24I, Source Electrical data - Safety digital outputs Designation, Safety outputs Y1 and Y2 Märkström (säkerhetsutgångar) 250 mA Utgångsström (säker utgång), maximum 0,25 A Säkerhetsutgång short-circuit proof, p-type Voltage drop U , maximum Leakage current I , maximum 0,5 mA Voltage, Utilisation category DC-12 24 VDC...
-
Page 9: Montering
This device complies with the nerve stimulation limits (ISED CNR-102) when operated at a minimum distance of 100 In the event of changes or modifications that have not been expressly approved by K.A. Schmersal GmbH & Co. KG, the user's authorisation to use the device may become ineffective. -
Page 10: Dimensioner
Ensure the safety sensor and actuator is mounted on a flat surface. The component can be mounted in any position. The universal mounting holes provide for a variable mounting by means of M4 screws. Mounting: a screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used. -
Page 11: Accessories
Alternative suitable actuators with different design: refer to products.schmersal.com. 4.3 Accessories Set of disposable screws (order separately) - 4x M4x25 incl. washers, order number 101217746 - 4x M4x30 incl. washers, Bestellnummer 101217747 Sealing kit (order separately) - Order number 101215048 - 8 plugs and 4 under seals - To seal the mounting holes and as a spacer (approx. -
Page 12: Switch Distance
4.4 Switch distance Switching distances in mm to IEC 60947-5-3 Typical switching distance s Assured switching distance s Assured switch-off distance s There are new switch distances as per the table below owing to the necessity of technical modifications (V2). Please check the design of your guard system following installation to ensure adherence to the secured switch distances (≤... -
Page 13: Adjustment
The side allows for a maximum height misalignment (X) of sensor and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (y) is max. ± 18 mm. Latching versions X ± 5 mm, Y ± 3 mm. The latching force will be reduced by misalignment. -
Page 14: Seriell Diagnos -Sd
Requirements for the connected safety-monitoring module: dual-channel safety input, suitable for p-type sensors with NO function Information för val av lämplig säkerhetsövervakning finns i Schmersal-katalogen resp. under products.schmersal.com i online-katalogen på Internet. As an alternative to a safety-monitoring module, the safety sensors of the CSS 34F0 or CSS 34F1 series can also be used as first sensor of a series-wired chain for the direct control and monitoring of safety contactors (refer to operating manual of CSS 34F0 / CSS 34F1). -
Page 15: Anslutningsexempel För Seriekoppling
5.3 Anslutningsexempel för seriekoppling Series-wiring can be set up. In the case of a series connection, the risk time remains unchanged and the reaction time increases by the sum of the reaction time of the inputs per additional unit specified in the technical data. The number of components is only limited by the external cable protection according to the technical data and the line loss. - Page 16 Function safety switchgear Pin configuration of the Colour codes of the Schmersal Poss. connector connectors colour codes of other customary connectors 8-pin 5-pin 8-pin version ST 5-pin to IEC version ST version ST version ST 60947-5-2: 2007 with...
-
Page 17: Actuator Coding
6 Actuator coding Safety sensors with standard coding are ready to use upon delivery. Individually coded safety sensors and actuators will require the following "teach-in" procedure: 1. Energise the safety sensor. 2. Introduce the actuator in the detection range. The teach-in procedure is signalled at the safety sensor, red LED on, yellow LED flashes (1 Hz). -
Page 18: Operating Principle Of The Electronic Diagnostic Output
LED indication (red) Error cause 1 flash pulse Error output Y1 2 flash pulses Error output Y2 3 flash pulses Cross-wire Y1/Y2 4 flash pulses ambient temperature too high 5 flash pulses Wrong or defective actuator Continuous red ... -
Page 19: Safety-Sensors With Serial Diagnostic Function
Table 1: Examples of the diagnostic function of the safety-sensor with conventional diagnostic output Sensor function LED's Diagnostic- Safety Comments output outputs green yellow Y1, Y2 Supply voltage Voltage on, no evaluation of the voltage quality actuated 24 V 24 V The yellow LED always signals... - Page 20 SD-Gateway is integrated as a slave in an existing field bus system. In this way, the diagnostic signals can be evaluated by means of a PLC. The necessary software for the integration of the SD-Gateway is available for download at products.schmersal.com. The response data and the diagnostic data are automatically and permanently written in the assigned input byte of the PLC for each safety sensor in the series-wired chain.
- Page 21 Table 2: Function of the visual diagnostic LEDs, the serial status signals and the safety outputs by means of an example System LED's Safety Status signals serial diagnostic byte Bit n° conditi outputs green yellow Y1, Y2 Non- actaute d, inputs X1 and enabled Actuate...
-
Page 22: Idrifttagning Och Underhåll
Table 3: Tabular overview of status signals, warnings or error messages(The described condition is reached, when Bit = Communication Request byte: from the PLC to the local safety sensor directions: Response byte: from the local safety sensor to the PLC ... -
Page 23: Demontering
9.1 Demontering Säkerhetsbrytaren får endast demonteras i spänningslöst tillstånd. 9.2 Sluthantering Säkerhetsbrytaren ska sluthanteras fackmannamässigt i enlighet med nationella föreskrifter och lagar. £...
