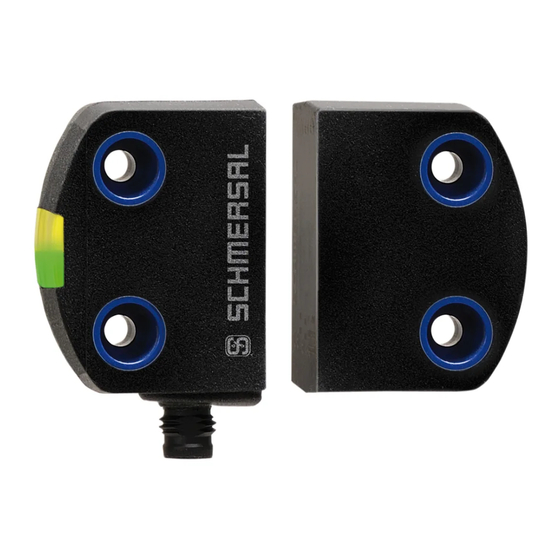

schmersal RSS260 Operating Instructions Manual

Safety sensor
Hide thumbs Also See for RSS260:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating instructions
Safety sensor
Operating instructions. . . . . . . . . . . .pages 1 to 12
EN
Original
Content
1
About this document
1.1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.2 Target group: authorised qualified personnel. . . . . . . . . . . . . . . . . .1
1.3 Explanation of the symbols used . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.4 Appropriate use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
1.5 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.6 Warning about misuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
1.7 Exclusion of liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2
2.1 Ordering code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.2 Special versions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.4 Purpose . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
2.5 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
2.6 Safety classification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3
3.1 General mounting instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
3.2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
3.3 Actuating directions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.4 Switch distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
3.5 Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
4
4.1 General information for electrical connection. . . . . . . . . . . . . . . . . .6
4.2 Serial diagnostic -SD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
5
5.1 Mode of operation of the safety outputs. . . . . . . . . . . . . . . . . . . . . .6
5.2 Coding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
6
6.1 Operating principle of the diagnostic LEDs . . . . . . . . . . . . . . . . . . .7
6.3 Safety-sensors with serial diagnostic function . . . . . . . . . . . . . . . . .8
7
7.1 Functional testing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
7.2 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8
8.1 Disassembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
8.2 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
9
9.2 Wiring examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10 EU Declaration of conformity
1. About this document

1.1 Function

This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear. The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device.

1.2 Target group: authorised qualified personnel

All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only.
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation.
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components.

1.3 Explanation of the symbols used

Information, hint, note:
This symbol is used for identifying useful additional
information.
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions.
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine.

1.4 Appropriate use

The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine. It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant.
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer. Detailed information regarding the range of applications
can be found in the chapter "Product description".
EN
RSS260
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RSS260 and is the answer not in the manual?

Questions and answers

Related Manuals for schmersal RSS260

Summary of Contents for schmersal RSS260

  • Page 1: Table Of Contents

    Operating instructions Safety sensor RSS260 Set-up and maintenance 7.1 Functional testing........9 7.2 Maintenance .

  • Page 2: General Safety Instructions

    2.3 Comprehensive quality insurance to 2006/42/EC Further technical information can be found in the Schmersal Schmersal is a certified company to appendix X of the Machinery catalogues or in the online catalogue on the Internet: Directive. As a result, Schmersal is entitled to autonomously conduct products.schmersal.com.

  • Page 3: Technical Data

    Operating instructions Safety sensor RSS260 2.5 Technical data Safety outputs Y1/Y2: p-type, short-circuit proof Standards: IEC 60947-5-3, ISO 13849-1, IEC 61508, IEC 62061 Operating current I max. 0,25 A Enclosure: thermoplastic PBT Utilisation category: DC-12 U 24 VDC / 0.25 A...

  • Page 4: Dimensions

    All measurements in mm. guidelines: • The presence of metal chips in the vicinity of the sensor is liable to Safety sensor RSS260-...-ST modify the switching distance. • Keep away from metal chips. • Minimum distance 100 mm between two safety sensors as well as...

  • Page 5: Actuating Directions

    Operating instructions Safety sensor RSS260 3.3 Actuating directions 3.4 Switch distance The side allows for a maximum height misalignment (X) of sensor Actuation from front and actuator of ± 8 mm (e.g. mounting tolerance or due to guard door sagging). The axial misalignment (Y) is max. ± 18 mm.

  • Page 6: Electrical Connection

    Information for the selection of suitable safety-monitoring at a safety output, cross-wire short) will lead to a warning message, modules can be found in the Schmersal catalogues or in the the disabling of the diagnostic output and the delayed shut-down of the online catalogue on the Internet: products.schmersal.com.

  • Page 7: Diagnostic Functions

    Operating instructions Safety sensor RSS260 6. Diagnostic functions LED indication (red) Error cause 5 flash Incorrect or defective actuator 6.1 Operating principle of the diagnostic LEDs pulses The safety sensor indicates the operating condition and faults by means Continuous Internal fault, of three-colour LEDs located in the lateral surfaces of the sensor.

  • Page 8: Safety-Sensors With Serial Diagnostic Function

    PLC. The necessary software for the integration of the rectification cannot be detected sooner. SD- Gateway is available for download at products.schmersal.com. Error warning The response data and the diagnostic data are automatically and...

  • Page 9: Set-Up And Maintenance

    Operating instructions Safety sensor RSS260 7. Set-up and maintenance 8. Disassembly and disposal 7.1 Functional testing 8.1 Disassembly The safety function of the safety components must be tested. The The safety switchgear must be disassembled in a de-energised following conditions must be previously checked and met: condition only.

  • Page 10: Appendix

    9. Appendix 9.1 Wiring configuration and connector accessories - For sensor versions with 8-pin connector Function safety switchgear Pin assignment of Colour code of the Schmersal poss. Colour codes for more connector plug connector to DIN 47100 commercially available con-...

  • Page 11: Wiring Examples

    Operating instructions Safety sensor RSS260 9.2 Wiring examples The application examples shown are suggestions. They however do not release the user from carefully checking whether the switchgear and its set- up are suitable for the individual application. Wiring example 1: Series-wiring of the RSS 260 with conventional diagnostic output The voltage is supplied to both safety inputs of the last safety sensor of the chain (considered from the safety-monitoring module).
  • Page 12 Safety sensor RSS260 10. EU Declaration of conformity EU Declaration of conformity Original K.A. Schmersal GmbH & Co. KG Möddinghofe 30 42279 Wuppertal Germany Internet: www.schmersal.com We hereby certify that the hereafter described components both in their basic design and construction conform to the applicable European Directives.
