Operating instructions

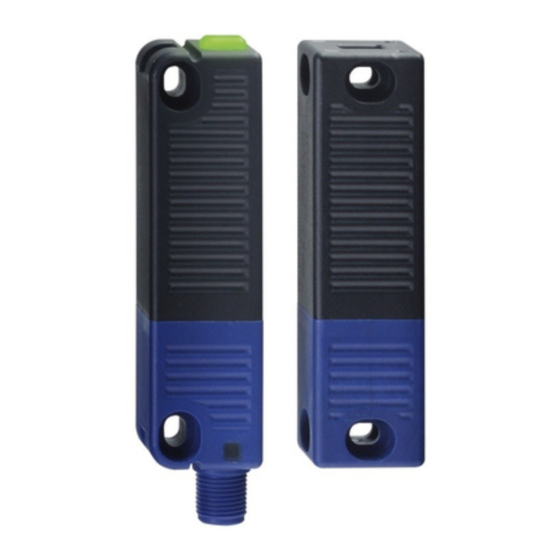

Safety sensor
Operating instructions pages 1 to 10
EN
Original
Content
1
About this document
11 Function 1
12 Target group: authorised qualified personnel 1
13 Explanation of the symbols used 1
14 Appropriate use 1
15 General safety instructions 1
2
24 Purpose 2
3
32 Dimensions 4
33 Switch distance 4
34 Adjustment 4
4
42 Serial diagnostic -SD 5
5
52 Coding 5
6
61 Operating principle of the diagnostic LEDs 6
7
72 Maintenance 8
8
81 Disassembly 8
82 Disposal 8
9
92 Wiring examples 9
10 EU Declaration of conformity
1. About this document
1.1 Function
This operating instructions manual provides all the information you
need for the mounting, set-up and commissioning to ensure the safe
operation and disassembly of the safety switchgear The operating
instructions must be available in a legible condition and a complete
version in the vicinity of the device
1.2 Target group: authorised qualified personnel
All operations described in this operating instructions manual must
be carried out by trained specialist personnel, authorised by the plant
operator only
Please make sure that you have read and understood these operating
instructions and that you know all applicable legislations regarding
occupational safety and accident prevention prior to installation and
putting the component into operation
The machine builder must carefully select the harmonised standards
to be complied with as well as other technical specifications for the
selection, mounting and integration of the components
1.3 Explanation of the symbols used
Information, hint, note:
This symbol is used for identifying useful additional
information
Caution: Failure to comply with this warning notice could
lead to failures or malfunctions
Warning: Failure to comply with this warning notice could
lead to physical injury and/or damage to the machine
1.4 Appropriate use
The products described in these operating instructions are developed to
execute safety-related functions as part of an entire plant or machine It
is the responsibility of the manufacturer of a machine or plant to ensure
the correct functionality of the entire machine or plant
The safety switchgear must be exclusively used in accordance with
the versions listed below or for the applications authorised by the
manufacturer Detailed information regarding the range of applications
can be found in the chapter "Product description"
1.5 General safety instructions
The user must observe the safety instructions in this operating
instructions manual, labelled with the caution or warning symbol above,
the country-specific installation standards as well as all prevailing safety
regulations and accident prevention rules
Further technical information can be found in the Schmersal
catalogues or in the online catalogue on the Internet:
wwwschmersalnet
EN
RSS 36
1
Advertisement
Table of Contents
Related Manuals for schmersal RSS 36
Summary of Contents for schmersal RSS 36
-
Page 1: Table Of Contents
61 Operating principle of the diagnostic LEDs 6 Further technical information can be found in the Schmersal 62 Operating principle of the electronic diagnostic output 6... -
Page 2: 16 Warning About Misuse 2
2.1 Ordering code the line loss Series-wiring of up to 31 RSS 36 … SD components with This operating instructions manual applies to the following types: serial diagnostics is possible... -
Page 3: 26 Safety Classification 3
Operating instructions Safety sensor RSS 36 Switching distances to IEC 60947-5-3: This device complies with part 15 of the FCC Rules and Typical switching distance s 12 mm Industry Canada license-exempt RSS standard(s) Assured switching distance s 10 mm Operation is subject to the following two conditions:... - Page 4 Operating instructions Safety sensor RSS 36 Switching distances in Actuator Actuator mm to IEC 60947-5-3 RST V2 Sensor Sensor RSS V2 With the combination of "old sensor – new actuator (V2)" there may be limitations in availability owing to the reduced s...
-
Page 5: Electrical Connection
After fault rectification, the error message is reset by opening and Information for the selection of suitable safety-monitoring re-closing the corresponding safety guard The safety outputs enable modules can be found in the Schmersal catalogues or in the and allow a restart online catalogue on the Internet: wwwschmersalnet... -
Page 6: Diagnostic Functions
Operating instructions Safety sensor RSS 36 6. Diagnostic functions 6.2 Operating principle of the electronic diagnostic output A diagnostic output additionally indicates the operating condition 6.1 Operating principle of the diagnostic LEDs (refer to table 1) These signals can be used in a downstream control... -
Page 7: 63 Safety-Sensors With Serial Diagnostic Function 7
PLC The necessary software for the integration of the rectification cannot be detected sooner SD-Gateway is available for download at wwwschmersalnet Error warning The response data and the diagnostic data are automatically and... -
Page 8: Set-Up And Maintenance
Damaged or defective components must be replaced. 9. Appendix 9.1 Wiring configuration and connector accessories Function safety switchgear Pin configuration of Colour codes of the Schmersal Poss. colour codes the connector connectors of other customary connectors... - Page 9 Wiring example 1: Series-wiring of the RSS 36 with conventional diagnostic output The voltage is supplied to both safety inputs of the last safety sensor of the chain (considered from the safety-monitoring module) The safety...
-
Page 10: Rss
Safety sensor RSS 36 EU Declaration of conformity EU Declaration of conformity Original KA Schmersal GmbH & Co KG Möddinghofe 30 42279 Wuppertal Germany Internet: wwwschmersalcom We hereby certify that the hereafter described components both in their basic design and construction conform...
