24v-500W
User Manual
500W 24v INVERTER
Rev. 3.2

Advertisement

loading
Need help?

Need help?

Do you have a question about the Enerdrive ePOWER EN1105S-24V and is the answer not in the manual?

Questions and answers

Summary of Contents for Dometic Enerdrive ePOWER EN1105S-24V

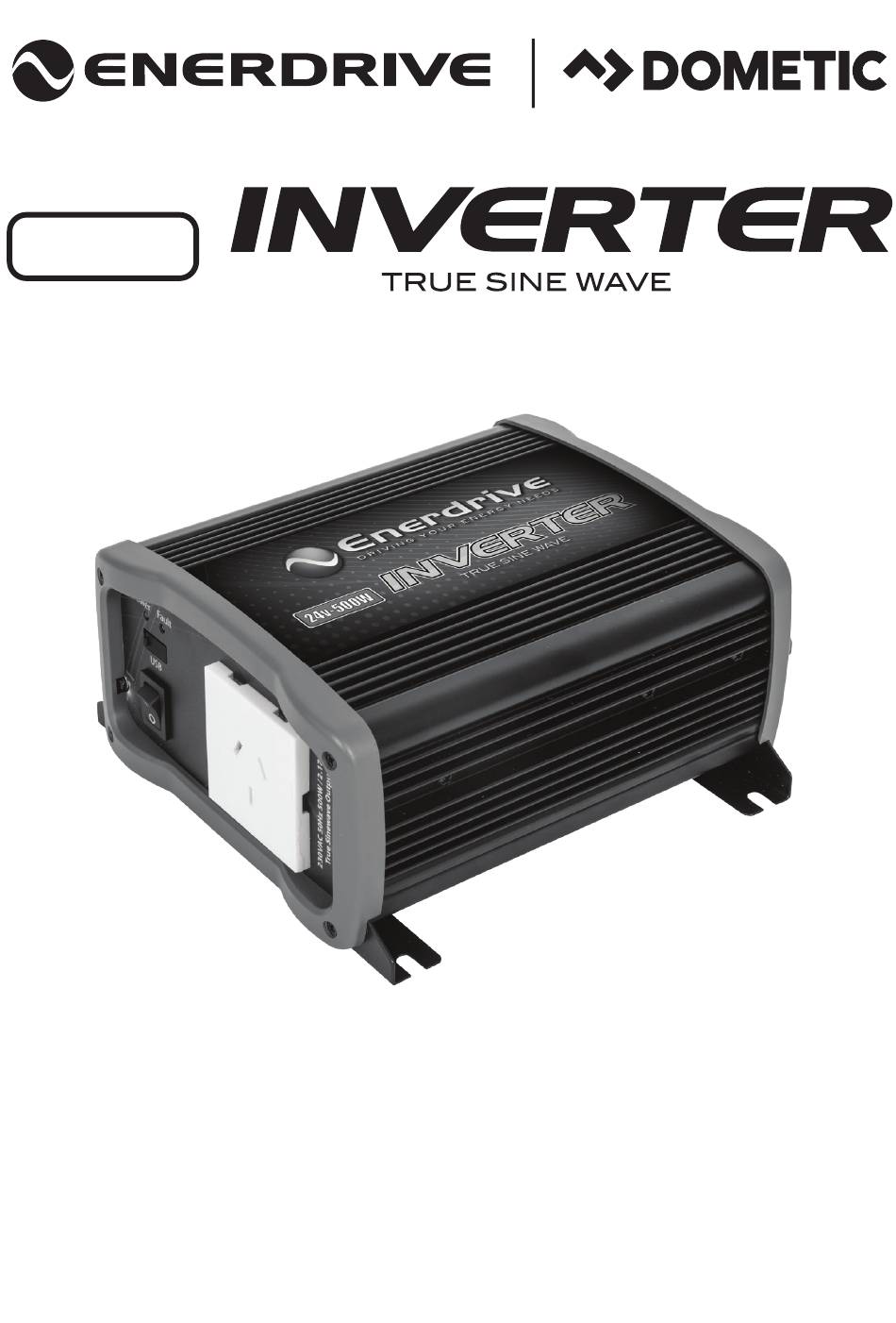

  • Page 1 24v-500W User Manual 500W 24v INVERTER Rev. 3.2...
  • Page 2 Enerdrive Inverter owner’s manual © 2023 Enerdrive. All rights reserved. No part of this document may be reproduced in any form or disclosed to third parties without the express written permission of Dometic Power & Control (Enerdrive) Pty Ltd, P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178.
  • Page 3: Table Of Contents

    Table Of Contents 1. Introduction IMPORTANT SAFETY INFORMATION: 2. Product Description 3. Installation 4. Unit Operation 5. Trouble Shooting 6. Speci cations 7. Warranty Page 3...
  • Page 4: Introduction

    1. INTRODUCTION Thank you for purchasing the Enerdrive Inverter. With our state of the art, easy to use design, this product will o er you reliable service for providing AC power and 5V USB power for your home, boat, caravan, 4WD or commercial vehicle. The Enerdrive Inverter can run many AC powered appliances when you need AC power anywhere.
  • Page 5: Product Description

    LIMITATIONS OF USE Do not use in connection with life support systems or other medical equipment or devices. 2. PRODUCT DESCRIPTION The Enerdrive Inverter package includes the items list below. • Inverter base unit • Owner’s manual • DC Input cable accessories 3.
  • Page 6 Material Prepare for Installation Typical Wiring block diagram of the Enerdrive Inverter: Fuse or Disconnect Circuit Switch + Positive Loads Breaker AC Loads - Negative 24V Battery Bank Battery Bank: • The use of deep cycle battery is highly recommended for power inverter application •...
  • Page 7 Installing the Enerdrive Inverter System WARNING: Electrical Shock Hazard The unit ‘On/O ’ switch does not disconnect the DC power from the battery. Use the DC Disconnect Switch or disconnect the DC input cables connection to disconnect the DC power from the battery before working on any circuits connected to the unit.
  • Page 8: Unit Operation

    • Attach the red ring-type connector to the positive (+) DC terminal (red) on the inverter and connect the black ring type connector to the negative (-) DC terminal (black) on the inverter. • Tighten the nut on each DC terminal. •...
  • Page 9: Troubleshooting

    AC Load on Inverter Although the Inverter can provide high surge power up to two times the rated output power, some appliances may still trigger on the inverter protection system. A higher power inverter is required for those appliances. Estimate Run time on Load The following run times are an estimate based on using a 24V-60A battery bank for 24V systems.
  • Page 10: Speci Cations

    6. SPECIFICATIONS Speci cations Inverter EN1105S-24 AC Output Power 500 Watt AC Output Current 2.17A AC Output Voltage 230Vac 50Hz AC Output Waveform True Sinewave (<3% THD) DC Input Voltage 25.0 VDC No Load Current <0.5A <0.5A No Load Current (Power Save OFF) <0.1A No Load Current (Power Save ON) DC Operating Range...
  • Page 11: Warranty

    Dometic Power & Control (Enerdrive) Pty Ltd warrants that its Products will be free from defects in materials and workmanship (subject to limits, and in normal conditions, as described in the complete Enerdrive Warranty Policy) for up to 5 years from the date of purchase.
  • Page 12 ENERDRIVE Dometic Power & Control (Enerdrive) Pty Ltd P.O. Box 9159, Wynnum Plaza, Queensland, Australia 4178 Ph: 1300 851 535 / Fax: 07 3390 6911 Email: support@enerdrive.com.au Web: www.enerdrive.com.au...
