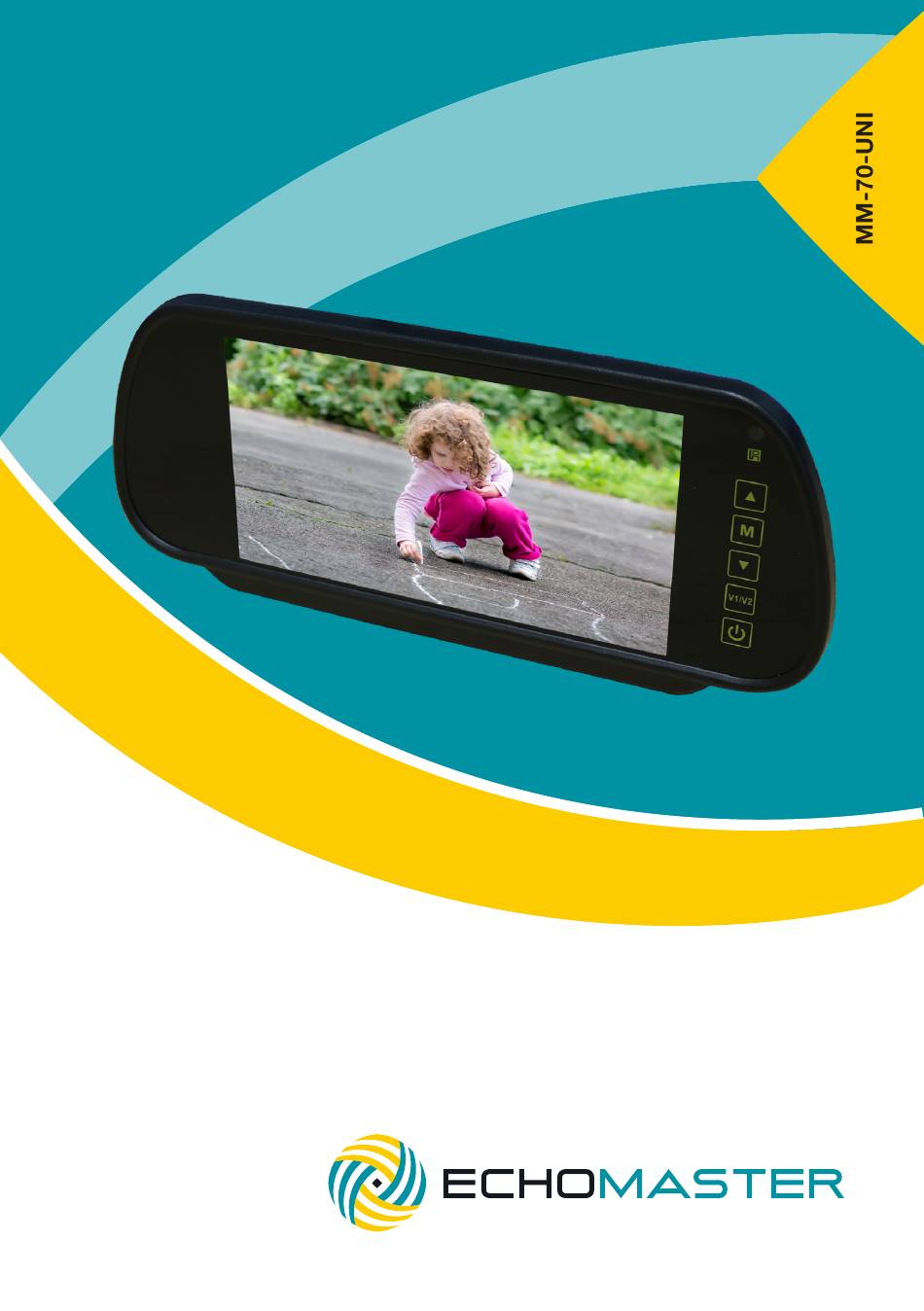

  • Page 1 7.0” Factory Mount Mirror Monitor User Manual...
  • Page 2 Introduction Thank you for purchasing your EchoMaster Automotive Monitor. EchoMaster mirror monitors are designed to improve safety by providing high quality images from camera inputs. This may help to improve vehicle maneuvering capabilities by displaying blind spots or areas not normally visible to the driver.
  • Page 3 Fitting Instructions The MM-70-UNI will replace your factory fitted rearview mirror. Remove the original mirror from the vehicle and replace with the MM-70-UNI. Once the unit is in place, run the connections cable across the headliner of the vehicle and down the A pillar.
  • Page 4 User Manual MONITORS I MM-70-UNI Operating Instructions (continued) Power On/Off Switch Video Sources AV1/AV2 Increase Brightness, Contrast, Colour, etc Menu Options Mode Select Decrease Brightness, Contrast, Colour, etc Wiring Diagram (Red) +12V Ignition (Black) Reverse Trigger (Green) Video Input Reverse Camera Input +44(0)1420 487110 echomaster@aampglobal-eu.com...
  • Page 5 User Manual MONITORS I MM-70-UNI Dimensions 23.4 108.4 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchomasterEurope.co.uk...
  • Page 6 User Manual MONITORS I MM-70-UNI Specification Screen Size 7.0" Aspect Ratio Wide Angle Power Supply 9-15V DC Resolution (RGB) 800 x 480 Luminance Contrast 350:1 TV Format NTSC/PAL OSD Languages Multi Video Inputs Audio Inputs Triggers Current Draw 254mA Operating Temperature 20°C - 65°C...
  • Page 7 User Manual MONITORS I MM-70-UNI +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchomasterEurope.co.uk...
  • Page 8 +44(0)1420 487110 echomaster@aampglobal-eu.com W: EchomasterEurope.co.uk EchoMaster is a brand of AAMP Global Woolmer Way, Bordon, Hampshire, GU35 9QE aampglobal-eu.com...
