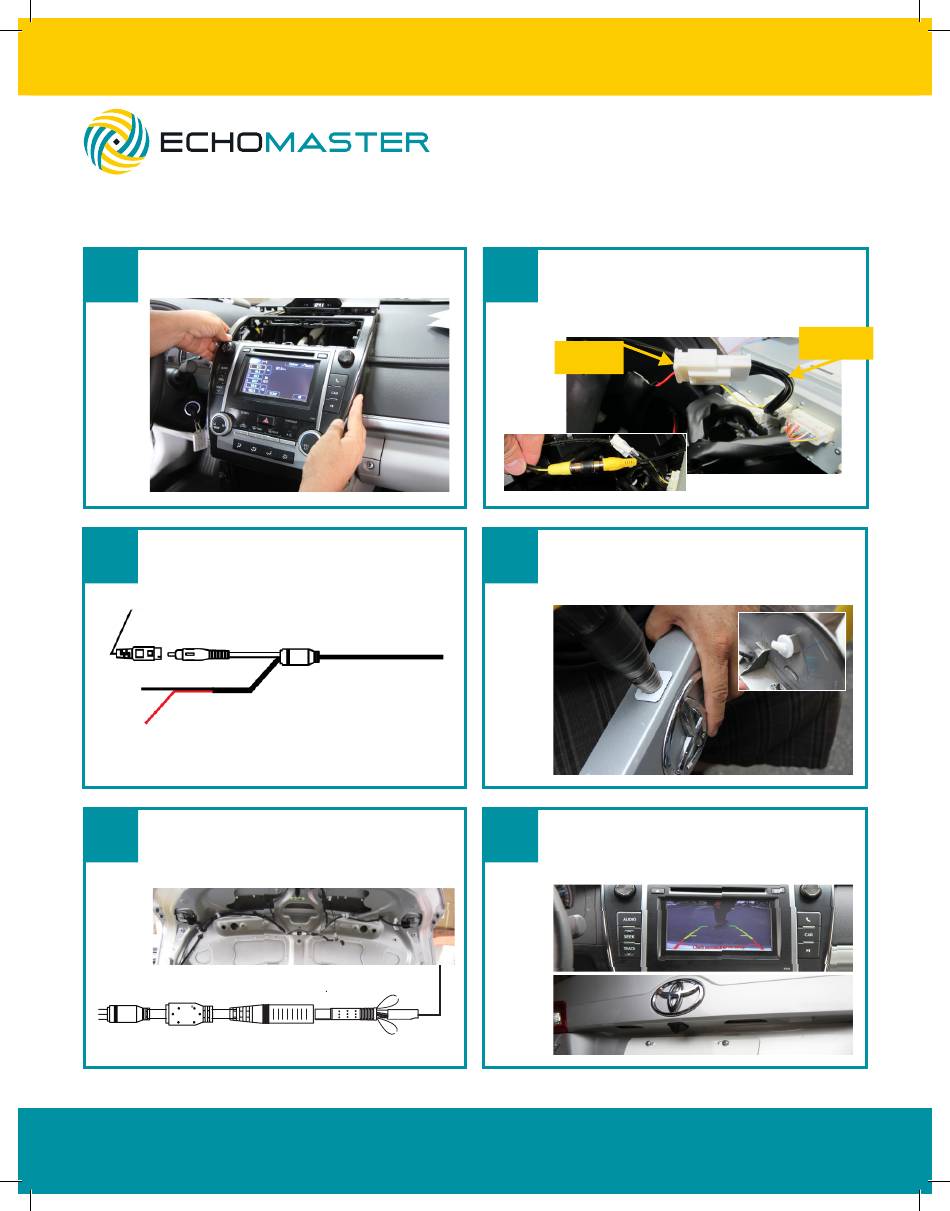

Installation Guide
Installation Guide
1
Remove radio / multi-media assembly.
3
A. Connect camera Red wire to suitable
ACC or IGN +12V. Ground camera Black
wire.
Camera Cable
GND
+12V
ACC/IGN
B. Route camera cable to rear of vehicle.
5
Connect the camera cable to the camera.
Program optional Parking Lines and/or
Image Flip.
Green Wire (Parking Lines)
White Wire (Image Flip)
1
email - support@aampglobal.com (US)
tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast)
email - technical.eu@aampglobal.com (Europe)
Factory Connect Camera System:
Toyota
All Models equipped with 6.1" Screen
NOTES:
Camera must be connected to ACC
or IGN not reverse trigger.
2
Unplug factory 16 pin plug and plug into female
end of T-Harness. Plug male end of harness into
rear of radio. Connect camera RCA cable to
T-Harness.
EXISTING
PLUG
4
Use foam gasket to determine camera
mounting location. Drill a 19mm hole, mount
camera and secure with nut.
6
Check installation by putting vehicle in reverse to
make sure image is correct. Reassemble all parts
of the vehicle to complete installation.
FC-TOYO
16 PIN
CONNECTOR
Advertisement
Related Manuals for Echomaster FC-TOYO
Summary of Contents for Echomaster FC-TOYO
- Page 1 Installation Guide Installation Guide FC-TOYO Factory Connect Camera System: Toyota All Models equipped with 6.1” Screen Remove radio / multi-media assembly. Unplug factory 16 pin plug and plug into female end of T-Harness. Plug male end of harness into rear of radio. Connect camera RCA cable to T-Harness.
- Page 2 On some 2013 model year Toyotas, reverse trigger is not present at radio. You must add a pin to the 28 pin plug located next to the 16 pin plug provided by EchoMaster. The pin will go in Pin# 2 located on the top row second pin from right (see diagram provided). Insert pin provided and connect to positive 12 volt reverse.
