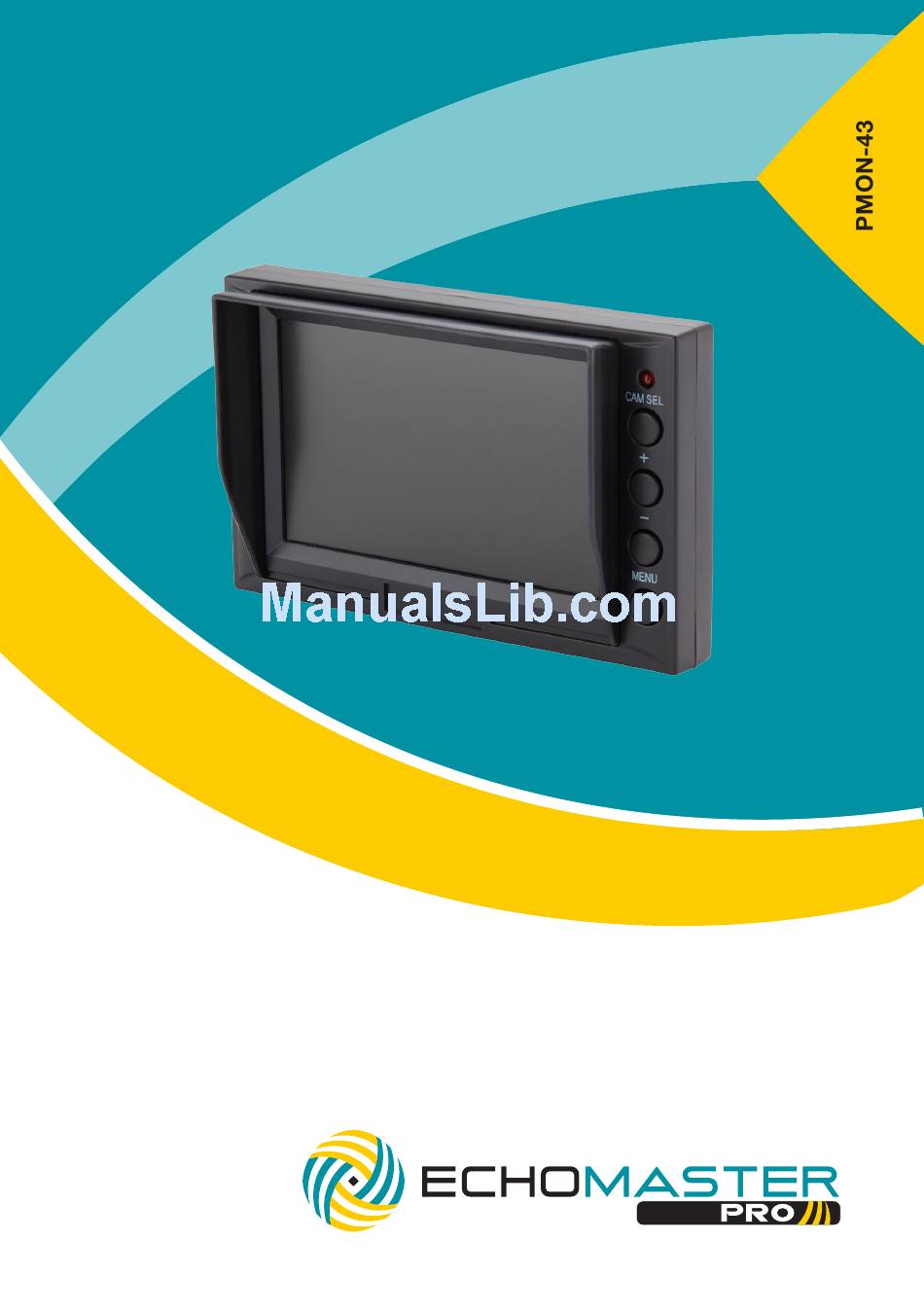

- Page 1 4.3” Windshield Mount Dual Input Monitor User Manual...
-
Page 2: Box Contents
4.3” Windshield Mount Dual Input Monitor Introduction Thank you for purchasing your EchoMaster Pro automotive monitor. Your monitor displays a clear, high resolution image of the area surrounding your vehicle, meaning your maneuvering and vehicle aware- ness will be greatly improved. -
Page 3: Fitting Instructions
Installation Guide PMON-43 4.3” Windshield Mount Dual Input Monitor Fitting Instructions Choose a mounting location on the windshield that will not obscure the driver’s view. Please ensure that the unit is not mounted in a location that will obstruct the operation of any airbags. -
Page 4: Wiring Diagram
Installation Guide PMON-43 4.3” Windshield Mount Dual Input Monitor Operating Instructions (continued) Menu The Menu functions can be adjusted using the + and – buttons on the monitor. Contrast: Adjust the contrast of the screen between 0 and 30. Brightness: Adjust the brightness level of the screen between 0 and 30. -
Page 5: Dimensions (Mm)
Installation Guide PMON-43 4.3” Windshield Mount Dual Input Monitor Pin Out VIDEO POWER +12V Dimensions (mm) 130mm 5.12in 41.70mm 1.64in email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe) -
Page 6: Specifications
Installation Guide PMON-43 4.3” Windshield Mount Dual Input Monitor Specifications PMON-43 Screen Size 4.3” Aspect Ratio 16:9 Power Supply 12-24V DC Resolution 391 x 680 Luminance Contrast 500:1 TV Format AUTO OSD Languages Multi Video Inputs Audio Inputs Triggers Current Draw... - Page 7 Installation Guide PMON-43 4.3” Windshield Mount Dual Input Monitor email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2790 (West Coast) email - technical.eu@aampglobal.com (Europe)
- Page 8 Woolmer Way, Bordon, Hampshire, United Kingdom email - support@aampglobal.com (US) tel - 1-800-477-2267 (East Coast) - 1-888-883-2760 (West Coast) email - technical.eu@aampglobal.com (Europe) tel - +44(0)1420 487110 (Sales) - +44(0)1420 470618 (Technical) EchoMaster is a Power Brand of AAMP Global. EchoMaster.com REV 250717...
