BLACK NOISE Dual Rectifier II - S User Manual

Table of Contents

Need help?

Do you have a question about the Dual Rectifier II - S and is the answer not in the manual?

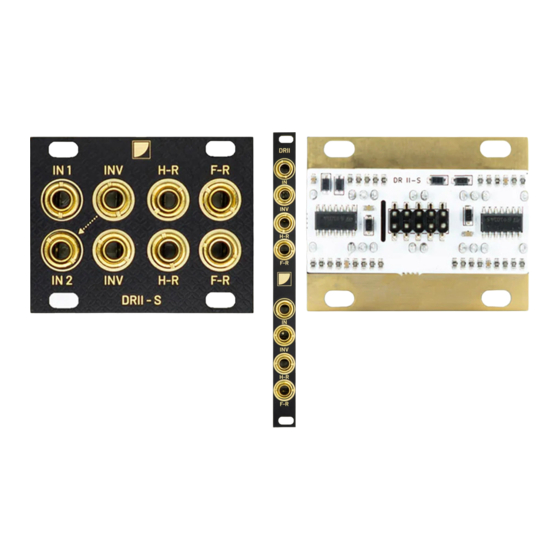

Page 2 Thank you for purchasing Dual Rectifier II - S module. Dual Rectifier II - S as the name suggests is our upgrade to our Dual Rectifier II in 1U. We listened to you and we improved our Dual Rectifier while keeping what made it successful.
Page 3: General Specifications
RMA and details. Any contact@blacknoisemdodular.com unsolicited parcel will be rejected and or returned. The postage to our workshop is on the customer. The return of your module is on us. BLACK NOISE can not take any responsability for damages caused during transport.
Page 4 Dual Rectiﬁer II - S Overview Input 1 Inverted 1 Half-rectified 1 Signal send thru input 1 will be processed by the upper Inverted copy of input 1. Signal from input 1 below 0V will be remove. section of the module. Full-rectified 1 Input 2 Inverted 2...
Page 5: Patch Ideas
Dual Rectiﬁer II - S Patch Ideas Complex Warveform/CV generator Envelope Follower Triangle frequency doubler INPUT waveform 1 AUDIO Triangle OUTPUT 1 HALF-RECTIFIED OUTPUT 1 OUTPUT 1 DOUBLED FULL-RECTIFIED FREQUENCY INPUT SLEW OUTPUT MIXER COMPLEX waveform 2 WAVEFORM OUTPUT ENVELOPE FOLLOWER OUTPUT 2 HALF-RECTIFIED...
Page 6 Dual Rectiﬁer II - S Patch Ideas Distorsion Ring Mod as VCA Clock doubler INPUT INPUT VCA CV HIGHPASS FILTER OUTPUT HALF OR FULL RECTIFIED INPUT Depending OUTPUT 1 the color you OUTPUT SQUARE CLOCK looking for FULL-RECTIFIED VCO/LFO DOUBLER INPUT INPUT INPUT...
