BLACK NOISE QBI User Manual

Table of Contents

Need help?

Do you have a question about the QBI and is the answer not in the manual?

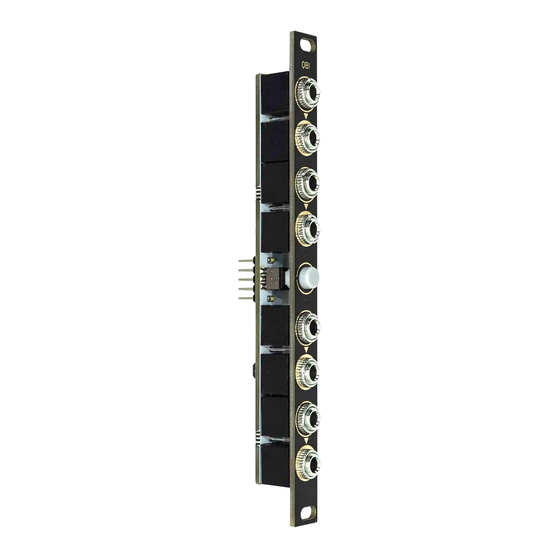

Page 2 Introduction Thank you Thank you for purchasing QBI module. The idea behind QBI is to fulfill two fundamental functions when patching: -Duplicate a signal -Invert a signal These are two basic yet important and essential functions when patching. But even though they are important, we wanted them to take up as little space as possible.
Page 3 : contact@blacknoisemdodular.com unsolicited parcel will be rejected and or returned. The postage to our workshop is on the customer. The return of your module is on us. BLACK NOISE can not take any responsability for damages caused during transport.
Page 4 B, C and D will be an inverted or non-inverted copy of input 1 when no jack is connected to the respective inputs. You can therefore use QBI as buffered multiples or OUTPUT 2 inverted buffered mutliples and disconnect one or more sections to use them as inverted for a different signal.
Page 5 Patch Ideas Quad Inverter Buffered Multiples Inverted Buffered Mult INPUT INPUT INPUT 1 OUTPUT 1 OUTPUT 1 OUTPUT 1 INVERTED INVERTED INVERTED INPUT 2 OUTPUT 2 OUTPUT 2 OUTPUT 2 NON -INVERTED INVERTED INVERTED Set the module to Set the module to When the module is non-inverted buffer non-inverted buffer...
