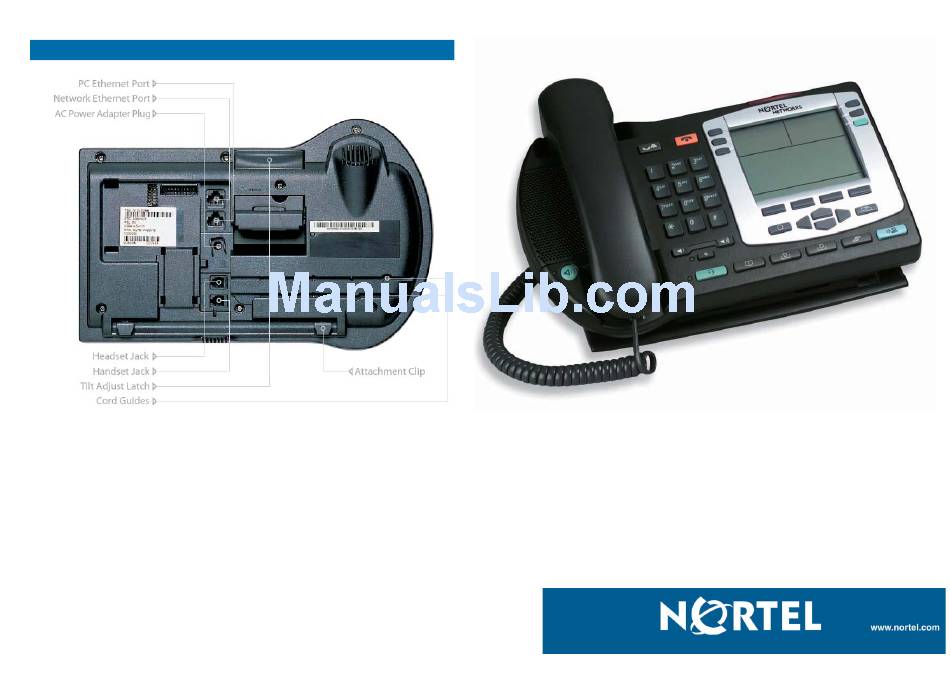

IP Phone 2004 - Connections

IP Phone 2004 Emissions Statement
This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This
equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at their own expense.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada
Use only with Nortel Networks apprived Limited Power Source; output rated 16 VAC, 500 mA, 50/60 Hz, OR, via supported Power over LAN
options, including IEEE 802.3af standard power.
Caution :
Severe damage to your IP Phone 2004 will occur if this set is plugged into an ISDN connection. Consult your system
administrator to ensure that you are plugging your set into a 10/100 Base-T Ethernet Jack. It is recommended that this unit not be
exposed to direct sunlight for a prolonged period of time.
Warning :
The earpiece/mouthpiece region on the handset may attract and retain small objects.
Document Number: NN43117-110
Document Version: Standard 01.02
Date: June 2007
Copyright© 2007 NortelNetworks. All rights reserved.
* Nortel, theNortel logo, and the Globemark aretrademarks ofNortelNetworks.
To provide feedback, or report a problem in this document go to www.nortel.com/document feedback.
.
The IP Phone 2004

Getting Started

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nortel 2004

Summary of Contents for Nortel 2004

  • Page 1 Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada Use only with Nortel Networks apprived Limited Power Source; output rated 16 VAC, 500 mA, 50/60 Hz, OR, via supported Power over LAN options, including IEEE 802.3af standard power.
  • Page 2 Refer to figure 1. Note : Step 3 : The IP Phone 2004 supports both AC power and Power over Connect the Ethernet cable to the RJ-45 connector LAN options, including IEEE 802.3af standard power. To use marked Network. Whe using AC power adapters, local AC power using an optional AC adapter, country connect to the AC jack on the bottom of the phone.
