Nortel 2002 Get Started

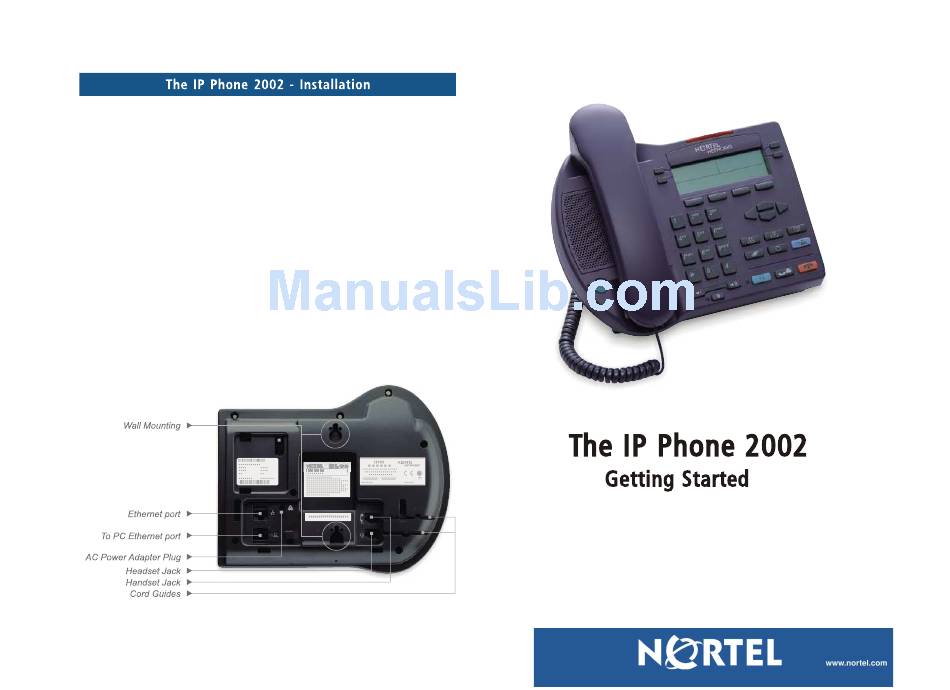

Connecting the IP Phone 2002

Follow these steps to connect the IP Phone 2002:
Step 1:
Connect one end of the handset cord to the handset
jack on the telephone base and connect the other
end of the handset cord to the handset. Route the
cord through the cord guide.
Step 2:
Attach the stand by engaging the tabs at the front of
the stand first.
Step 3:
Connect one end of the line cord (CAT-5 cable) to
the Ethemet port on the telephone base and
connect the other end of the line cord to the LAN via
an Ethernet connection.
Step 4:
If the phone is on a LAN-powered enabled
network*, follow the prompts that appear on the
screen to finish your set up. Your system adminim-
tor should provide you with the correct information
to enter, if required.
Step 5:
If LAN Power is not available, plug the optional AC
Power Adapter into the base of the telephone, and
plug the adapter into the nearest power outlet.
Country specific AC power adapters are separately
orderable.
To provide feedback or report a problem in this document, go to
www.nortel.com/documentfeedback.
Copyright © 2007 Nortel Networks.
All rights reserved.
* Nortel, the Nortel logo, and the Globemark are trademarks of Nortel Networks.
Note
The IP Phone 2002 supports both AC power and
Power over LAN options. To use local AC power
using an optional AC adapter. Country specific AC
adapters are separately orderable.* To use Power
over LAN, the LAN infrastructure must provide
power over LAN wiring. The IP Phone 2002
supports Power over LAN in most powered LAN
configurations, induding standard IEEE 802.3af
compliant LAN powering. Before installing the IP Phone
2002, consult with your system administrator as to the
preferred powering option.

Wall Mounting

To wall mount the IP Phone 2002, discard the stand and
use the wall mounting holes on the telephone base.
Note
It is recommended that this unit not be exposed to direct
sunlight for a prolonged period of time.
Caution
Severe damage to your IP Phone 2002 will occur if this set
is plugged into an ISDN connection. Consult your system
administrator to ensure that you are plugging your set into
a 10/100 Base-T Ethernet Jack.
Document Number: NN43116-110
Document Version: Standard 01.02
Date: June 2007
