The multi-sensor PST08 has PIR, temperature and light sensors
function in one, based on Zigbee 3.0 technology. ZigBee is the only
open, global wireless standard to provide the foundation for the
Internet of Things by enabling simple and smart objects to work
together, improving comfort and efficiency in everyday life.
Warning:
lost network will cause the battery to continue to consume
power.
When the device power on, the device will check is it already adding to
the network? If does, but can't handshake, the device will try to link
with zigbee network every minute. After 6 times, the device LED will
flash in every second and continue 30 seconds.
The cycle will not stop until join the network.
This will cause the battery to continue to consume power.

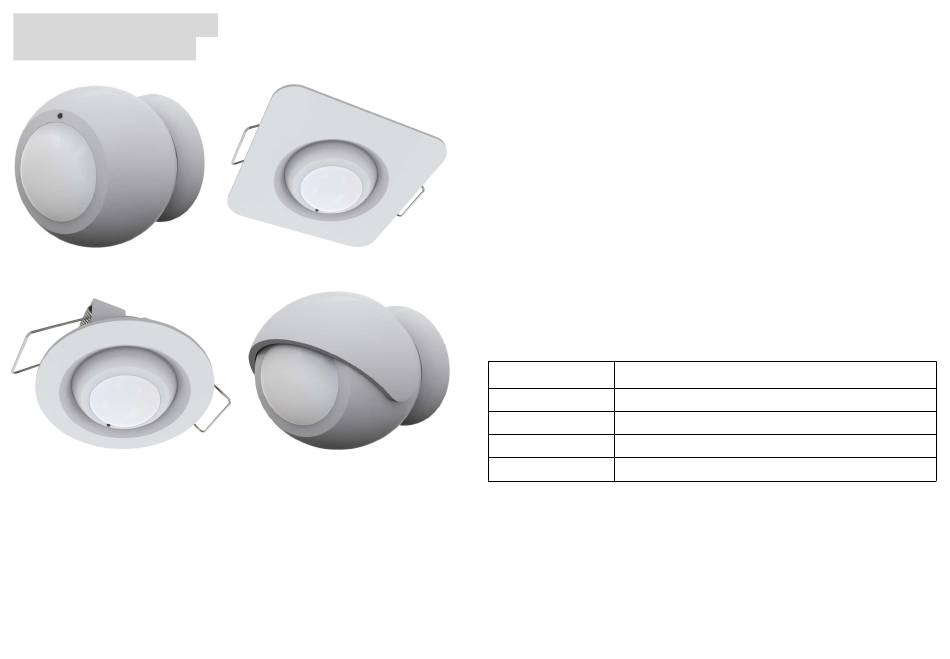

Function Compare A/B/C/D
Model
Description
PST08-A
Wall mount
PST08-B

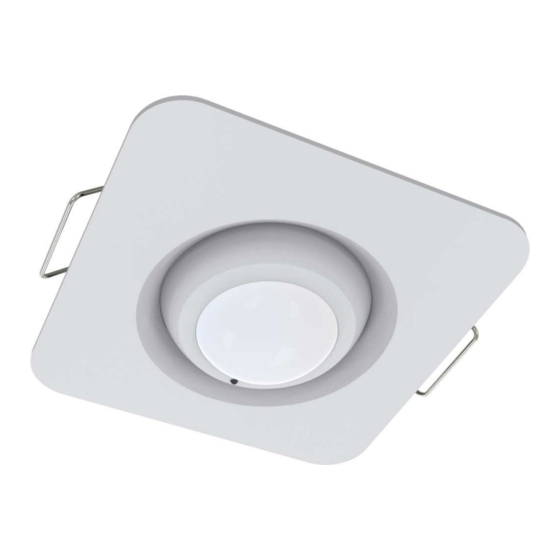

Ceiling mount with Square shape
PST08-C
Ceiling mount with Round shape
PST08-D
Wall mount with lens cover
Advertisement
Table of Contents
Related Manuals for Philio Technology Corporation PST08-A
Summary of Contents for Philio Technology Corporation PST08-A
- Page 1 When the device power on, the device will check is it already adding to the network? If does, but can't handshake, the device will try to link with zigbee network every minute. After 6 times, the device LED will PST08-A PST08-B flash in every second and continue 30 seconds.
-
Page 2: Specification
RF Maximum Power +8dBm PIR, temperature and light Function sensor Temperature Sending Range -10 to 40° C Dimension 89*83*62 91.4g (PST08-A), Weight 96.0g (PST08-D) IP classification IPX4 Operation temperature -10 to 40° C Marking Specifications are subject to change and improvement overview without notice. - Page 3 Zigbee Message Report Add to/Reset to default from Zigbee Network * Motion Report: When the PIR motion detected, the device will unsolicited to send the There are one tamper key in the device. Can joining network, reset “Zone Status Change Notification” to the CIE. from Zigbee network.
- Page 4 Attribute ID : 0x0000 Cluster ID : 0x0402 Endpoint : 0x03 Attribute ID : 0x0000 DataType : 29 Endpoint : 0x03 DataType : 29 minReportTime : 0x0001 (seconds between reports ) 0xFFFF (stop report) * Illumination Report: maxReportTime : 0x0001 (seconds between reports ) When the illumination defferential over 5 percent, the device will 0xFFFF (stop report) unsolicited to send the “Zone Status Change Notification”...
-
Page 5: Power Up Procedure
* PIR Warm Up When the power on, the PIR need to warm up before operation. The Attribute Bit Meaning Values warm up time about 1 minute, the LED will flash in every 2 seconds. Number After finish the procedure the LED will light ON three times. Alarm1 1 –... -
Page 6: Operation Mode
Operation Mode Choosing a Suitable Location There are two operation modes of the device. The user can choosing 1. The recommended mounting height is 160cm the suitable mode for application. 2. Don't let the device facing the window or the sunlight. 3. -
Page 7: Fcc Interference Statement
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Philio Technology Corporation 8F.,No.653-2,Zhongzheng Rd., Xinzhuang Dist., New Taipei City 24257,Taiwan(R.O.C) www.philio-tech.com... - Page 8 Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from • 警 警 警 警 語 語 語 語 : : : : that to which the receiver is connected.
