Philio Technology Corporation PSM08 Manual

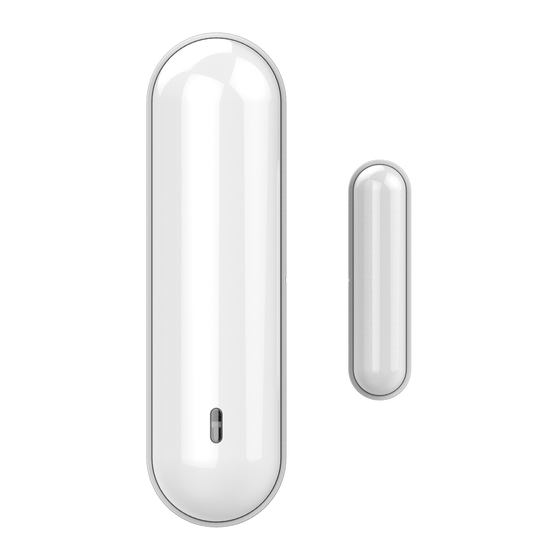

Door/Window Sensor PSM08
The door/window sensor PSM08 has door/window sensor function,
TM
based on Z-Wave technology.
This device is a Security Enabled Z-Wave Plus Product. Z-Wave
wireless communication protocol designed for home automation,
specifically to remotely control applications in residential and light
commercial environments. The technology uses a low-power RF radio
embedded or retrofitted into home electronics devices and systems,
such as lighting, home access control, entertainment systems and
household appliances.
This product can be included and operated in any Z-Wave
TM
with other Z-Wave certified devices from other manufacturers and/or
other applications. All non-battery operated nodes within the network
will act as repeaters regardless of vendor to increase reliability of the
network.
The device adopt the Z-Wave
network system is all made by Z-Wave
network system will have the advantages as below.
TM
500 series chip, when your Z-Wave
TM
500 series devices. The
Concurrent multi-channel support reduces external interference.
•
Better RF range, improve about 10 meters in indoor.
•
Support 100 Kbps transmit speed, speed up communication.
•
Specification
Power
RF distance
RF Frequency
RF Maximum Power
Location
Operation temperature -10
Humidity
TM
is a
FCC ID
Specifications are subject to change and improvement without
notice.
Troubleshooting
Symptom
TM
network
The device can not
join to Z-Wave™
network
TM
1
3VDC (CR123A lithium battery)
Min. 40M indoor,
100M outdoor line of sight,
868.40 MHz, 869.85 MHz(EU)
908.40 MHz, 916.00 MHz(US)
920.9MHz, 921.7MHz, 923.1MHz
(TW/KR/Thai/SG)
+5dBm
indoor use only
o o
C to 40 C
85%RH max
RHHPSM08
Cause of Failure Recommendation
The device may in
Exclude the device then
a Z-Wave™
include again.
network.
