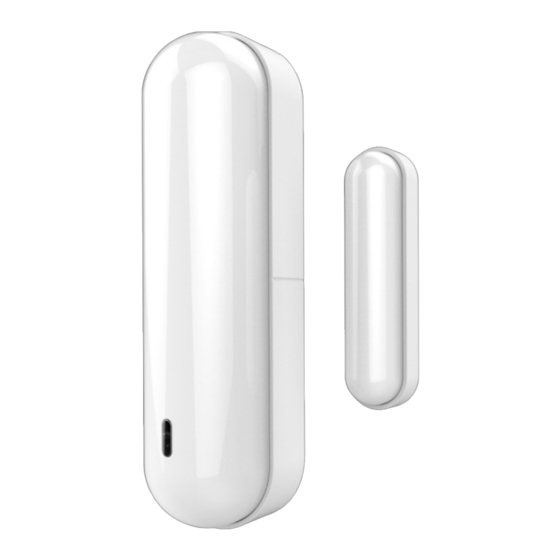

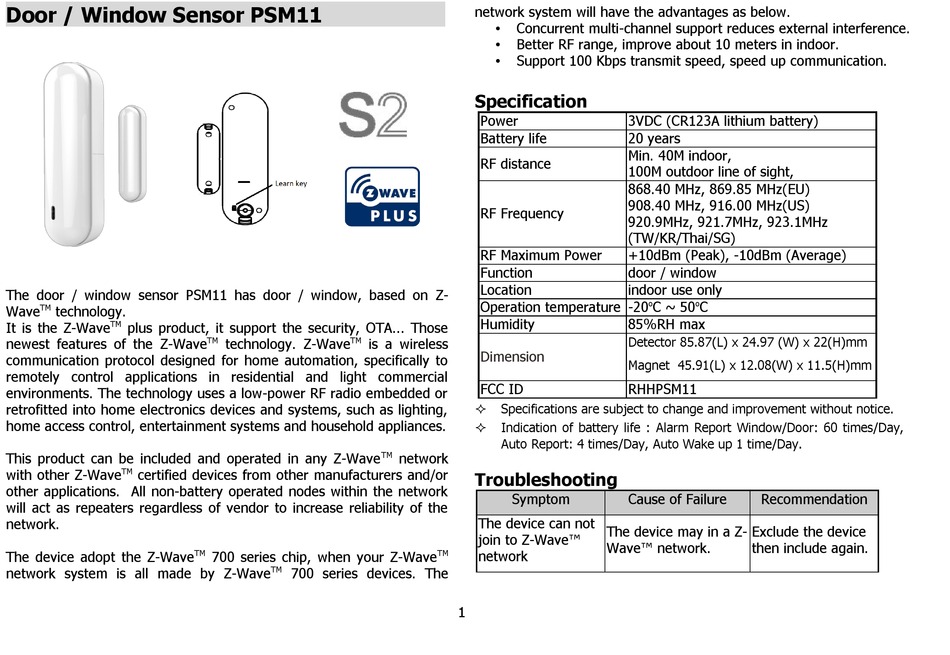

Door / Window Sensor PSM11
The door / window sensor PSM11 has door / window, based on Z-
Wave
TM
technology.
It is the Z-Wave
TM
plus product, it support the security, OTA... Those
newest features of the Z-Wave
communication protocol designed for home automation, specifically to
remotely control applications in residential and light commercial
environments. The technology uses a low-power RF radio embedded or
retrofitted into home electronics devices and systems, such as lighting,
home access control, entertainment systems and household appliances.
This product can be included and operated in any Z-Wave
with other Z-Wave
TM
certified devices from other manufacturers and/or
other applications. All non-battery operated nodes within the network
will act as repeaters regardless of vendor to increase reliability of the
network.
The device adopt the Z-Wave
network system is all made by Z-Wave
TM
technology. Z-Wave
TM
TM
700 series chip, when your Z-Wave
TM
700 series devices. The
network system will have the advantages as below.
Concurrent multi-channel support reduces external interference.
•
Better RF range, improve about 10 meters in indoor.
•
Support 100 Kbps transmit speed, speed up communication.
•
Specification
Power
Battery life
RF distance
RF Frequency
RF Maximum Power
Function
Location
Operation temperature -20
Humidity
is a wireless
Dimension
FCC ID
Specifications are subject to change and improvement without notice.
Indication of battery life : Alarm Report Window/Door: 60 times/Day,
Auto Report: 4 times/Day, Auto Wake up 1 time/Day.
TM
network
Troubleshooting
Symptom
The device can not
join to Z-Wave™
TM
network
1
3VDC (CR123A lithium battery)
20 years
Min. 40M indoor,
100M outdoor line of sight,
868.40 MHz, 869.85 MHz(EU)
908.40 MHz, 916.00 MHz(US)
920.9MHz, 921.7MHz, 923.1MHz
(TW/KR/Thai/SG)
+10dBm (Peak), -10dBm (Average)
door / window
indoor use only
o
C ~ 50
o
C
85%RH max
Detector 85.87(L) x 24.97 (W) x 22(H)mm
Magnet 45.91(L) x 12.08(W) x 11.5(H)mm
RHHPSM11
Cause of Failure
Recommendation
The device may in a Z-
Exclude the device
Wave™ network.
then include again.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSM11 and is the answer not in the manual?

Questions and answers

Related Manuals for Philio Technology Corporation PSM11

Summary of Contents for Philio Technology Corporation PSM11

  • Page 1 (TW/KR/Thai/SG) RF Maximum Power +10dBm (Peak), -10dBm (Average) Function door / window Location indoor use only The door / window sensor PSM11 has door / window, based on Z- Operation temperature -20 C ~ 50 Wave technology. Humidity 85%RH max It is the Z-Wave plus product, it support the security, OTA...
  • Page 2 For Instruction to http:// www.philio-tech.com Overview CAUTION – replacement of a battery with an incorrect type that can defeat a safeguard (for example, in the case of some lithium battery types); – disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;...

  • Page 3: Function Description

    ＊notice1:The QR code can be found on the device 2. Pressing the tamper key three times within 1.5 seconds to enter the inclusion mode. PSM11 or on the box. 3. After add successful, the LED will light ON 1 This machine provides two groups of nodes.

  • Page 4: Power Up Procedure

    Notice 1: Always RESET a Z-Wave device before trying to add it to a Z-Wave network ＊ Tamper Report: The tamper key pressed over 5 seconds. The device will into the alarm state. In that state, if the tamper key be released, the device will Z-Wave Notification unsolicited to send the report to the nodes in the group 1.

  • Page 5: Over The Air (Ota) Firmware Update

    ＊ Wake When the device power on, the device will wake about 20 seconds. In this duration, the controller can communicate with the device. Normally the device is always sleeping to save the battery energy. Over The Air (OTA) Firmware Update The device support the Z-Wave firmware update via OTA.

  • Page 6: Z-Wave Configuration Settings

    Z-Wave Configuration Settings Notice: ＊ All of the configuration, the data size is 1. ＊All of the configuration after the remove the setting still keep, don't reset to factory default. Unless the user execute the “RESET” procedure. ＊ The reserve bit or not supported bit is allowed any value, but no effect.

  • Page 7: Z-Wave Supported Command Class

    Security 2 None the product was purchased. They can take this product for environmental safe recycling. None Supervision Philio Technology Corporation Transport Service None 8F., No.653-2, Zhongzheng Rd., Xinzhuang Dist., New Taipei City Association Highest granted Security Class 24257, Taiwan(R.O.C) www.philio-tech.com...
  • Page 8 This equipment generates, uses, and can radiate radio frequency en- 前述合法通信，指依電信管理法規定作業之無線電通信。低功率射頻器材須忍受合 ergy and, if not installed and used in accordance with the instructions, 法通信或工業、科學及醫療用電波輻射性電機設備之干擾。」 may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
