Philio Technology Corporation PSM09 Quick Start Manual

PSM09-A/B

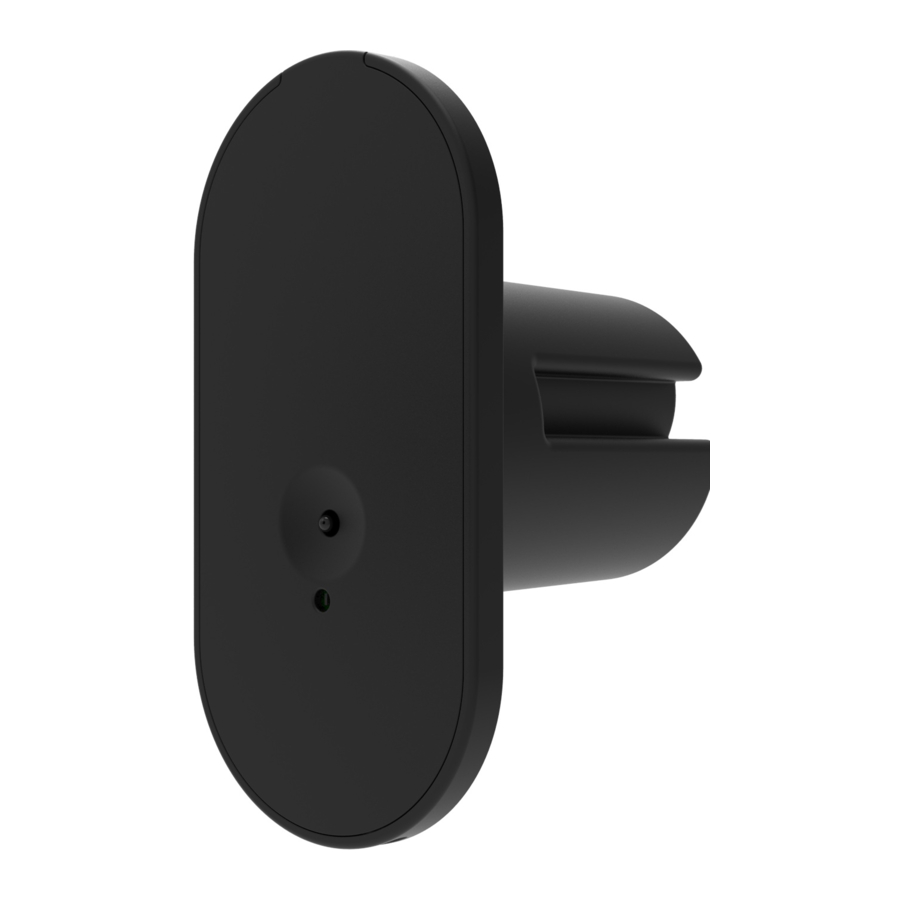

Recessed Door Sensor + Door lock Sensor
PSM09 is only for indoor using device.
PSM09 can detect the the door is open or not.
The Recessed door sensor PSM09 is Base on Z-Wave
It is the Z-Wave TM plus product, it support the security, OTA. Those newest
features of the Z-Wave TM technology. Z-Wave
communication protocol designed for home automation, specifically to
remotely control applications in residential and light commercial
environments. The technology uses a low-power RF radio embedded or
retrofitted into home electronics devices and systems, such as lighting,
home access control, entertainment systems and household appliances.
Notice: if user use some command, it have to check device is security
bootstrap otherwise some command cannot increment.
This device is a security enabled Z-Wave Plus product that is able to use
encrypted Z-Wave Plus messages to communicate to other security
enabled Z-Wave Plus products.
This device must be used in conjunction with a Security Enabled Z-Wave
Controller in order to fully utilize all implemented functions.
This product can be operated in any Z-Wave network with other Z-Wave
certified devices from other manufacturers. All non-battery operated
nodes within the network will act as repeaters regardless of vendor to
increase reliability of the network.
TM technology.
TM is a wireless
1
*The device is Security Enabled Z-Wave Plus Product
Function Compare A/B
Door Sensor
PSM09-A V
PSM09-B V
Add to/Remove from Z-Wave TM
There are one key in the device,the key is in the front side. Both of them can
add, remove, reset or association from Z-Wave
SmartStart enabled products can be added into a Z-Wave network by
scanning the Zwave QR Code present on the product providing SmartStart
inclusion. No further action is required and the SmartStart product will be
added automatically within 10 minutes in the network vicinity
Notice: Including a node ID allocated by Z-Wave
"Add" or "Inclusion". Excluding a node ID allocated by Z-Wave
Controller means "Remove" or "Exclusion".
Description
Function
1. Check Z-Wave
Pressing tamper key three times within 3 seconds to
Add
enter the inclusion mode.
If the learning code is successful, the LED will flash
slowly.
1. Check Z-Wave
Pressing tamper key three times within 3 seconds to
enter the exclusion mode.
Remove
If the removal is successful, the code light will flash for
30 seconds.
Node ID has been excluded.
Door lock Sensor
V
Network
TM network.
TM Controller means
TM Controller enter inclusion mode.
TM Controller enter exclusion mode.
TM
