LUCCI Air 209036 Installation Instructions

Installation Instructions
Thank you for purchasing this quality Lucci product. To ensure correct function and safety, please read and follow all
instructions carefully before assembly, installation and use of this product. Please keep instructions for future reference.

Warranty

•
This exhaust fan is covered by a 3 year warranty. The warranty is from date of purchase, not the date of installation.
•
Please retain proof of purchase for any warranty enquires.
•
Warranty will be void if there is any damage due to improper usage or modification to the fan.
•
Failure to comply with the instructions in this manual may increase the risk of damage or injury and will void warranty.

Installation Requirements

•
A licensed electrician is required to install this unit to the mains supply.
•
Before installation, check the installation location in the ceiling has access to a socket outlet which is connected to
a wall switch. If it does not, please contact a licensed electrician to arrange installation of the socket outlet and wall
switch before continuing.
•
All wiring and installation of the exhaust fan must adhere to the local council regulation and latest local and national
wiring rules, eg. AS/NZS 3000 electrical installations. If unsure, contact a licensed electrician.
•
This is a Class I product and must be earthed.
•
This product is suitable for indoor use only.
•
This product must be installed at least 2.1 m above the floor level.
•
Before cutting a hole in the ceiling, check that there are no ceiling joists, etc. or electrical wiring above the desired
mounting location.
•
The mounting point must be support at least 2 times of the weight of the product.
•
Ensure all the clearance values to the structural building element are maintained according to the clearance diagram
in Figure 7.
•
Do not install the exhaust fan in canopies over stoves etc., as excessive heat will damage the product.
•
This product is designed for installation in the flat ceiling only. Do not mount it on a sloping ceiling or a vertical wall.
•
Any duct (not included) attached to the product must be installed horizontally in the ceiling and with the same height
or lower than the exhaust fan.
•
Ensure the duct (not included) is not bent otherwise the performance will be reduced.
•
Where applicable, precautions must be taken to avoid the back-flow of gases into the room from the open flue of
gas or other fuel-burning appliances.
•
Do not allow any thermal insulation to cover any part of the rear of the appliance.
•
Ensure the thermal insulation does not obstruct the airflow.
•
There must be an adequate source of external air to ensure the rated performance.

Performance Notes

1. For exhaust fan optimum performance, volume of air being extracted should be equal to amount of air entering
the room. Air is drawn mostly from under a door, or an open window. If the bathroom or room is air tight (door and
windows shut), the exhaust will not perform well.
2. LED lighting of the appliance is designed to provide directional lighting only. While it may be sufficient for most
common tasks, others such as shaving or applying make-up may require additional lighting.
1 | P a g e

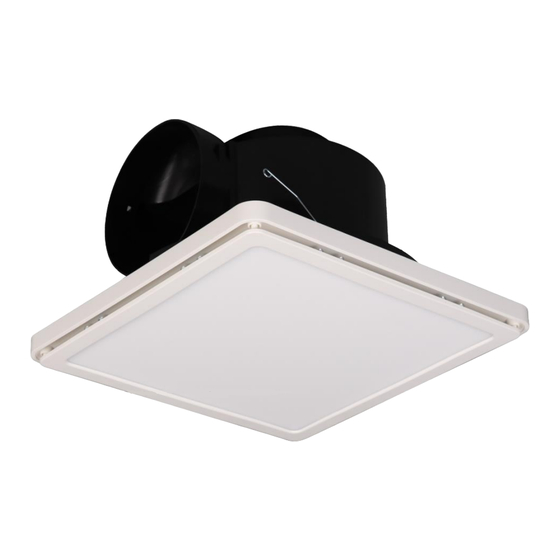

REEF EXHAUST FAN WITH LED LIGHT
SKU# 209036, 209037
Rated Voltage 220-240V~ 50Hz
v 1 . 0 ( 0 4 / 2 0 2 2 )
