Summary of Contents for ASROCK H310CM-HDV

  • Page 2 (including damages for loss of proits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
  • Page 3 You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. If you require assistance please call ASRock Tel : +886-2-28965588 ext.123 (Standard International call charges apply) he terms HDMI™...

  • Page 4: Table Of Contents

    Expansion Slots (PCI Express Slots) Onboard Headers and Connectors Chapter 3 Software and Utilities Operation Installing Drivers A-Tuning ASRock Live Update & APP Shop 3.3.1 UI Overview 3.3.2 Apps 3.3.3 BIOS & Drivers 3.3.4 Setting Chapter 4 UEFI SETUP UTILITY...
  • Page 5 Advanced Mode 4.3.1 UEFI Menu Bar 4.3.2 Navigation Keys Main Screen OC Tweaker Screen Advanced Screen 4.6.1 CPU Coniguration 4.6.2 Chipset Coniguration 4.6.3 Storage Coniguration 4.6.4 Super IO Coniguration 4.6.5 ACPI Coniguration 4.6.6 USB Coniguration 4.6.7 Trusted Computing Tools Hardware Health Event Monitoring Screen Security Screen 4.10 Boot Screen...

  • Page 6: Chapter 1 Introduction

    If you require technical support related to this mother- board, please visit our website for speciic information about the model you are using. You may ind the latest VGA cards and CPU support list on ASRock’s website as well. ASRock website http://www.asrock.com.

  • Page 7: Speciications

    1.2 Speciications Platform Micro ATX Form Factor Solid Capacitor design Supports 8 Generation Intel® Core Processors (Socket 1151) 4 Power Phase design Supports Intel® Turbo Boost 2.0 Technology Intel® H310 Chipset Memory Dual Channel DDR4 Memory Technology 2 x DDR4 DIMM Slots Supports DDR4 2666/2400/2133 non-ECC, un-bufered memory Max.
  • Page 8 H310CM-HDV / H310CM-DVS H310CM-HDV: hree graphics output options: D-Sub, DVI-D and HDMI * Supports up to 2 displays simultaneously Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max.
  • Page 9 2 x USB 3.1 Gen1 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone H310CM-HDV: 1 x D-Sub Port 1 x DVI-D Port 1 x HDMI Port...
  • Page 10 ErP/EuP ready (ErP/EuP ready power supply is required) * For detailed product information, please visit our website: http://www.asrock.com Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools.

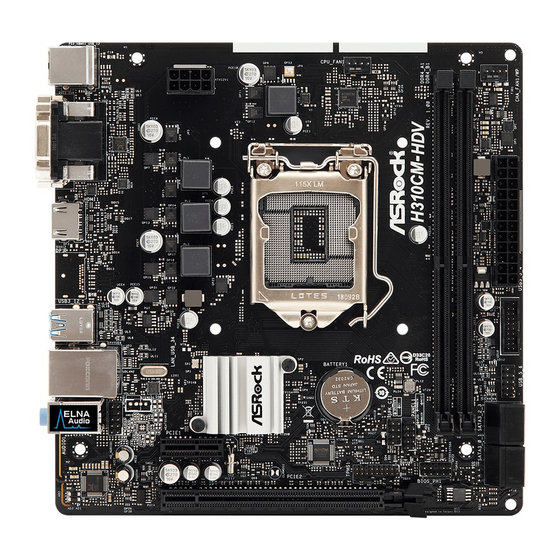

  • Page 11: Motherboard Layout

    1.3 Motherboard Layout H310CM-HDV: CPU_FAN1 CHA_FAN1/WP ATX12V1 USB 3.1 Gen1 T: USB1 B: USB2 RoHS USB 2.0 Intel Top: T: USB3 RJ-45 B: USB4 H310 CMOS Battery HD_AUDIO1 PCIE1 CLRCMOS1 TPMS1 AUDIO CODEC BIOS PCIE2...
  • Page 12 H310CM-HDV / H310CM-DVS H310CM-DVS: CPU_FAN1 CHA_FAN1/WP ATX12V1 USB 3.1 Gen1 T: USB1 B: USB2 RoHS USB 2.0 Intel Top: T: USB3 RJ-45 B: USB4 H310 CMOS Battery HD_AUDIO1 PCIE1 CLRCMOS1 TPMS1 AUDIO CODEC BIOS PCIE2...
  • Page 13 No. Description ATX 12V Power Connector (ATX12V1) CPU Fan Connector (CPU_FAN1) 2 x 288-pin DDR4 DIMM Slots (DDR4_A1, DDR4_B1) Chassis/Water Pump Fan (CHA_FAN1/WP) ATX Power Connector (ATXPWR1) USB 3.1 Gen1 Header (USB3_3_4) USB 2.0 Header (USB_5_6) SATA3 Connector (SATA3_2) SATA3 Connector (SATA3_3) SATA3 Connector (SATA3_0) SATA3 Connector (SATA3_1) System Panel Header (PANEL1)

  • Page 14: I/O Panel

    H310CM-HDV / H310CM-DVS 1.4 I/O Panel H310CM-HDV: No. Description No. Description USB 2.0 Ports (USB12) USB 2.0 Ports (USB_34) D-Sub Port USB 3.1 Gen1 Ports (USB3_12) LAN RJ-45 Port* HDMI Port Line In (Light Blue)** DVI-D Port Front Speaker (Lime)**...
  • Page 15 H310CM-DVS: No. Description No. Description USB 2.0 Ports (USB12) Microphone (Pink)** D-Sub Port USB 2.0 Ports (USB_34) LAN RJ-45 Port* USB 3.1 Gen1 Ports (USB3_12) Line In (Light Blue)** DVI-D Port Front Speaker (Lime)** PS/2 Keyboard/Mouse Port * here are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications. ACT/LINK LED SPEED LED LAN Port...
  • Page 16 H310CM-HDV / H310CM-DVS ** To conigure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi- channel audio feature through the audio driver. Please set Speaker Coniguration to “7.1 Speaker”in the Realtek HD Audio Manager.

  • Page 17: Chapter 2 Installation

    Chapter 2 Installation his is a Micro ATX form factor motherboard. Before you install the motherboard, study the coniguration of your chassis to ensure that the motherboard its into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 18: Installing The Cpu

    H310CM-HDV / H310CM-DVS 2.1 Installing the CPU 1. Before you insert the 1151-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found.
  • Page 20 H310CM-HDV / H310CM-DVS Please save and replace the cover if the processor is removed. he cover must be placed if you wish to return the motherboard for ater service.

  • Page 21: Installing The Cpu Fan And Heatsink

    2.2 Installing the CPU Fan and Heatsink...

  • Page 22: Installing Memory Modules (Dimm)

    H310CM-HDV / H310CM-DVS 2.3 Installing Memory Modules (DIMM) his motherboard provides two 288-pin DDR4 (Double Data Rate 4) DIMM slots, and supports Dual Channel Memory Technology. 1. For dual channel coniguration, you always need to install identical (the same brand, speed, size and chip-type) DDR4 DIMM pairs.

  • Page 24: Expansion Slots (Pci Express Slots)

    H310CM-HDV / H310CM-DVS 2.4 Expansion Slots (PCI Express Slots) here are 2 PCI Express slots on the motherboard. Before installing an expansion card, please make sure that the power supply is switched of or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.

  • Page 25: Onboard Headers And Connectors

    2.5 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard. System Panel Header Connect the power RESET# (9-pin PANEL1)
  • Page 26 H310CM-HDV / H310CM-DVS Chassis Intrusion and Please connect the DUMMY SPEAKER Speaker Header chassis intrusion and the DUMMY DUMMY SIGNAL (7-pin SPK_CI1) chassis speaker to this (see p.6, 7, No. 14) header. Serial ATA3 Connectors hese four SATA3 (SATA3_0: connectors support SATA see p.6, 7, No.
  • Page 27 Front Panel Audio Header his header is for OUT_RET OUT2_L J_SENSE (9-pin HD_AUDIO1) connecting audio devices MIC_RED OUT2_R PRESENCE# (see p.6, 7, No. 16) MIC2_R to the front audio panel. MIC2_L 1. High Deinition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly.
  • Page 28 H310CM-HDV / H310CM-DVS ATX 12V Power his motherboard Connector provides an 8-pin ATX (8-pin ATX12V1) 12V power connector. To (see p.6, 7, No. 1) use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5. TPM Header...

  • Page 29: Chapter 3 Software And Utilities Operation

    Chapter 3 Software and Utilities Operation 3.1 Installing Drivers he Support CD that comes with the motherboard contains necessary drivers and useful utilities that enhance the motherboard’s features. Running The Support CD To begin using the support CD, insert the CD into your CD-ROM drive. he CD automatically displays the Main Menu if “AUTORUN”...

  • Page 30: A-Tuning

    H310CM-HDV / H310CM-DVS 3.2 A-Tuning A-Tuning is ASRock’s multi purpose sotware suite with a new interface, more new features and improved utilities. 3.2.1 Installing A-Tuning A-Tuning can be downloaded from ASRock Live Update & APP Shop. Ater the installation, you will ind the icon “A-Tuning“ on your desktop. Double-click the “A-Tuning“...
  • Page 31 System Info View information about the system. *he System Browser tab may not appear for certain models. FAN-Tastic Tuning Conigure up to ive diferent fan speeds using the graph. he fans will automatically shit to the next speed level when the assigned temperature is met.
  • Page 32 H310CM-HDV / H310CM-DVS Settings Conigure ASRock A-Tuning. Click to select "Auto run at Windows Startup" if you want A-Tuning to be launched when you start up the Windows operating system.

  • Page 33: Asrock Live Update & App Shop

    Double-click on your desktop to access ASRock Live Update & APP Shop utility. *You need to be connected to the Internet to download apps from the ASRock Live Update & APP Shop. 3.3.1 UI Overview Category Panel Hot News...

  • Page 34: Apps

    H310CM-HDV / H310CM-DVS 3.3.2 Apps When the "Apps" tab is selected, you will see all the available apps on screen for you to download. Installing an App Step 1 Find the app you want to install. he most recommended app appears on the let side of the screen. he other various apps are shown on the right.
  • Page 35 Step 3 If you want to install the app, click on the red icon to start downloading. Step 4 When installation completes, you can ind the green "Installed" icon appears on the upper right corner. To uninstall it, simply click on the trash can icon *he trash icon may not appear for certain apps.
  • Page 36 H310CM-HDV / H310CM-DVS Upgrading an App You can only upgrade the apps you have already installed. When there is an available new version for your app, you will ind the mark of "New Version" appears below the installed app icon.

  • Page 37: Bios & Drivers

    3.3.3 BIOS & Drivers Installing BIOS or Drivers When the "BIOS & Drivers" tab is selected, you will see a list of recommended or critical updates for the BIOS or drivers. Please update them all soon. Step 1 Please check the item information before update. Click on to see more details.

  • Page 38: Setting

    H310CM-HDV / H310CM-DVS 3.3.4 Setting In the "Setting" page, you can change the language, select the server location, and determine if you want to automatically run the ASRock Live Update & APP Shop on Windows startup.

  • Page 39: Chapter 4 Uefi Setup Utility

    Chapter 4 UEFI SETUP UTILITY 4.1 Introduction his section explains how to use the UEFI SETUP UTILITY to conigure your system. You may run the UEFI SETUP UTILITY by pressing <F2> or <Del> right ater you power on the computer, otherwise, the Power-On-Self-Test (POST) will continue with its test routines.

  • Page 40: Ez Mode

    H310CM-HDV / H310CM-DVS 4.2 EZ Mode he EZ Mode screen appears when you enter the BIOS setup program by default. EZ mode is a dashboard which contains multiple readings of the system’s current status. You can check the most crucial information of your system, such as CPU speed, DRAM frequency, SATA information, fan speed, etc.

  • Page 41: Advanced Mode

    4.3 Advanced Mode he Advanced Mode provides more options to conigure the BIOS settings. Refer to the following sections for the detailed conigurations. To access the EZ Mode, press <F6> or click the "EZ Mode" button at the upper right corner of the screen.

  • Page 42: Navigation Keys

    H310CM-HDV / H310CM-DVS 4.3.2 Navigation Keys Use < > key or < > key to choose among the selections on the menu bar, and use < > key or < > key to move the cursor up or down to select items, then press <Enter>...

  • Page 43: Main Screen

    4.4 Main Screen When you enter the UEFI SETUP UTILITY, the Main screen will appear and display the system overview. My Favorite Display your collection of BIOS items. Press F5 to add/remove your favorite items.

  • Page 44: Oc Tweaker Screen

    H310CM-HDV / H310CM-DVS 4.5 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Because the UEFI sotware is constantly being updated, the following UEFI setup screens and descriptions are for reference purpose only, and they may not exactly match what you see on your screen.
  • Page 45 BCLK Aware Adaptive Voltage Conigure the BCLK Aware Adaptive Voltage. When enabled, pcode will be aware of the BCLK frequency when calculating the CPU V/F curves. his is ideal for BCLK OC to avoid high voltage overrides. Ring to Core Ratio Ofset Disable Ring to Core Ratio Ofset so the ring and core can run at the same frequency.
  • Page 46 H310CM-HDV / H310CM-DVS Conigure the current limit of the GT slice. A lower limit can protect the CPU and save power, while a higher limit may improve performance. DRAM Coniguration DRAM Tweaker Fine tune the DRAM settings by leaving marks in checkboxes. Click OK to conirm and apply your new settings.
  • Page 47 Refresh Cycle Time (tRFC) he number of clocks from a Refresh command until the irst Activate command to the same rank. RAS to RAS Delay (tRRD_L) he number of clocks between two rows activated in diferent banks of the same rank.
  • Page 48 H310CM-HDV / H310CM-DVS Turn Around Timing tRDRD_sg Conigure between module read to read delay. tRDRD_dg Conigure between module read to read delay. tRDRD_dr Conigure between module read to read delay. tRDRD_dd Conigure between module read to read delay. tRDWR_sg Conigure between module read to write delay.
  • Page 49 tWRWR_dg Conigure between module write to write delay. tWRWR_dr Conigure between module write to write delay. tWRWR_dd Conigure between module write to write delay. Round Trip Timing RTL Init Value Conigure round trip latency init value for round trip latency training. IO-L Init Value Conigure IO latency init value for IO latency training.
  • Page 50 H310CM-HDV / H310CM-DVS Advanced Setting ODT WR (CH A) Conigure the memory on die termination resistors' WR for channel A. ODT PARK (CH A) Conigure the memory on die termination resistors' PARK for channel A. ODT NOM (CH A) Use this to change ODT (CH A) Auto/Manual settings. he default is [Auto].
  • Page 51 PCH +1.0 Voltage Conigure the chipset voltage (1.0V). Load User Default Load previously saved user defaults. Save User UEFI Setup Proile to Disk Save current UEFI settings as an user default proile to disk. Load User UEFI Setup Proile to Disk Load previously saved user defaults from the disk.

  • Page 52: Advanced Screen

    H310CM-HDV / H310CM-DVS 4.6 Advanced Screen In this section, you may set the conigurations for the following items: CPU Coniguration, Chipset Coniguration, Storage Coniguration, Super IO Conigura- tion, ACPI Coniguration, USB Coniguration and Trusted Computing. Setting wrong values in this section may cause the system to malfunction.

  • Page 53: Cpu Coniguration

    4.6.1 CPU Coniguration Intel Hyper Threading Technology Intel Hyper hreading Technology allows multiple threads to run on each core, so that the overall performance on threaded sotware is improved. Active Processor Cores Select the number of cores to enable in each processor package. CPU C States Support Enable CPU C States Support for power saving.
  • Page 54 H310CM-HDV / H310CM-DVS Package C State Support Enable CPU, PCIe, Memory, Graphics C State Support for power saving. CFG Lock his item allows you to disable or enable the CFG Lock. CPU Thermal Throttling Enable CPU internal thermal control mechanisms to keep the CPU from overheating.

  • Page 55: Chipset Coniguration

    4.6.2 Chipset Coniguration Primary Graphics Adapter Select a primary VGA. Above 4G Decoding Enable or disable 64bit capable Devices to be decoded in Above 4G Address Space (only if the system supports 64 bit PCI decoding). VT-d Intel® Virtualization Technology for Directed I/O helps your virtual machine monitor better utilize hardware by improving application compatibility and reliability, and providing additional levels of manageability, security, isolation, and I/O performance.
  • Page 56 H310CM-HDV / H310CM-DVS PCIE ASPM Support his option enables/disables the ASPM support for all CPU downstream devices. PCH PCIE ASPM Support his option enables/disables the ASPM support for all PCH PCIE devices. DMI ASPM Support his option enables/disables the control of ASPM on CPU side of the DMI Link.

  • Page 57: Storage Coniguration

    4.6.3 Storage Coniguration SATA Controller(s) Enable/disable the SATA controllers. SATA Controller Speed Indicates the maximum speed the SATA controller can support. SATA Aggressive Link Power Management SATA Aggressive Link Power Management allows SATA devices to enter a low power state during periods of inactivity to save power. It is only supported by AHCI mode.

  • Page 58: Super Io Coniguration

    H310CM-HDV / H310CM-DVS 4.6.4 Super IO Coniguration PS2 Y-Cable Enable the PS2 Y-Cable or set this option to Auto.

  • Page 59: Acpi Coniguration

    4.6.5 ACPI Coniguration Suspend to RAM Select disable for ACPI suspend type S1. It is recommended to select auto for ACPI S3 power saving. PS/2 Keyboard Power On Allow the system to be waked up by a PS/2 Keyboard. PCIE Devices Power On Allow the system to be waked up by a PCIE device and enable wake on LAN.

  • Page 60: Usb Coniguration

    H310CM-HDV / H310CM-DVS 4.6.6 USB Coniguration Legacy USB Support Enable or disable Legacy OS Support for USB 2.0 devices. If you encounter USB compatibility issues it is recommended to disable legacy USB support. Select UEFI Setup Only to support USB devices under the UEFI setup and Windows/Linux operating systems only.

  • Page 61: Trusted Computing

    4.6.7 Trusted Computing Security Device Support Enable or disable BIOS support for security device.

  • Page 62: Tools

    H310CM-HDV / H310CM-DVS 4.7 Tools UEFI Tech Service Contact ASRock Tech Service if you are having trouble with your PC. Please setup network coniguration before using UEFI Tech Service. Instant Flash Save UEFI iles in your USB storage device and run Instant Flash to update your UEFI.
  • Page 63 Network Coniguration Use this to conigure internet connection settings for Internet Flash. Internet Setting Enable or disable sound efects in the setup utility. UEFI Download Server Select a server to download the UEFI irmware.

  • Page 64: Hardware Health Event Monitoring Screen

    H310CM-HDV / H310CM-DVS 4.8 Hardware Health Event Monitoring Screen his section allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, fan speed and voltage. Fan Tuning Measure Fan Min Duty Cycle.
  • Page 65 Chassis Fan 1 Temp Source Select a fan temperature source for Chassis Fan 1. Case Open Feature Enable or disable Case Open Feature to detect whether the chassis cover has been removed.

  • Page 66: Security Screen

    H310CM-HDV / H310CM-DVS 4.9 Security Screen In this section you may set or change the supervisor/user password for the system. You may also clear the user password. Supervisor Password Set or change the password for the administrator account. Only the administrator has authority to change the settings in the UEFI Setup Utility.

  • Page 67: Boot Screen

    4.10 Boot Screen his section displays the available devices on your system for you to conigure the boot settings and the boot priority. Fast Boot Fast Boot minimizes your computer's boot time. In fast mode you may not boot from an USB storage device. he VBIOS must support UEFI GOP if you are using an external graphics card.
  • Page 68 H310CM-HDV / H310CM-DVS Full Screen Logo Enable to display the boot logo or disable to show normal POST messages. AddOn ROM Display Enable AddOn ROM Display to see the AddOn ROM messages or conigure the AddOn ROM if you've enabled Full Screen Logo. Disable for faster boot speed.
  • Page 69 Launch Storage OpROM Policy Select UEFI only to run those that support UEFI option ROM only. Select Legacy only to run those that support legacy option ROM only. Select Do not launch to not execute both legacy and UEFI option ROM. Other PCI Device ROM Priority For PCI devices other than Network.

  • Page 70: Exit Screen

    H310CM-HDV / H310CM-DVS 4.11 Exit Screen Save Changes and Exit When you select this option the following message, “Save coniguration changes and exit setup?” will pop out. Select [OK] to save changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option the following message, “Discard changes and exit...
  • Page 71 Contact Information If you need to contact ASRock or want to know more about ASRock, you’re welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at https://event.asrock.com/tsd.asp...
  • Page 72 13848 Magnolia Ave, Chino, CA91710 Phone/Fax No: +1-909-590-8308/+1-909-590-1026 hereby declares that the product Product Name : Motherboard H310CM-HDV / H310CM-DVS Model Number : Conforms to the following speci cations: FCC Part 15, Subpart B, Unintentional Radiators Supplementary Information: is device complies with part 15 of the FCC Rules. Operation is subject to the...
  • Page 73 EU Declaration of Conformity For the following equipment: Motherboard (Product Name) H310CM-HDV / H310CM-DVS / ASRock (Model Designation / Trade Name) ASRock Incorporation (Manufacturer Name) 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) (Manufacturer Address) EMC —Directive 2014/30/EU (from April 20th, 2016)
