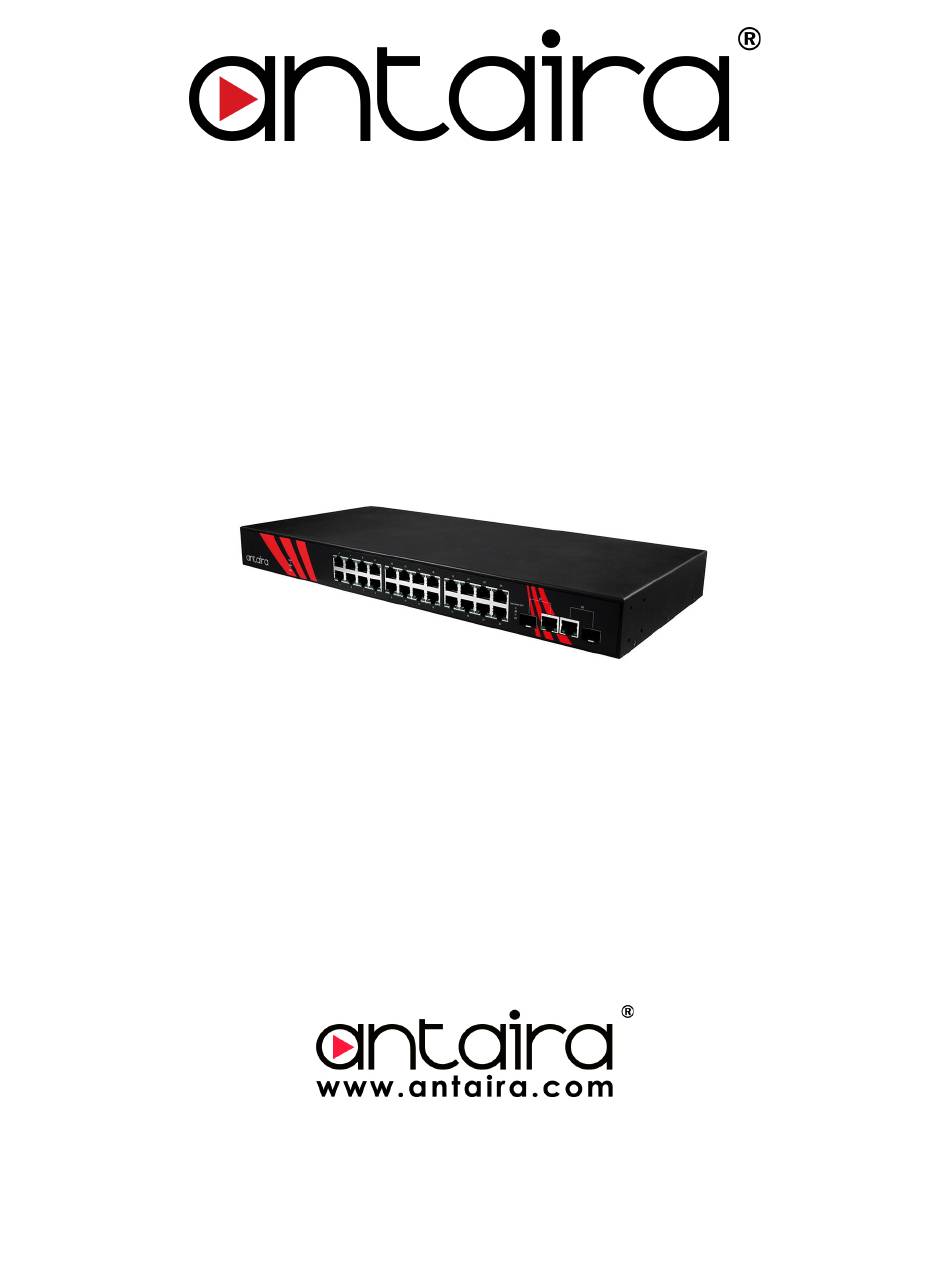

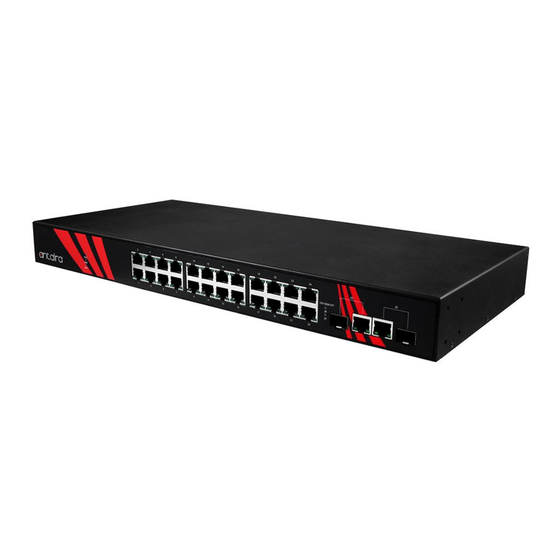

- Page 1 LNP-2602G-SFP Series 26-Port Industrial Gigabit PoE+ Unmanaged Ethernet Switch, with 24*10/100/1000Tx (30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots), 48~55VDC Power Input Hardware Manual Version 1.0 (November 2022)
- Page 2 Antaira Technologies, LLC will not be liable for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made to the information contained herein and will be incorporated into later versions of the manual.
- Page 3 Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment. Avertissement FCC Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A, conformément à la partie 15 des règles de la FCC.
- Page 4 Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 This document is the current official release hardware manual. Please check our website (www.antaira.com) for any updated manual or contact us by e-mail (support@antaira.com).
-
Page 5: Table Of Contents
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 Table of Contents 1 Overview 1.1 Product Hardware Features 1.2 Package Contents 1.3 Safety Precaution 2 Hardware Description 2.1 Physical Dimensions 2.2 Front View Panel 2.3 Rear View Panel 2.4 LED Indicators... - Page 6 LNP-2602G-SFP Series - Hardware Manual - v1.0 1 Overview Antaira Technologies’ LNP-2602G-SFP series is a 26-port industrial gigabit PoE+ unmanaged Ethernet switch embedded with 24*10/100/1000Tx Ethernet ports with IEEE 802.3af/at compliant (30W/Port). The LNP-2602G-SFP series also provides two gigabit combo ports with two 10/100/1000 twisted pair and two dual rate 100/1000Fx SFP slots for fiber or twisted pair connections to support any applications that demand high PoE power support, high bandwidth and long distance communication within any harsh and extreme ambient weather environment.
-
Page 7: Package Contents
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 1.2 Package Contents LNP-2602G-SFP(-T) Quick Installation Guide Rack-mounting bracket set with screws 1.3 Safety Precaution Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power supply input. -
Page 8: Hardware Description
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 2 Hardware Description 2.1 Physical Dimensions Figure 2.1, below, shows the physical dimensions of this product series: (W x D x H) is 440mm x 200mm x 44mm... -
Page 9: Front View Panel
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 2.2 Front View Panel Figure 2.2, below, shows the front panel of the product series: Figure 2.2 - Front View Panel 2.3 Rear View Panel Figure 2.3, below, shows the top panel of the product series: Figure 2.3 - Rear View Panel... - Page 10 Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 Power Input 2 is active Green Power Input 2 is inactive Green No event happened 1. System booting Fault 2. Configured event happens Flashing Firmware upgrading Connected to network, 10/100/1000Mbps...
-
Page 11: Ethernet Ports
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 2.5 Ethernet Ports ● RJ45 Ports RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or 1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation without changing the straight-through or crossover cabling. -
Page 12: Cabling
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 2.6 Cabling Use the four twisted-pair, category 5e, or the above cabling for the RJ45 port connections. The cable between the switch and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) in length. -
Page 13: Wiring The Fault Alarm Contact
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 Le calibre des fils du bornier doit être compris entre 18 et 20 AWG. 2.9 Wiring the Fault Alarm Contact The fault alarm contact is in the middle of the terminal block connector as the picture shows below in Figure 2.8. By inserting the wires, it will detect the fault status including power failure or port link failure (managed industrial switch only), and form a normal open circuit. -
Page 14: Grounding Note
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 2.10 Grounding Note Grounding and wire routing help limit the effects of noise due to Electromagnetic Interference (EMI). Run the ground connection from the ground screw to the grounding surface prior to connecting devices. The grounding screw symbol is shown below in Figure 2.9. -
Page 15: Mounting Installation
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 3 Mounting Installation 3.1 Rack Mounting This switch comes with a rack-mounted kit can be mounted in a EIA standard size, 19-inch rack. It can be placed in a wiring closet with other equipment. -
Page 16: Hardware Installation
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 4 Hardware Installation 4.1 Installation Steps This section will explain how to install the industrial Ethernet switch: Caution: This device is intended for indoor use. Attention: Cet appareil est destiné à une utilisation en intérieur. -
Page 17: Maintenance And Service
Check for loose power connections, power losses or surges at the power outlet. ○ Please contact Antaira for technical support service if the problem still cannot be resolved. ● If the industrial switch LED indicators are normal and the connected cables are correct but the packets still cannot... -
Page 18: Technical Specifications
Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 5 Technical Specifications Table 5.1 has the technical specifications for this product series. Technology IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet Standard IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3z 1000Base-X Gigabit Fiber... - Page 19 Antaira Technologies - Industrial Ethernet Switches LNP-2602G-SFP Series - Hardware Manual - v1.0 Mechanical Characteristics Housing Metal, IP40 rated Dimensions 440 x 44 x 200 mm (W x H x D) Unit: 6.19 lbs. Weight Shipping: 7.67 lbs. Mounting 1U 19” Rackmount...
- Page 20 LNP-2602G-SFP Series - Hardware Manual - v1.0 (Antaira US Headquarter) + 844-268-2472 (Antaira Europe Office) +48-22-862-88-81 (Antaira Asia Office) +886-2-2218-9733 Please report any problems to Antaira: www.antaira.com support@antaira.com www.antaira.eu info@antaira.eu www.antaira.com.tw info@antaira.com.tw Any changes to this material will be announced on the Antaira website.
