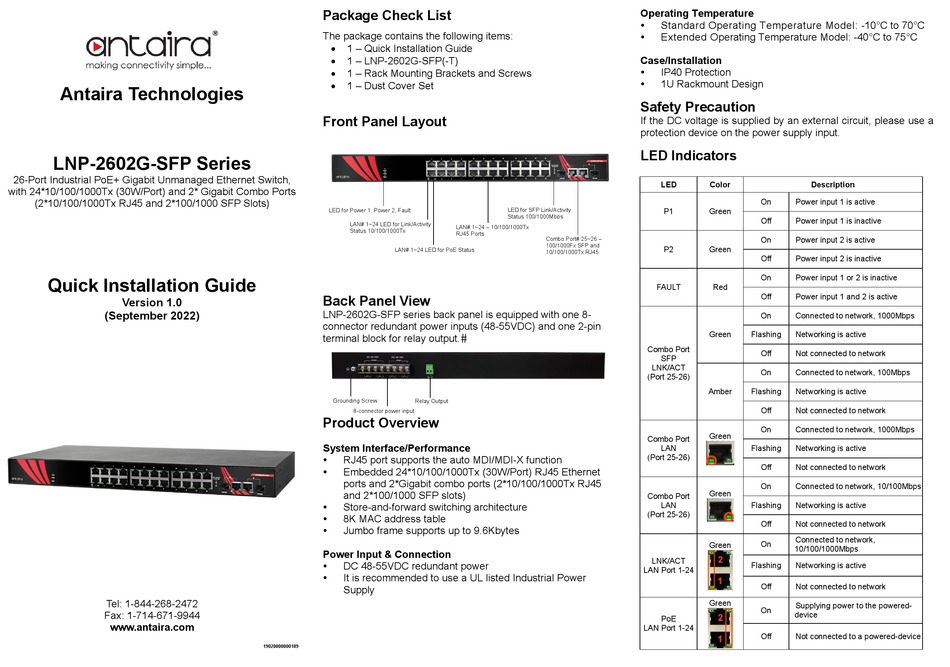

ANTAIRA LNP-2602G-SFP Series Quick Installation Manual

Antaira Technologies

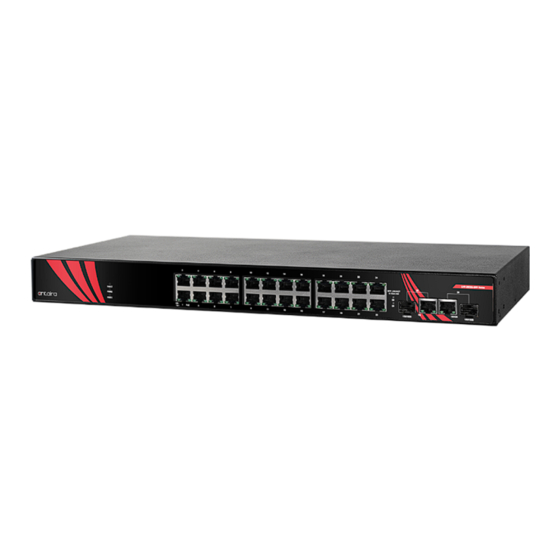

LNP-2602G-SFP Series
26-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch,
with 24*10/100/1000Tx (30W/Port) and 2* Gigabit Combo Ports
(2*10/100/1000Tx RJ45 and 2*100/1000 SFP Slots)
Quick Installation Guide
Version 1.0
(September 2022)
Tel: 1-844-268-2472
Fax: 1-714-671-9944
www.antaira.com
Package Check List
The package contains the following items:

1 – Quick Installation Guide

1 – LNP-2602G-SFP(-T)

1 – Rack Mounting Brackets and Screws

1 – Dust Cover Set
Front Panel Layout
LED for Power 1, Power 2, Fault
LAN# 1~24 LED for Link/Activity
Status 10/100/1000Tx
LAN# 1~24 LED for PoE Status
Back Panel View
LNP-2602G-SFP series back panel is equipped with one 8-
connector redundant power inputs (48-55VDC) and one 2-pin
terminal block for relay output.
Grounding Screw Relay Output
8-connector power input
Product Overview
System Interface/Performance
 RJ45 port supports the auto MDI/MDI-X function
 Embedded 24*10/100/1000Tx (30W/Port) RJ45 Ethernet
ports and 2*Gigabit combo ports (2*10/100/1000Tx RJ45
and 2*100/1000 SFP slots)
 Store-and-forward switching architecture
 8K MAC address table
 Jumbo frame supports up to 9.6Kbytes
Power Input & Connection
 DC 48-55VDC redundant power
 It is recommended to use a UL listed Industrial Power
Supply
19020000000189
LED for SFP Link/Activity
Status 100/1000Mbps
LAN# 1~24 – 10/100/1000Tx
RJ45 Ports
Combo Port# 25~26 –
100/1000Fx SFP and
10/100/1000Tx RJ45
Operating Temperature
 Standard Operating Temperature Model: -10°C to 70°C
 Extended Operating Temperature Model: -40°C to 75°C
Case/Installation
 IP40 Protection
 1U Rackmount Design
Safety Precaution
If the DC voltage is supplied by an external circuit, please use a
protection device on the power supply input.
LED Indicators
LED Color Description
On Power input 1 is active
P1 Green
Off Power input 1 is inactive
On Power input 2 is active
P2 Green
Off Power input 2 is inactive
On Power input 1 or 2 is inactive
FAULT Red
Off Power input 1 and 2 is active
On Connected to network, 1000Mbps
Green Flashing Networking is active
Combo Port
Off Not connected to network
SFP
LNK/ACT
On Connected to network, 100Mbps
(Port 25-26)
Amber Flashing Networking is active
Off Not connected to network
On Connected to network, 1000Mbps
Green
Combo Port
LAN Flashing Networking is active
(Port 25-26)
Off Not connected to network
On Connected to network, 10/100Mbps
Green
Combo Port
LAN Flashing Networking is active
(Port 25-26)
Off Not connected to network
Connected to network,
On
Green
10/100/1000Mbps
LNK/ACT
Flashing Networking is active
LAN Port 1-24
Off Not connected to network
Green
Supplying power to the powered-
On
device
PoE
LAN Port 1-24
Off Not connected to a powered-device
