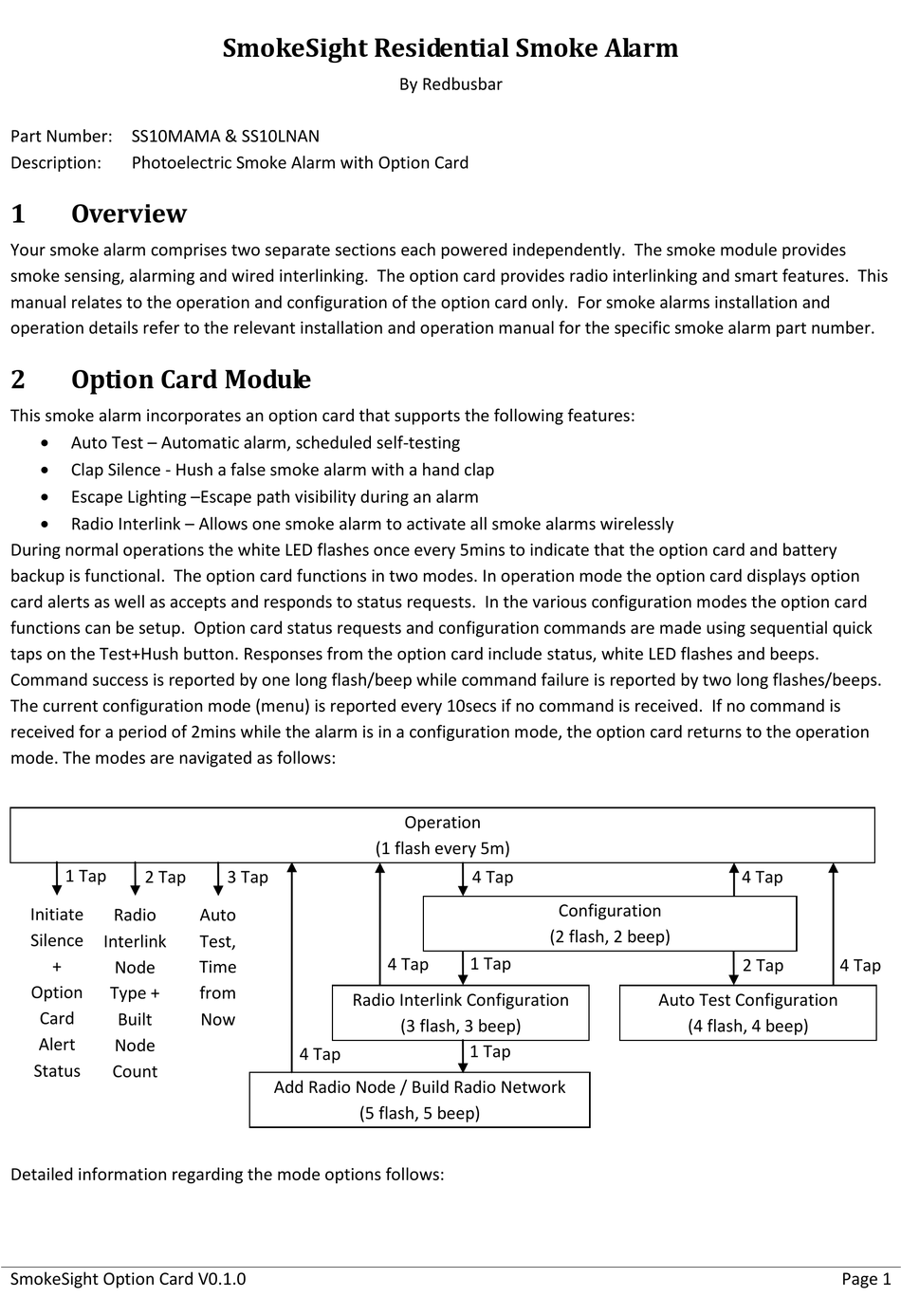

Part Number: SS10MAMA & SS10LNAN
Description:
Photoelectric Smoke Alarm with Option Card
1
Overview
Your smoke alarm comprises two separate sections each powered independently. The smoke module provides
smoke sensing, alarming and wired interlinking. The option card provides radio interlinking and smart features. This
manual relates to the operation and configuration of the option card only. For smoke alarms installation and
operation details refer to the relevant installation and operation manual for the specific smoke alarm part number.
2
Option Card Module
This smoke alarm incorporates an option card that supports the following features:
Auto Test – Automatic alarm, scheduled self-testing
Clap Silence - Hush a false smoke alarm with a hand clap
Escape Lighting –Escape path visibility during an alarm
Radio Interlink – Allows one smoke alarm to activate all smoke alarms wirelessly
During normal operations the white LED flashes once every 5mins to indicate that the option card and battery
backup is functional. The option card functions in two modes. In operation mode the option card displays option
card alerts as well as accepts and responds to status requests. In the various configuration modes the option card
functions can be setup. Option card status requests and configuration commands are made using sequential quick
taps on the Test+Hush button. Responses from the option card include status, white LED flashes and beeps.
Command success is reported by one long flash/beep while command failure is reported by two long flashes/beeps.
The current configuration mode (menu) is reported every 10secs if no command is received. If no command is
received for a period of 2mins while the alarm is in a configuration mode, the option card returns to the operation
mode. The modes are navigated as follows:
1 Tap
2 Tap
Initiate
Radio
Silence
Interlink
+
Node
Option
Type +
Card
Built
Alert
Node
Status
Count
Detailed information regarding the mode options follows:
SmokeSight Option Card V0.1.0
SmokeSight Residential Smoke Alarm
3 Tap
Auto
Test,
Time
from
Radio Interlink Configuration
Now
4 Tap
Add Radio Node / Build Radio Network
(5 flash, 5 beep)
By Redbusbar
Operation
(1 flash every 5m)
4 Tap
1 Tap
4 Tap
(3 flash, 3 beep)
1 Tap
Configuration
(2 flash, 2 beep)
Auto Test Configuration
(4 flash, 4 beep)
4 Tap
2 Tap
4 Tap
Page 1
