Redbusbar SmokeSight SS10MAMA Instruction Manual

Part Number: SS10MAMA
Description: 240 VAC Mains Power Photoelectric Smoke Alarm with Option Card & 4xAA 1.5VDC Battery Backup
PLEASE LEAVE THESE INSTRUCTIONS WITH THE OCCUPANT, TO BE RETAINED FOR THE LIFE OF THE ALARM.
THIS SMOKE ALARM MUST BE INSTALLED BY A LICENSED ELECTRICIAN.
Read all Instructions before Installation and Operation
Regular testing of this smoke alarm is necessary to ensure the unit is functional and that the battery is in good
condition. It is recommended that the smoke alarm be replaced after 10 years of normal service. The only user-
serviceable parts are the replaceable backup batteries. Refer to 'Replacing the Backup Batteries'.
RISK OF ELECTRIC SHOCK, EXPLOSION OR ARC FLASH
• This product must only be installed and serviced by
appropriately qualified and/or licenced electrical
personnel.
• This product must only be used for the purpose
described in these instructions and must be installed in
accordance with the local regulations.
• Hazardous voltages may be present at wires
connected to this product.
• Before working on this product, isolate the electrical
supply.
• Ensure that the product has been correctly installed
and tested for safe operation before reconnecting the
electrical supply.
Failure to comply with these instructions may result in
death or serious injury.

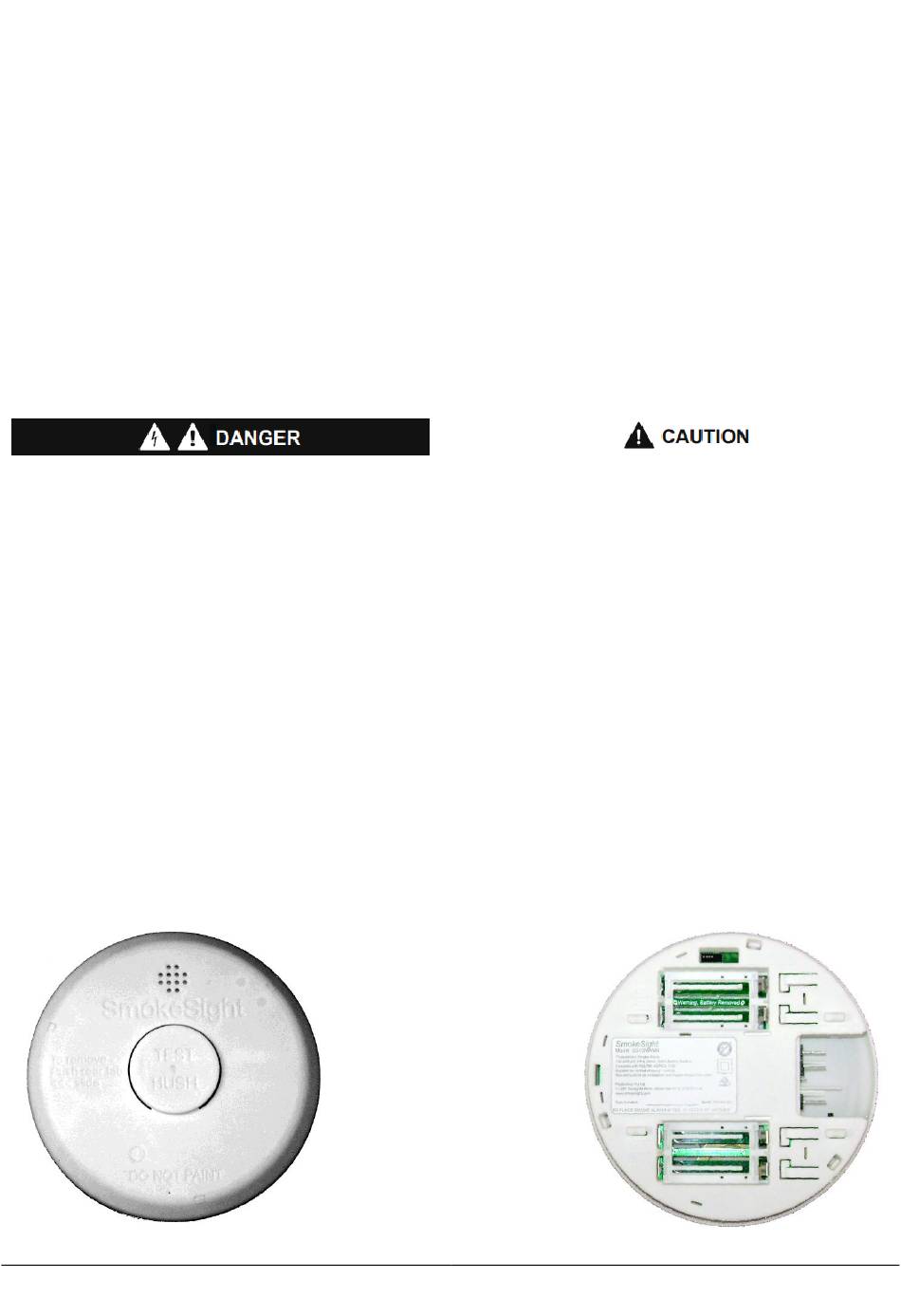

Smoke Alarm – Top View
3
SmokeSight SS10MAMA V0.5
SmokeSight Residential Smoke Alarm
1. Mains (Green) LED
2. Alarm (Red) LED
1
3. Option Card (White)
2
LED
4. Smoke Alarm Battery
Holder
5. Option Card Battery
Holder
6. Option Card
Configuration
Switches
By Redbusbar
EQUIPMENT INSTALLATION HAZARD
• This alarm cannot be operated from power derived
from a square wave, modified square wave or modified
sine wave inverter. These inverters are sometimes
used in off grid installations such as solar or wind
power sources. They produce high peak voltages that
will damage the alarm.
• Ensure that the mains supply, active and neutral is
wired to the correct terminals.
• Ensure that green LED is ON when mains supply is on.
• Ensure that red LED is not fast flashing.
• Smoke Test each interlinked alarm. Check to ensure
every interlinked alarm, alarms correctly. If any unit
fails to alarm, check all wiring and connections.
Failure to follow these instructions may result in
equipment damage or injury.
Smoke Alarm – Bottom View
6
5
4
