Mt. Laurel, NJ 08054 USA
www.ecr4kids.com

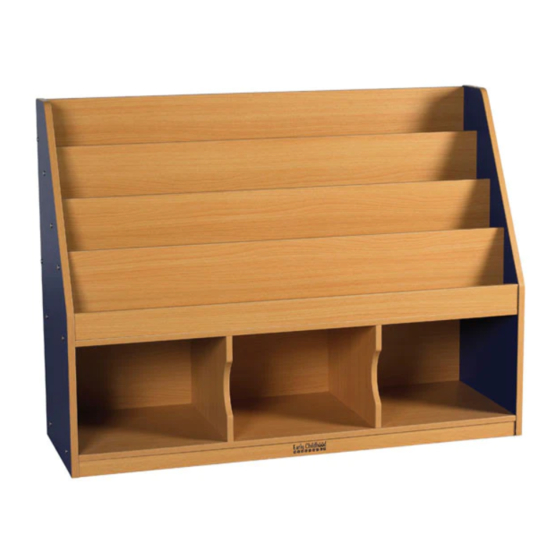

Book Display with Storage
- 3 Compartment -
Model# ELR-0728
WARNING:
Adult Assembly Required.
Two adults recommended.
- Contains small parts, sharp points and edges.
- Do not stand, sit, kneel, climb, lean or pull on
unit for support.
- Never leave children unattended.
- Do not place unit near high heat or moisture.
- Adult supervision recommended.
TOOLS INCLUDED
Hex Tool (1)
TOOLS NEEDED
Phillips Screwdriver
BEFORE ASSEMBLING, MAKE SURE YOU HAVE ALL THE PARTS
A
A1
A2
B
C
D
Upper Back Panel (1)
E
Parts List
F
Left & Right
Side Panels (1/1)
G
H
Top Panel (1)
I
Bottom Shelf (1)
J
Batch ID Sticker
located on underside
Lower Dividers (2)
K
L
M
M1
Lower Back
Panel (1)
Front
Crossbar (1)
Rear
Dividers (2)
Front
Divider (1)
Shelves (3)
Decorative Hex Screws (22)
Use the
Hex Tool.
Flat Head Hex Screws (4)
Use the
Hex Tool.
Cam Posts & Cam Locks (6/6)
Use a Phillips
M2
Screwdriver.
Advertisement
Related Manuals for Early Childhood Resources ELR-0728
Summary of Contents for Early Childhood Resources ELR-0728
- Page 1 Mt. Laurel, NJ 08054 USA Left & Right Lower Back www.ecr4kids.com Side Panels (1/1) Panel (1) Book Display with Storage - 3 Compartment - Model# ELR-0728 Front Crossbar (1) Rear Top Panel (1) Dividers (2) Front Divider (1) Bottom Shelf (1) WARNING: Adult Assembly Required.
- Page 2 Install Lower Dividers Insert the Lower Back Panel Install the Lower Dividers (D) onto the Bottom Shelf (C) with four Decorative Hex Screws (K) Slide the Lower Back Panel (F) into the grooves on the underside of Top Panel (B) and topside of the Bottom Shelf (C) as shown, center the panel so it will seat into the grooves on the inside using the Hex Tool.
- Page 3 Install the Left Side Panel Install the Shelves Install the Left Side Panel (A1) onto the Top Panel (B), Bottom Shelf (C), Upper Back Panel (E) Slide the Shelves (J) into the grooves on the sides of Upper Back Panel (E) and Front/Rear and Front Divider (I) with seven Decorative Hex Screws (K) using the Hex Tool.
- Page 4 Model Number: ELR-0728 Factory Code: Manufacture Date: “Early Childhood Resources® guarantees the quality of all of our products. You can Batch ID Number: trust the quality and safety of our furniture and materials, along with the peace of mind (Located on Part C) that our products are made to last.
