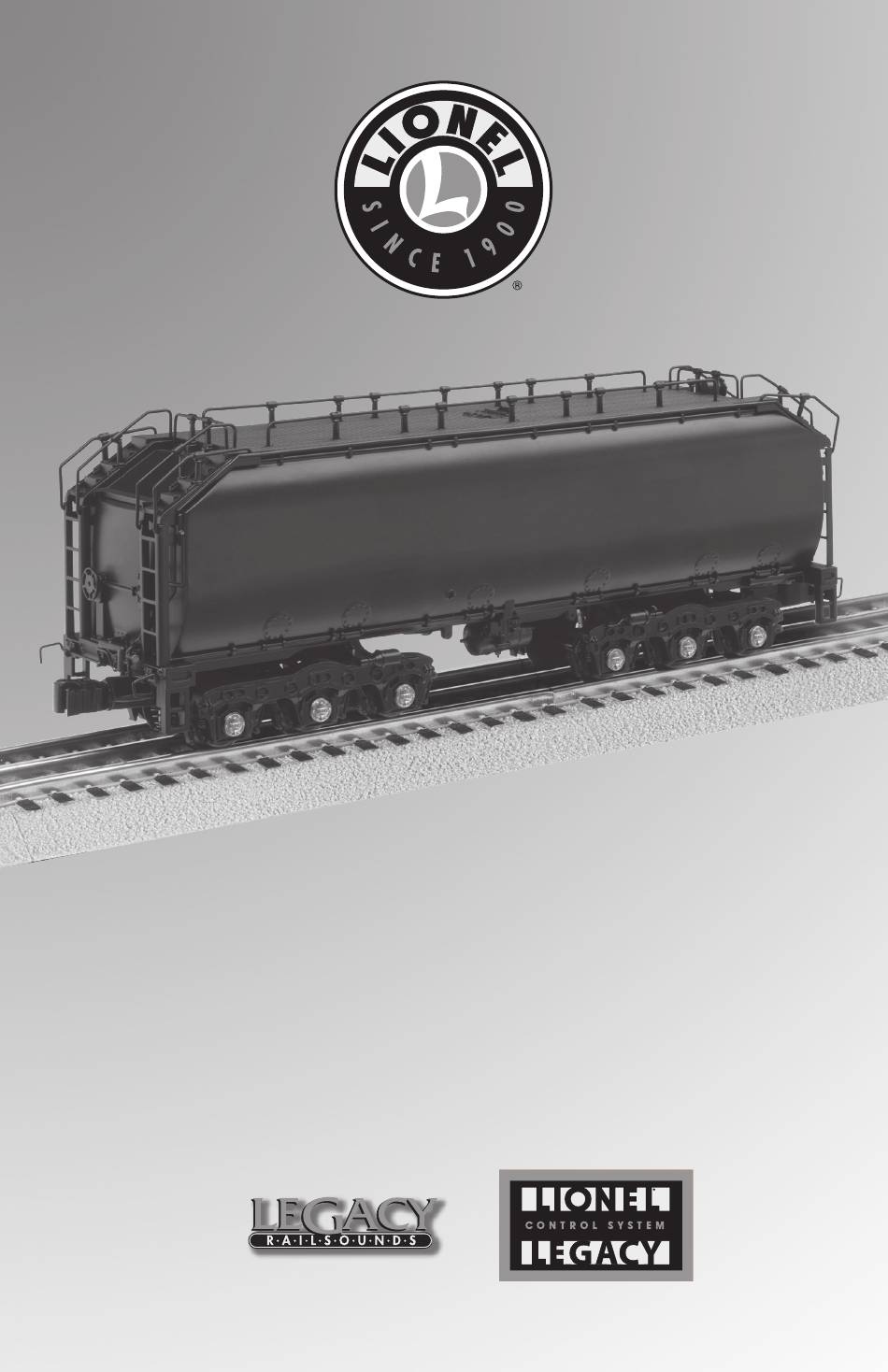

- Page 1 10931311250 5/19 Lionel VISION Lionel VISION Auxiliary Water Tender Auxiliary Water Tender Owner’s Manual Owner’s Manual Featuring...
- Page 2 Thank You! hank you for your purchase of the Lionel VISION Auxiliary Water Tender! On the outside, this tender is accurately detailed and is equipped with the latest technology to bring you realistic loading and unloading sounds, and true-to-life freight car sounds. Many of the sounds are activated through your cab control unit, and many of them by the actual movement of the Auxiliary Water Tender on your layout.
-
Page 3: Table Of Contents
Creating a Train with the original (gray) CAB-1 remote Creating a Train with the CAB-1L (blue) remote Operating your VISION Auxiliary Water Tender with the CAB-1 or CAB-1L remote CAB-1 remote controller commands Adjusting the volume from your LEGACY remote... -
Page 4: Vision Auxiliary Water Tender Basics
VISION Auxiliary Water Tender basics Power your VISION Auxiliary Water Tender with an alternating-current (AC) transformer Note! only. Powering your tender with a direct-current (DC) transformer, or in excess of 19 volts AC, may result in damage to sensitive electronic components. - Page 5 VISION Auxiliary Water Tender basics VISION Auxiliary Water Tender switch locations continued Program/Run switch MIN/MAX switch Figure 1. Switch locations Volume control (concealed under hatch) Figure 2. Volume Pot...
-
Page 6: Legacy And Command Control Remote Operations
3. Increase track power (no more than 18 volts AC). If a circuit breaker trips when you turn on the Lionel power supply, check the wheels of your tender to make sure they are all securely on the track. Check to make sure the track is free of all metals that may cause a short circuit. -
Page 7: Setting Up Your Vision Auxiliary Water Tender With Your Cab-2 Remote
Setting up your VISION Auxiliary Water Tender in your CAB-2 remote or best operation, your VISION Auxiliary Water Tender should be set to TYPE FRT (Freight Sounds). This will display a special set of touch screen icons specifically designed for use with this type of car. - Page 8 Adding Your Auxiliary Water Tender to a Train For best operation, your VISION Auxiliary Water Tender should be assigned to a Train. Be sure it has a different engine ID from any active locomotives on your layout. To add a tender to a train: 1.
- Page 9 To move your locomotive, select the Train by its ID number and use the throttle, boost, and brake to run it. Apply your CAB2 Train brake and hear the brakes operating on your VISION Auxiliary Water Tender. For more prototypical action, stopping with the train brake applied (in any amount) will keep your freight consist stretched-out and prevents stress on the coupler when starting.
- Page 10 Setting up your VISION Auxiliary Water Tender in your CAB-2 remote continued Using Train Link To send a command specifically to your VISION Auxiliary Water Tender, such as a coupler command or to trigger loading/unloading, press the Train Link button (see page 11 for button location). TENDER COMMANDS Select one or more commands then press the Train Link button to continue controlling your train.
-
Page 11: The Legacy Cab-2 Remote Controller
Displays real-time feedback of operation. building a train. Select Button Select Button “controller” Raises the overall master Flat wheel sounds ON volume of your VISION (while running). Auxiliary Water Tender. To independently adjust the Select Button “arrow down” level of the background Pre-run maintenance dialog. -
Page 12: Trainmaster Command Control (Tmcc) Operations
Operations TrainMaster Command Control (TMCC) operations or best operation, your VISION Auxiliary Water Tender should be assigned to a Train. The fol- lowing sections explain how to create a Train using an original (gray) CAB-1 remote, or the newer (blue) CAB-1L remote. Before proceeding, be sure you have assigned your reefer a unique ID following the instructions on page 4 of this manual. -
Page 13: Creating A Train With The Cab-1L (Blue) Remote
1. Press the TR button and press two digits (from 01-99). Use the same number you chose when assigning the head-end locomotive. 2. Enter the one or two digit TMCC ID of the VISION Auxiliary Water Tender. 3. (Optional Step) Press the R coupler button to set as Rear. As Rear, your tender’s coupler will be activated via the train address. -
Page 14: Operating Your Vision Auxiliary Water Tender With The Cab-1 Or Cab-1L Remote
2. Enter the train ID 3. Use throttle, boost and brake to move the train. The Brake button will cause brake squealing sounds to emanate from both the locomotive and your VISION Auxiliary Water Tender. Triggering Loading and other Functions 1. -
Page 15: Cab-1 Remote Controller Commands
LEGACY and Command Control Remote Operations CAB-1 Remote Controller commands he CAB-1 Remote Controller commands are detailed below. The corresponding RailSounds sound system effects are in bold italic type. Select Button <1> Volume up . Select Button <2> Volume Down. Select Button <AUX><2>... -
Page 16: Adjusting The Volume From Your Legacy Remote
Pressing the volume up or down buttons (see pages 11 or 15) adjusts the overall volume of your VISION Auxiliary Water Tender. A single bell ring will be heard each time the volume is raised or lowered, except that no ring will be heard once the volume reaches the minimum or maximum levels. -
Page 17: Shut Down And Start Up Commands
Operations Shut down and Start up commands ike a LEGACY locomotive, you can shut down the VISION Auxiliary Water Tender to turn off the sounds. Refer to pages 7 through 11 for LEGACY and 12-15 for TMCC. To restart after shut down:... -
Page 18: Sound System Operations
Sound System Operations Freight Sounds hen your Auxiliary Water Tender is running on the track, you will hear a variety of realistic freight car sounds in the background. Listen for an occasional “knock” of the wheels as they clatter over crossing rail junctions, wheel-flange grinding and assorted bumping, groaning, and scraping sounds along the route. -
Page 19: Legacy Sound System Operations
LEGACY Sound System Operations Train Brake he Train Brake sound effects are only accessible through your LEGACY CAB-2 Remote Controller. For full effect, you must add your Auxiliary Water Tender to a “lash up” that includes at least one powered locomotive (see the Assignment to Train section on the bottom on page 8 for more information). -
Page 20: Limited Warranty/Lionel Service
Lionel LLC or any Lionel Authorized Service Station MUST be accompanied by the original receipt for purchase (or copy) from an Authorized Lionel Retailer*, will at the discretion of Lionel LLC, be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a suitable replacement is not available, Lionel will offer to replace the product with a comparable model (determined by Lionel LLC), if available.
