Lionel 154 Owner's Manual

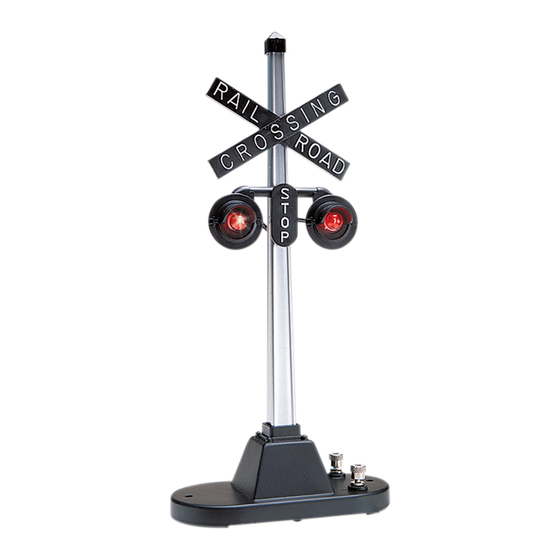

Railroad crossing flasher
Hide thumbs

Advertisement

Table of Contents

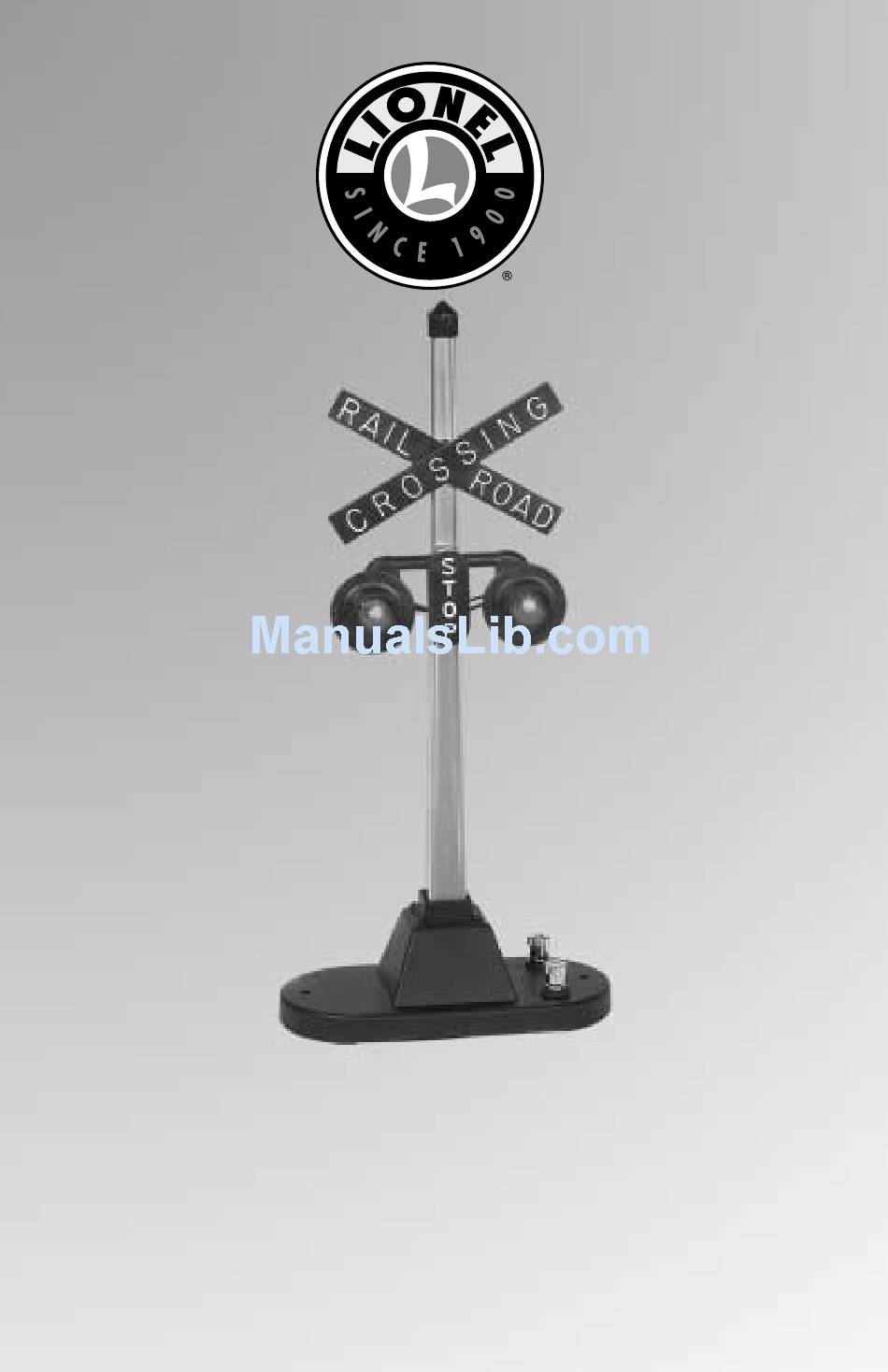

71-2888-250
3/04
Lionel
#154 Railroad
Crossing Flasher
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 154 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lionel 154

Summary of Contents for Lionel 154

  • Page 1 71-2888-250 3/04 Lionel #154 Railroad Crossing Flasher Owner’s Manual...

  • Page 2: Table Of Contents

    Connecting your #154 Railroad Crossing Flasher with the FasTrack track system Replacing your #154 Railroad Crossing Flasher’s lamps Limited Warranty/Lionel Service The following Lionel marks may be used throughout this instruction manual and are protected under law. All rights reserved. Lionel ®...

  • Page 3: Installing The 153C Contactor

    Installing the 153C Contactor he 153C Contactor is activated by the weight of a passing train. Place the Contactor under the track, as shown in Figure 1. One of the track ties should rest firmly upon the top of the pressure plate. If your track is fastened to a board, loosen several sections on either side of the Contactor so that the track is able to bend under the weight of the train.

  • Page 4: Wiring Your #154 Railroad Crossing Flasher To A Power Source

    Wiring your #154 Railroad Crossing Flasher to a power source our #154 Railroad Crossing Flasher operates best at 12-18 volts (AC). Have an adult strip 1⁄4" of insulation from the ends of the three wires included with the #154 Railroad Crossing Flasher, if they have not already been stripped.

  • Page 5: Adjusting The Contactor

    Contactor. After the train has cleared the Contactor, the signal will turn off. Connecting your #154 Railroad Crossing Flasher to a 153IR Controller he 153IR Controller (available separately, 6-14111) is an alternative to the 153C Contactor.

  • Page 6: Connecting Your #154 Railroad Crossing Flasher With The Fastrack Track System

    Connecting your #154 Railroad Crossing Flasher with the FasTrack Track System o operate this accessory with the FasTrack track system, you will need the Accessory Activator Pack (available separately, 6-12029). To make the proper connections, the ends of the wires should be stripped back 1/8”...

  • Page 7: Replacing Your #154 Railroad Crossing Flasher's Lamps

    Railroad Crossing Flasher, gently pull the lamp and socket assembly straight out. Do not twist the bulb. Replace the lamp with Lionel part no. 600-8352-900, available from your authorized Lionel Service Center or Lionel Service in Chesterfield, MI.

  • Page 8: Limited Warranty/Lionel Service

    Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In the event the defective product cannot be repaired, and a replacement is not available, a refund of the original purchase price will be granted.
