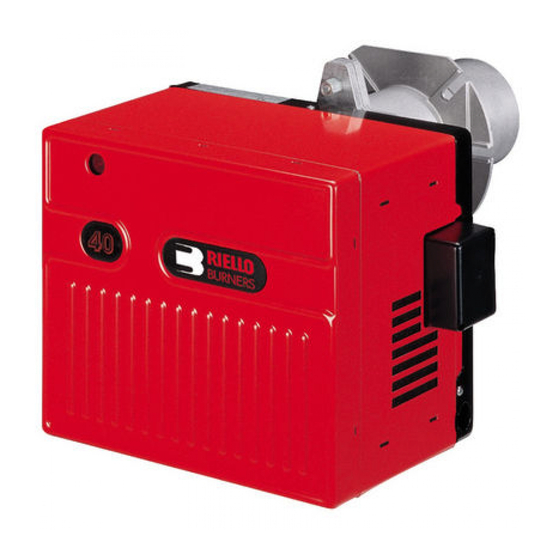

RIELLO 40 SERIES POWER GAS BURNER MODEL G750 NATURAL & PROPANE GAS
INSTALLATION INSTRUCTIONS AND OWNER'S HANDBOOK
CAUTION: All Riello power gas burners MUST be installed by certified or licensed gas technician.
WARNING: Installation of this burner must conform with local codes requirements or, in the absence of local codes,
with the Standard: National Fuel Gas code ANSI Z223.1-1984, and CAN/CGA B149.1 & 2 AND UL 795. If an external
electrical source is utilized, the conversion burner, when installed, must be electrically grounded in accordance with
local codes or, in the absence of local codes, with the national Electrical Code, ANSI/NFPA No. 70-1990 and CSA
Electrical Code C22.2 No.0 M1982 & C22.2 No 3. 1988.
Authorities having jurisdiction should be consulted before installations are made. The owner is required to retain this
manual for future reference.
This burner must be fired ONLY with the fuel listed on the burner nameplate.
MANIFOLD PRESSURES
GAS SUPPLY PRESSURES
POWER
MOTOR
TRANSFORMER
SAFETY CONTROL
WARNING: If the information in these instructions is not followed exactly, a fire or explosion
may result causing property damage, personal injury or death.
Do not store or use gasoline or any other flammable vapours or liquid in the vicinity of this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS:
1) Do not try to light any appliance.
2) Do not touch electrical switches; Do not use any phone in your building.
3) Immediately call your gas supplier from a neighbour's phone. Follow the gas
supplier's instructions.
4) If you cannot reach your gas supplier, call the fire department.
G750 Rev.2 - 06/10/2002
TECHNICAL SPECIFICATIONS
FIRING RATES: 250 to 750 KBTU/Hr
NATURAL
1.4" w.c.
2.1" w.c.
7 – 14" w.c.
120 VOLTS 60 Hz. single phase
233T 4.3 AMPS 3250 RPM 325 RAD/sec
Primary: 120Vac 1.4A. Secondary: 6000Vac 20mA
120 VOLT 60 Hz.
PROPANE
1.0" w.c.
3.0" w.c.
8 – 14" w.c.
1
Advertisement
Table of Contents
Related Manuals for Riello Burners 40 Series
Summary of Contents for Riello Burners 40 Series
- Page 1 RIELLO 40 SERIES POWER GAS BURNER MODEL G750 NATURAL & PROPANE GAS INSTALLATION INSTRUCTIONS AND OWNER’S HANDBOOK CAUTION: All Riello power gas burners MUST be installed by certified or licensed gas technician. WARNING: Installation of this burner must conform with local codes requirements or, in the absence of local codes, with the Standard: National Fuel Gas code ANSI Z223.1-1984, and CAN/CGA B149.1 &...
-
Page 2: Table Of Contents
TABLE OF CONTENT SERIAL NUMBER IDENTIFICATION..................3 PRINCIPAL BURNER COMPONENTS ..................4 DIMENSIONS ..........................4 UNIVERSAL MOUNTING FLANGE DIMENSIONS ..............5 ELECTRODE AND FLAME PROBE ADJUSTMENTS..............5 TYPICAL GAS TRAIN LAYOUT ....................6 INSTALLING THE BURNER ..................... 7-9 COMBUSTION HEAD SETTING ....................9 FIRING RATE SPECIFICATIONS AND SETTINGS ..............10 WORKING RANGE OF BURNER ....................10 COMBUSTION CHAMBER SIZING....................11 COMBUSTION CHECKS ......................11... -
Page 3: Serial Number Identification
The following pages contain information, descriptions and diagrams for the proper installation and wiring of the burner. Please read carefully before attempting final installation. The responsibility for ensuring that this manual is complete rests with the holder of these instructions. SERIAL NUMBER IDENTIFICATION The Riello 15 character serial number, example, 99 A 8511111 00025, is identified as follows: 99 = last two digits of the year of manufacture;... -
Page 4: Principal Burner Components
PRINCIPAL BURNER COMPONENTS Accessory Package: 1-Insulating IONIZATION IGNITION TRANSFORMER gasket CONNECTION CONNECTION 1-Data tag 1-Instruction booklet CONTROL BOX 2-Bilingual 509 SE/A warning labels (CAN1-B149) ELECTRICAL POWER CONNECTION TERMINAL AIR GATE PLATE CAPACITOR MOTOR PRESSURE SWITCH BURNER DIMENSIONS pipe M o d e l 7 5 0 I n c h e s 1 1 3 / 4 1 3 3 / 4... -
Page 5: Universal Mounting Flange Dimensions
UNIVERSAL MOUNTING FLANGE DIMENSIONS inches 1 1/2 7/16 2 7/8 ELECTRODE AND FLAME PROBE ADJUSTMENTS Ignition Orifice electrode Ionization Probe Warning 2-3 mm Propane orifice Propane adapter G750 Rev.2 - 06/10/2002... -
Page 6: Typical Gas Train Layout
TYPICAL GAS TRAIN LAYOUT RIELLO SUPPLIED FIELD SUPPLIED SEE GAS SUPPLY Ø RANGE NOTE: ITEMS 5,6 & 7 COMBINATION GAS VALVE(S) ASSEMBLIES MAY BE UTILIZED WHERE APPROVED. GAS TRAIN LEGEND 1) GAS SUPPLY & FLOW DIRECTION OF GAS 5) GAS APPLIANCE PRESSURE REGULATOR 2) GAS SUPPLY MAIN SHUTOFF MANUAL VALVE (FIELD SUPPLIED) 6) SAFETY SHUTOFF GAS VALVE (VS) 120V OPERATED... -
Page 7: Installing The Burner
INSTALLING THE BURNER 1. Burner Chassis 2. Lock-nut 3. Burner Mounting Gasket 4. Insulation on Mounting Plate 5. Combustion Chamber 6. Forced Air Heat Exchanger 7. Burner Hinge Assembly 8. Gas Train Supply Separate the combustion head of the burner from the chassis (1) by removing the lock-nut (2). - Page 8 STEP-BY-STEP PROCEDURE 1) Remove the burner from the carton, taking care not to lose any of the supplied accessories, and check for signs of physical damage. 2) Bolt the burner to furnace/boiler. Be sure to install the supplied mounting gasket. Ensure that the burner is level and that the combustion head is centered in the boiler/furnace port.
-
Page 9: Combustion Head Setting
8) Make your final combustion efficiency test and fine tune the fan air damper as necessary. Replace the red protective cover and secure with three screws. NOTE: Do not assume the burner is operating at optimum performance. 9) If the burner is installed on a central warm air furnace, affix the supplied warning labels to the furnace fan cover door (inside and outside). -
Page 10: Firing Rate Specifications And Settings
FIRING RATE SPECIFICATIONS AND SETTINGS Make sure you are using the correct table for either Natural gas or Propane gas. Natural gas burner setup chart BTU Input Air Gate Stop Gate Manifold Pressure Line Pressure 250,000 1.4” w.c. 8.0”w.c. 350,000 1.6”... -
Page 11: Combustion Chamber Sizing
BTU. If the input of the boiler is larger than the burner capacity in this condition, then the burner is not compatible to the job application. COMBUSTION CHAMBER SIZING RECOMMENDED MINIMUM SIZES MINIMUM DIAMETER 16 inches 1000 INPUT (000 BTUH) NOTES: 1) Sizes shown above are for cylindrical or wet base boilers, or air cooled heat exchangers. -
Page 12: Burner Start-Up Cycles
BURNER START-UP CYCLES N o r m a l Call for heat M o t o r I g n i t i o n t r a n s f o r m e r G a s v a l v e o p e n i n g F l a m e L o c k o u t 5 5 s e c o n d s... -
Page 13: Factory Wiring Diagram
INTERNAL FACTORY WIRING DIAGRAM FLAME ROD CONNECTOR TRANSFORMER 509 SE/A PRESSURE CONTROL SWITCH BROWN BLUE BLACK MOTOR CAPACITOR REMOTE SENSING OF SAFETY LOCKOUT Terminal 4 on the 509SE/A Control Box sub-base can be used to activate a circuit allowing remote sensing of burner lockout switch. -
Page 14: Field Wiring Diagram
FIELD WIRING 120V CONTROL SYSTEM G750 Single Stage Wiring First stage firing is controlled by a 120V operating control wired between terminals 3 and 4 on the terminal block. To control second stage fire on demand only, a second 120V operator must be wired between terminals 7 and 8 after removing the factory-installed jumper. -
Page 15: Installation Of Sediment Trap & Burner Supply
INSTALLATION OF SEDIMENT TRAP AND BURNER SUPPLY Gas piping supply should be installed according to local gas supplier authorities. PRESSURE TEST-OVER ½ PSIG. The appliance and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of the system at a test pressure in excess of ½ PSIG. PRESSURE TEST-1/2 PSIG OR LESS The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any testing of the gas supply piping system at test pressures equal to or less than ½... -
Page 16: Operating Faults
OPERATING FAULTS The integrated control system is self-checking. The cycle from start up to stability requires 66 seconds. The burner will go into lockout under the following circumstances: a) Flame failure b) The ionization probe is grounded c) Opening of the air pressure switch d) The burner shuts down if gas pressure switch (if used) opens because of insufficient gas pressure in the supply lines. - Page 17 OWNER INFORMATION AND ROUTINE MAINTENANCE SAFETY LOCKOUT This burner is equipped with multiple interlocking safety devices. In the event of a failure in the flame, or any blockage of the combustion air supply, the burner will “lock out” in a safety condition. In such an event, an illuminated red button will show on the front of the red cover.
-
Page 18: Spare Parts List
GAS 750 SPARE PART LIST GAS BURNER SYSTEM RIELLO 40 G750 SPARE PARTS REVISED: 10/01 SPARE SPARE PARTS PARTS DESCRIPTION DESCRIPTION CODE CODE 3007522 Burner back cover 3950471 Short combustion head (280T1) C7020002 Fuse 6.25A 3006697 Drawer assembly elbow Air Switch Electrode assembly C7020008 3006706... -
Page 19: Spare Parts Diagram
GAS 750 EXPLODED PARTS VIEW G750 Rev.2 - 06/10/2002... -
Page 20: Burner Start-Up Form
35 Pond Park Rd. 2165 Meadowpine Blvd. Hingham, MA 02043 Mississauga,On L5H 3R2 Phone: 781-749-8292 Phone: 905-542-0303 Toll Free: 800-992-7637 Toll Free: 800-387-3898 Fax: 781-740-2069 Fax: 905-542-1525 BURNER START- UP FORM Burner S/N. or Model: Appliance: Installer name: Installation date: Company: Address: Phone:... - Page 21 35 Pond Park Road 2165 Meadowpine Blvd Hingham, MA 02043 Mississauga, ON L5N 6H6 Phone 781-749-8292 Phone 905-542-0303 Toll Free 800-992-7637 Toll Free 800-387-3898 Fax 781-740-2069 Fax 905-542-1525 www.riellousa.com www.riellocanada.com Technical Support Hotline 1-800-4-RIELLO 1-800-474-3556 G750 Rev.2 - 06/10/2002...
