Offset Boom Ram - Replacement (cont'd)

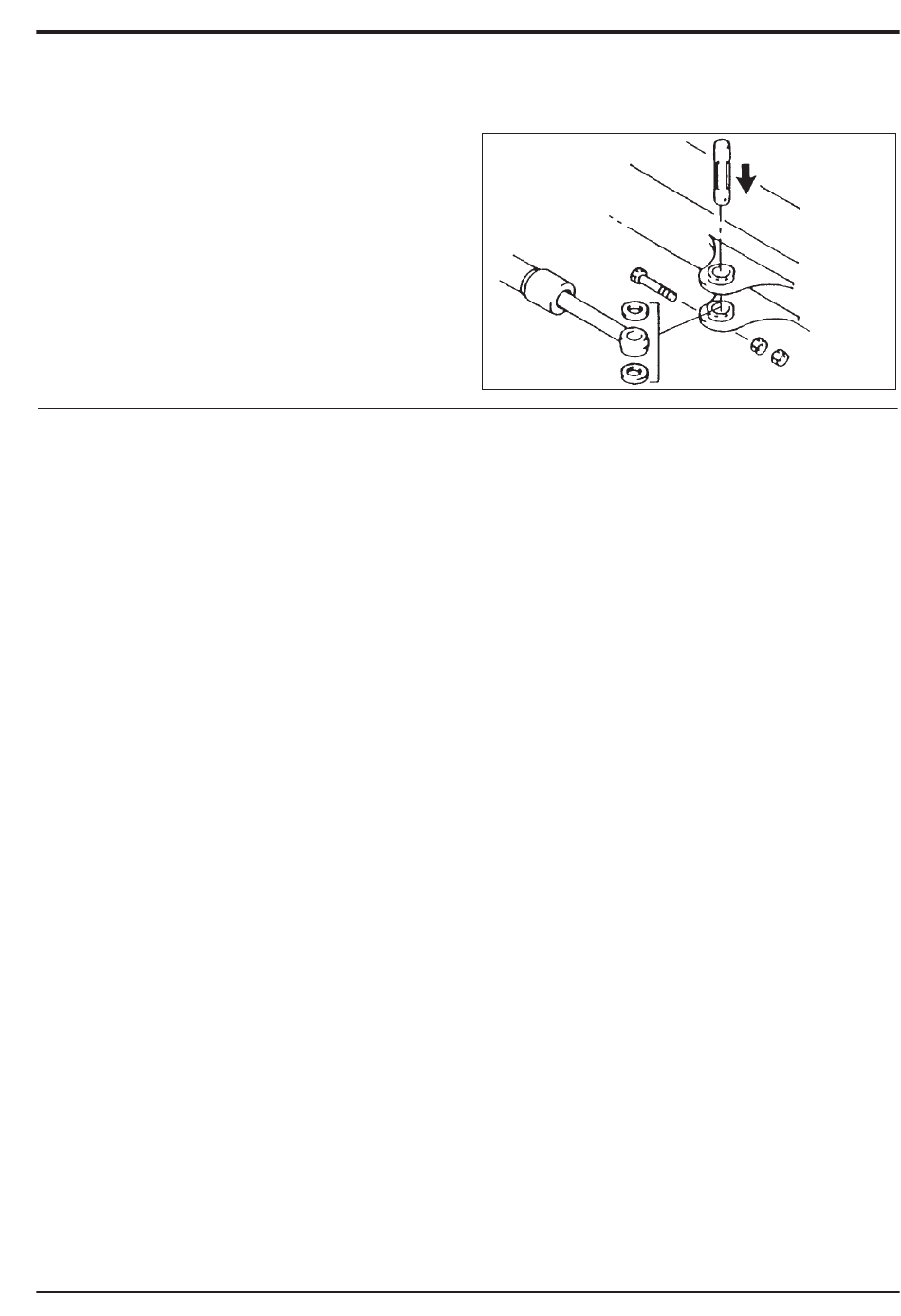

5 Install the pivot pin and secure with the bolt and nuts.
! WARNING !
Metal Splinters
You can be injured by flying metal splinters when driving
metal pins in or out. Use a soft faced hammer or drift to
remove and fit metal pins. Always wear safety glasses.
