  • Page 1 USER MANUAL 15189 Precipitation Sensor...

  • Page 2: Warranty

    Warranty Please note the loss of warranty and non-liability by unauthorized manipulation of the system. You need a written permission of the LAMBRECHT meteo GmbH for changes of system components. These activities must be operated by a qualified technician. The warranty does not cover: Mechanical damages caused by external impacts (e.

  • Page 3: Dimensional Drawing

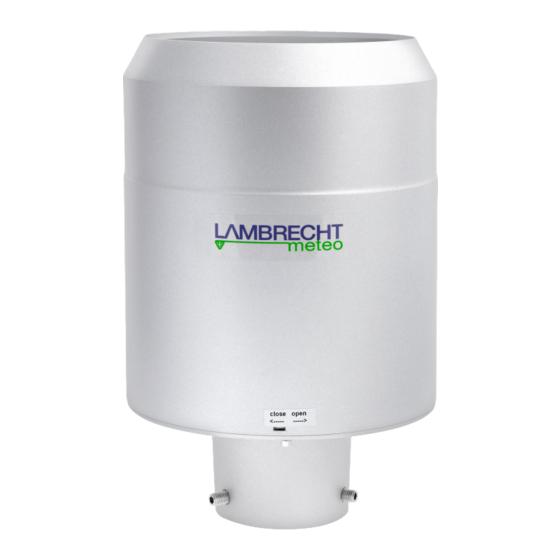

    (e. g. Ser[LOG]). The precipitation sensor 15189 is mounted on a mast, whose outer diameter is 60 mm. For application in snowfall regions the heater equipped model 15189 H ensures all year round measurement. Two separate controlled heating circuits with lowest hysteresis are providing an optimal temperature at which snowing up of the sensor will normally be prevented and evaporation from the heated surfaces will be minimized.

  • Page 4: Installation

    MOUNTING OF THE PRECIPITATION SENSOR The precipitation sensor 15189 must be mounted on a tube or pole with an outside diameter of 60 mm. A metallic extension tube with a minimum length of 100 mm is recommended, if a wooden pole is used. For easy adjustment place a spirit-level on the upper measuring edge.
  • Page 5 LAMBRECHT meteo | 15189 MOUNTING OF THE PROTECTIVE COVERING Messkante Measuring edge When mounting the protective covering, please make sure that the sign “close <-- --> open” (close < - > to) is positioned above the fixing screw. Especially when using Schutzmantel the heated version you have to pay attention to this step.

  • Page 6: Electrical Connection

    For this application the clamps 1 and 6 are used. In this case the current supply of the electronics with 100 µA is not necessary. The LAMBRECHT meteo data logger TROPOS is equipped with such a bounce-free input. Thus the direct output signal of the reed contact is used.

  • Page 7: Initial Operation

    Disposal LAMBRECHT meteo GmbH is listed and registered at the Stiftung Elektro-Altgeräte Register ear under: WEEE-Reg.-Nr. DE 45445814 In the category of monitoring and control instruments, device type: “Monitoring and control instruments for exclusively commercial use”.
  • Page 8 LAMBRECHT meteo | 15189 CONNECTING DIAGR AMS FOR USE OF THE BOUNCE-FREE SIGNAL OUTPUT with heating without heating page – aem.eco...
  • Page 9 LAMBRECHT meteo | 15189 CONNECTING DIAGR AMS TO DATA LOGGER TROPOS with heating without heating aem.eco page –...

  • Page 10: Technical Data

    Supply voltage 24 VDC / 150 W Range of application -20...+70 °C (no icing, no snowdrift) 15189 H W4 Version with 4 cm bucket, heated Data as 00.15189.004000, but with controlled 2-circuit heating (as 15189 H) 00.15189.404000 page – aem.eco...
  • Page 11 Connection cable sensor/ power supply unit; 4-core; L = 7 m *) The intensity compensation is not done in the sensor but in the data logger, e.g. Ser[LOG], met[LOG]. Copyright © 2023 LAMBRECHT meteo GmbH. All rights reserved. 15189_b-de.indd 07.23 Information in this document subject to change without notice.
