Operating Instruction

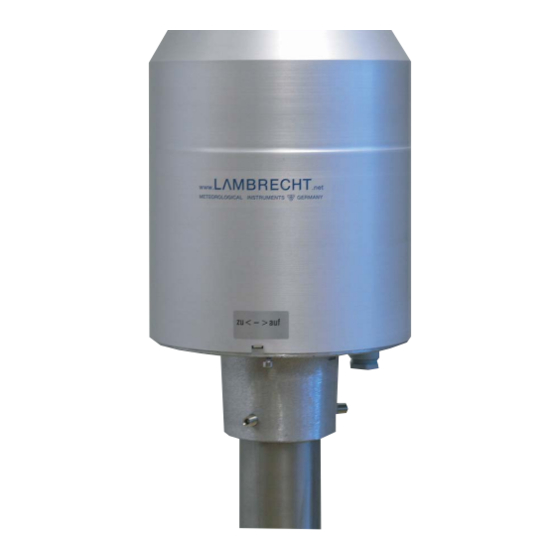

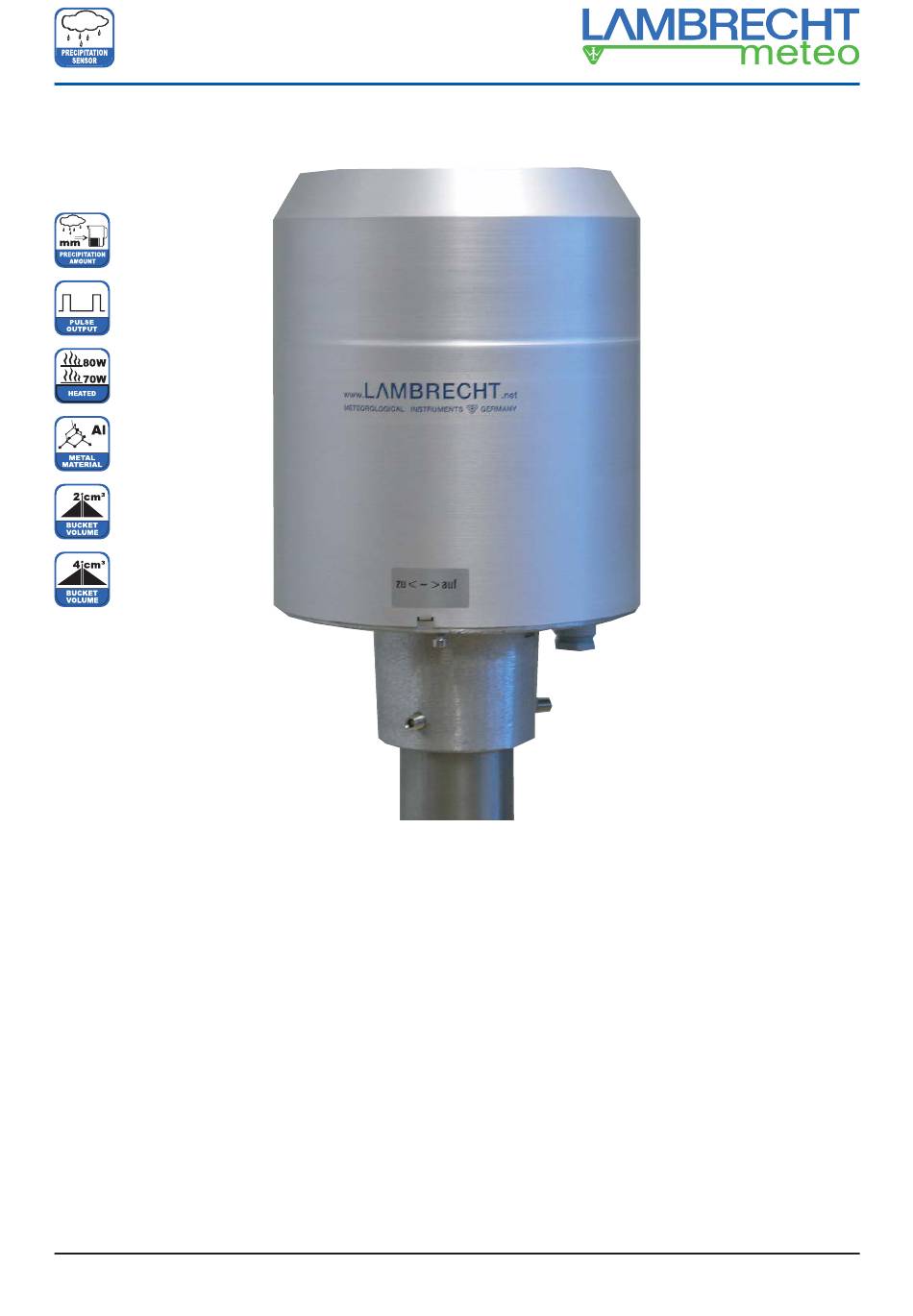

Precipitation Sensors (15189) + (15189 H)
Features
Precipitation sensor for automatic weather stations
•
Exchangeable, weighing tipping bucket system according to Joss-Tognini
•
2 cm³ (2 g water) tipping bucket for precise precipitation measuring in regions with normal rain falls
•
4 cm³ (4 g water) tipping bucket for precise precipitation measuring in regions with heavy rain falls/ tropical rain
•
Connectable to external data logger, e. g. TROPOS
•
Winter-fi t model (15189 H) with electronically controlled 2-circuit heating
•
Weatherproof materials (anodized aluminium, stainless steel) guarantee a long durability
•
Funnel according to the WMO Standard No. 8
•
(15189) Precipitation Sensor
Operating Instructions
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 15189 and is the answer not in the manual?

Questions and answers

Related Manuals for Lambrecht 15189

Summary of Contents for Lambrecht 15189

  • Page 1 4 cm³ (4 g water) tipping bucket for precise precipitation measuring in regions with heavy rain falls/ tropical rain • Connectable to external data logger, e. g. TROPOS • Winter-fi t model (15189 H) with electronically controlled 2-circuit heating • Weatherproof materials (anodized aluminium, stainless steel) guarantee a long durability •...

  • Page 2: Installation

    Attention! Do not damage the measuring edge! If the bucket is tipped, the reed contact that is integrated in Place the precipitation sensor (15189) on the end of the pole the sensor will be closed. This pulse output can be electrically until it fi...
  • Page 3 Operating Instruction Precipitation Sensors (15189) + (15189 H) Attention! In order to protect the tipping bucket Mounting of the protective covering the dirt spiral must be inserted in the collecting When mounting the protective covering, please make sure funnel. that the sign "close <-- --> open" (close < - > to) is positioned above the fi...

  • Page 4: Electrical Connections

    100 μA is not necessary. The LAMBRECHT meteo data logger TROPOS is equipped with such a bounce-free input. Thus the direct output signal of the reed contact is used. An additional benefi t is a low- current effect.

  • Page 5: Initial Operation

    Operating Instruction Precipitation Sensors (15189) + (15189 H) Initial operation Warranty If the sensor system has been completely mounted and Please note the loss of warranty and non-liability by unau- electrically assembled, the sensor will be ready for operation. thorised manipulation of the system. You need a written An operational check has to be performed.
  • Page 6 Operating Instruction Precipitation Sensors (15189) + (15189 H) Connecting diagrams for use of the bounce-free signal output (standard) with heating without heating (15189) Precipitation Sensor Operating Instructions...
  • Page 7 Operating Instruction Precipitation Sensors (15189) + (15189 H) Connecting diagrams to data logger TROPOS with heating without heating (15189) Precipitation Sensor Operating Instructions...

  • Page 8: Technical Data

    (15189 H W4) Variety with 4 cm bucket, heated thorized manipulation of the system. You need a written Date like (15189 W4) 00.15189.004 000, but in additional with permission of the LAMBRECHT meteo GmbH for changes controlled 2-circuit-heating, like (15189 H) of system components.
