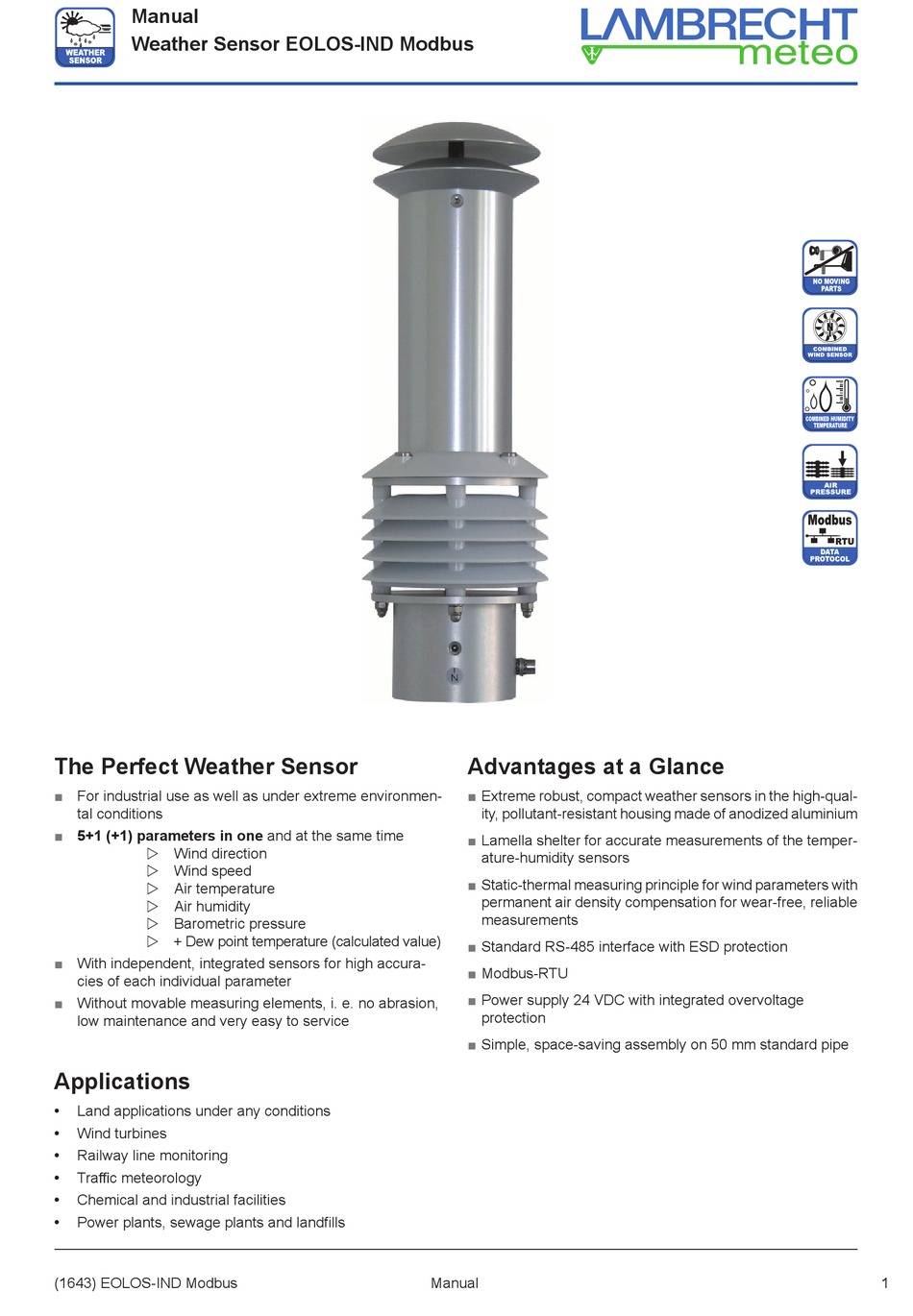

Manual
Weather Sensor EOLOS-IND Modbus
The Perfect Weather Sensor
■
For industrial use as well as under extreme environmen-
tal conditions
■
5+1 (+1) parameters in one and at the same time
Wind direction
Wind speed
Air temperature
Air humidity
Barometric pressure
+ Dew point temperature (calculated value)
■
With independent, integrated sensors for high accura-
cies of each individual parameter
■
Without movable measuring elements, i. e. no abrasion,
low maintenance and very easy to service
Applications
•
Land applications under any conditions
•
Wind turbines
•
Railway line monitoring
•
Traffi c meteorology
•
Chemical and industrial facilities
•
Power plants, sewage plants and landfi lls
(1643) EOLOS-IND Modbus
Advantages at a Glance
■
Extreme robust, compact weather sensors in the high-qual-
ity, pollutant-resistant housing made of anodized aluminium
■
Lamella shelter for accurate measurements of the temper-
ature-humidity sensors
■
Static-thermal measuring principle for wind parameters with
permanent air density compensation for wear-free, reliable
measurements
■
Standard RS-485 interface with ESD protection
■
Modbus-RTU
■
Power supply 24 VDC with integrated overvoltage
protection
■
Simple, space-saving assembly on 50 mm standard pipe
Manual
1

Advertisement

Table of Contents
loading

Related Manuals for Lambrecht EOLOS-IND

Summary of Contents for Lambrecht EOLOS-IND

  • Page 1 Manual Weather Sensor EOLOS-IND Modbus The Perfect Weather Sensor Advantages at a Glance ■ For industrial use as well as under extreme environmen- ■ Extreme robust, compact weather sensors in the high-qual- tal conditions ity, pollutant-resistant housing made of anodized aluminium ■...

  • Page 2: Table Of Contents

    Manual Weather Sensor EOLOS-IND Modbus Content Introduction Warranty Advices Advantages of the Static Measuring Principle Setting to Work Installation Conditions 2.1.1 Generally Tools and Installation Aids Unpacking the Sensor Goods Inspection Power Supply 2.5.1 Power Input 2.5.2 Protection Installation Procedure (Short Instruction) Mounting 2.7.1...

  • Page 3: Introduction

    Measuring Principle compromises have to be found and documented. The sensor EOLOS-IND is a modern system to carry out pre- If the sensor must be installed on a roof top the place of instal- cise and reliable measurements under hardest application and lation must be in the middle of the roof to avoid predominant environmental conditions.

  • Page 4: Tools And Installation Aids

    Please verify that the following parts and documents are (Short Instruction) enclosed: The installation of the sensor involves 3 steps: · 1 sensor EOLOS-IND Modbus · 1 operating manual (1) Mounting the cable at the sensor and if necessary draw the cable through the mast.

  • Page 5: Power And Signal Connection

    The sensor EOLOS-IND is service reduced and designed for sor is mounted far away from the middle line a line parallel a very long lifetime.

  • Page 6: Dimensional Drawings And Electrical Connections

    Manual Weather Sensor EOLOS-IND Modbus Dimensional Drawings and Electrical Connections A ( 1 : 1 ) Nordschraube M8 north screw Erdscraube M6 earthing screw Befestigungsscraube M8 Ansicht Steckerseite fastening screw view male side Aufnahmerohr für den Sensor sensor seat pipe "N"-Schlitz im Mastende bauseits,...
  • Page 7 Manual Weather Sensor EOLOS-IND Modbus Schirm / shield color Farbe 1 2 3 4 Erde / earth IN 24 V DC für Elektronik for electronic (1643) EOLOS-IND Modbus Manual...

  • Page 8: Modbus Protocol

    „most signifi cant byte“ is sent fi rst. For values that go beyond one register (e.g. 32 bit) this is not clearly specifi ed for the Modbus. In these cases (32 bit or 64 bit) the LAMBRECHT Modbus sensors follow the big-endian number format.

  • Page 9: Measured Value And Parameter Register

    1 decimal place The registers addresses 30001 to 35000 apply to all LAMBRECHT meteo Modbus sensors, but are only available or valid if the respective sensor supports the corresponding values. (e.g. a pure wind sensor does not provide any air humidity).

  • Page 10: Holding Register

    Registers 46001 to 49000 can only be read out as blocks! The length of the block or the number of available mapping registers can be found in holding register 46000. Since the addresses from the range 30001 to 35000 are valid for all LAMBRECHT sensors, an address from this range is also representative of a measured value type.
  • Page 11 Manual Weather Sensor EOLOS-IND Modbus Register Parameter name Unit Factor Description Data Func- Storage- address type tion- type code >16 bit 30001 Wind speed 1 decimal place 0x04 Big-Endian WORD instantaneous value 30201 Wind direction ° 1 decimal place 0x04...

  • Page 12: Mapping Register Eolos-Ind Modbus

    Manual Weather Sensor EOLOS-IND Modbus Mapping Register EOLOS-IND Modbus Register Register value Unit Factor Description address 46001 30001 Register address 1 Wind speed instantaneous value 46002 30002 Register address 1 Wind speed mean value since last retrieval 46003 30003 Register address 1...

  • Page 13: Technical Data

    Temperature infl uence of the shelter: ± < 0.1 % r.h. at +10…+40 °C (1643) Static Weather Sensor EOLOS-IND Modbus Shelter inaccuracy: < 4 % r.h. dependant on v > 2 m/s and solar Id-No. 00.16430.001032 radiation at sensor connector;...
