Instructions
- Depending on the frequency converter
version, the physical position of individual
connectors may differ from below diagram.
- Always make sure that the compressor
terminals T1, T2, T3 are connected to the
frequency converter terminals U, V, W
respectively.

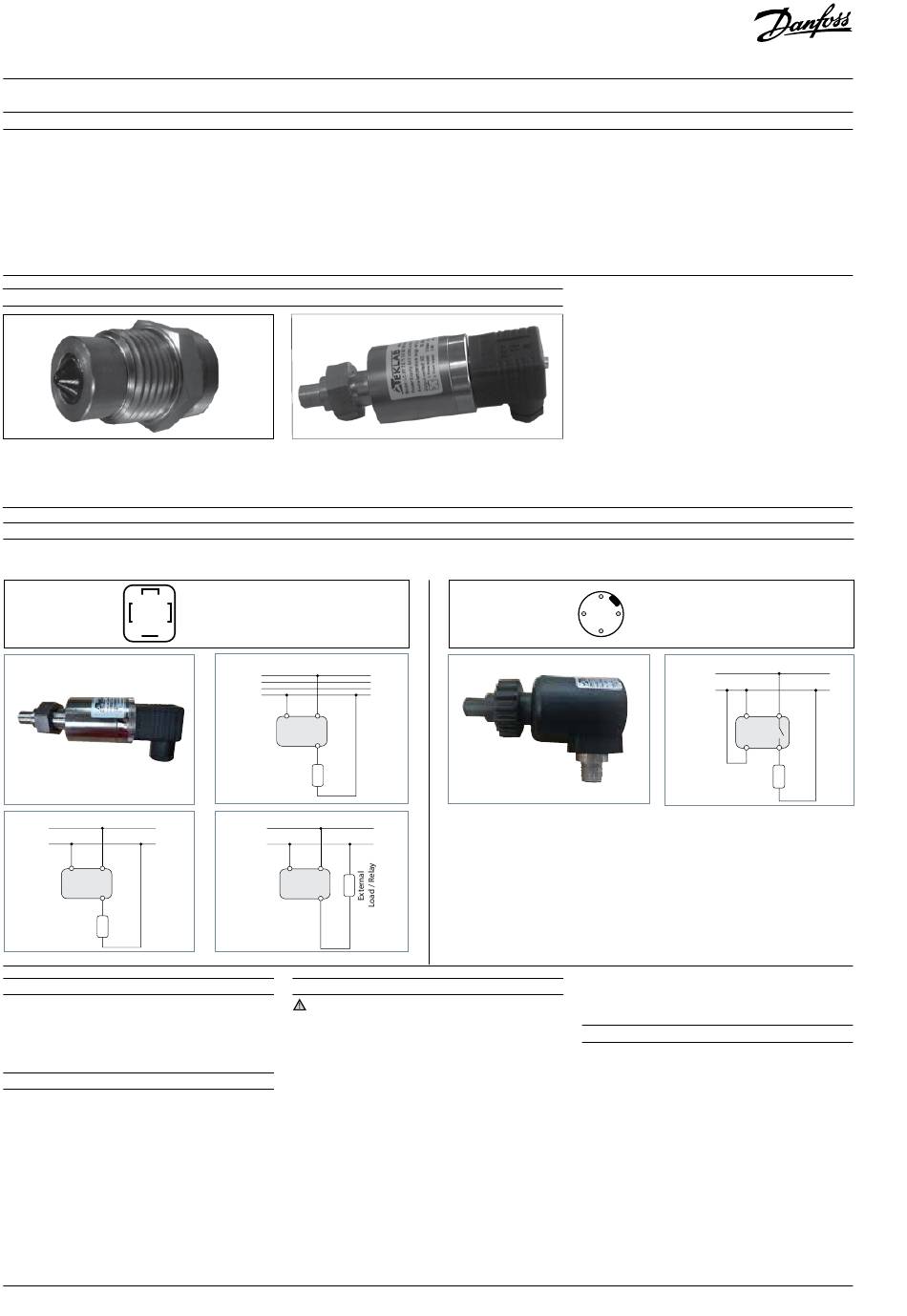

Oil level switch assembly
Install the screw-in optical part on oil level switch
port. (Factory preset for manifold version VLZ
compressor.)
Electrical connections / Wiring for Oil level sensor
See at the correct diagram corresponding to different power supply models for proper wiring
3
2
1
4
LC-XN
24VAC
24VAC
0VAC
1 2
LC-XN 3
External
Load / Relay
1 – Introduction
These instructions pertain to the VLZ028-VLZ065
variable scroll compressors used for refrigeration
systems. They provide necessary information
regarding safety and proper usage of this product.
2 – Handling and storage
• Handle the compressor with care. Use the
dedicated handles in the packaging. Use the
compressor lifting lug and use appropriate and
safe lifting equipment.
• Store and transport the compressor in an
upright position.
• Store the compressor between -35°C and 55°C
/ -31°F and 131°F.
• Don't expose the compressor and the
packaging to rain or corrosive atmosphere.
2 | AN280556890612en-000201 - 8510286P01AA
- The compressor motor cable must be shielded
and the armoured part must be connected to
ground on both cable ends; at the side of the
compressor and at the side of the frequency
converter.
- Use an EMC cable gland for cable installation and
perfect grounding; The metallic terminal box of
Install the electrical part on optical part. Make
sure the cable outlet downside vertically.
* For LC-PR, make sure the cable outlet downside
or upside vertically.
1: Power supply wire
2: Power supply wire
3: Output wire
4: Not used
230VAC
L1
L2
L3
N
1 2
LC-XN 3
External
Load / Relay
24VDC
24VDC
0VDC
1 2
LC-XN 3
3 – Safety measures before assembly
Never use the compressor in a flammable
atmosphere.
• The compressor ambient temperature may not
exceed 50°C during off-cycle.
• Mount the compressor on a horizontal flat
surface with less than 7° slope.
• When installing a compressor model VLZ,
use equipment specifically reserved for HFC
refrigerants, which was never used for CFC or
HCFC refrigerants.
• Use clean and dehydrated refrigeration-grade
copper tubes and silver alloy brazing material.
• Use clean and dehydrated system components.
• The piping connected to the compressor
must be flexible in 3 dimensions to dampen
vibrations.
• The compressor must always be mounted
Basic connections
LC-PR
the compressor has a paint-free surface around
the connection hole for better conductivity.
- A low pressure safety switch is mandatory
to avoid compressor vacuum operation.
- At start-up, verify that the compressor rotates
in the right direction and pumps.
2
1: Power supply (L or 24V)
2: Output NO CONTACT
3 1
3: Power supply (N or 0V)
4: Output COMMON
4
L / 24V
N / 0V
External
using the rubber grommets supplied with the
compressor.
4 – Assembly
• Slowly release the nitrogen holding charge
through discharge and suction ports.
• Connect the compressor to the system as soon
as possible to avoid oil contamination from
ambient moisture.
• Avoid material entering into the system while
cutting tubes. Never drill holes where burrs
cannot be removed.
• Braze with great care using state-of-the-art
technique and vent piping with nitrogen gas
flow.
• Connect the required safety and control
devices.
© Danfoss | DCS (CC) | 2022.11
1 4
LC-PR
3 2
Load
