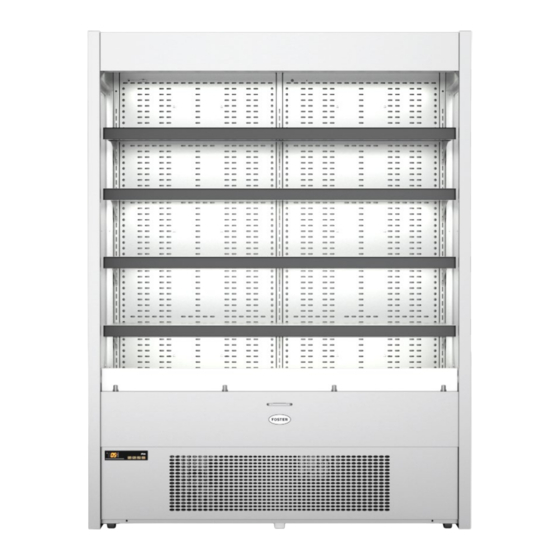

Foster Multideck FMPRO900NG Service Manual
Hide thumbs
Also See for Multideck FMPRO900NG:
- Original operation instructions (6 pages) ,
- Original instructions manual (8 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Foster Multideck FMPRO900NG
Summary of Contents for Foster Multideck FMPRO900NG

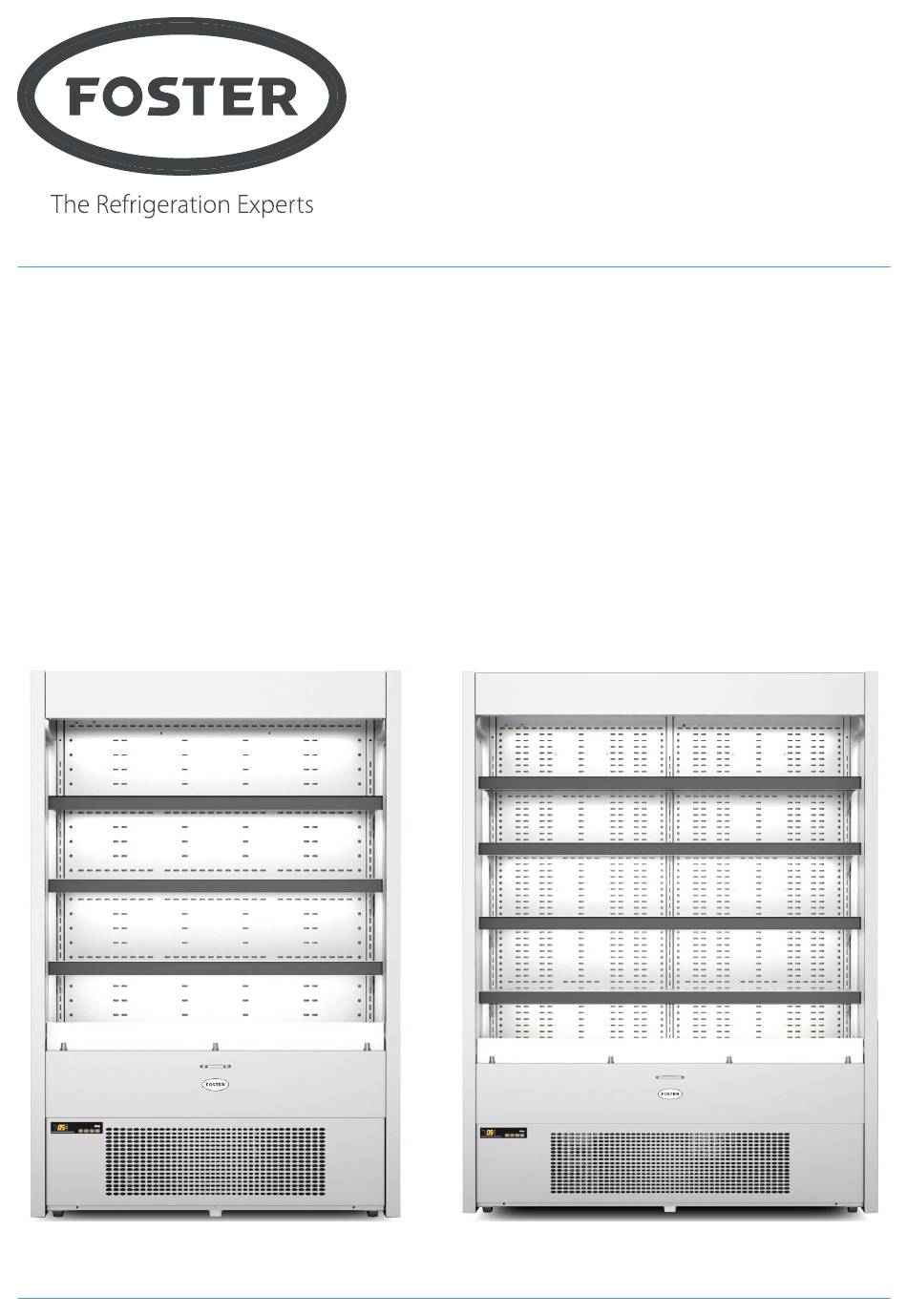

- Page 1 Service Manual Foster Multideck FMPRO900NG, FMSLIM900NG, FMPRO1200NG, FMSLIM1200NG, FMPRO1200B, FMPRO1500NG, FMSLIM1500NG, FMPRO1800NG, FMSLIM1800NG, FMPRO900RF, FMSLIM900RF, FMPRO1200RF, FMSLIM1200RF, FMPRO1500RF, FMSLIM1500RF, FMPRO1800RF, FMSLIM1800RF.
- Page 2 Welcome to your interactive Foster service manual. Here’s how it works: To return to the contents at any point, click on the Foster logo at the bottom of every page. Operating Instructions Service Function - Parameters...
-
Page 3: General Information
All installations must conform to local and municipal regulations and directives. In the case of doubt contact a Foster authorised dealer or the Foster Technical Department. The information contained in this manual is current at the time of publication and is subject to change without notice. - Page 4 Locating the appliance After unpacking, clean (cleaning directions supplied within this manual) and allow the appliance to stand for 60 minutes before turning on. Ensure the appliance is situated on a firm, level surface, away from both hot and cold air sources, as this will affect its performance.
- Page 5 To amend the Set Point press and hold button 1, then while keeping button 1 pressed use buttons 2 and 3 to set the desired value. If the Set Point cannot be adjusted to the value required please contact your authorised Foster dealer for advice When button 1 is released the new value will be stored automatically.
-
Page 6: Internal Light
Please contact Foster U.K. for supply of these. Do not block air vents with product. A minimum of 50mm should be maintained between the top of the product and the shelf above. -
Page 7: Service Function
Service Function Controller Menu’s The controller contains 2 menu levels, user level and service level. User Level Menu User level settings are accessed by pressing buttons 2 and 3. To view the selected parameter press and hold button 1. Where adjustment is required and is permitted use buttons 2 and 3 while continuing to hold button 1. - Page 8 Service Level Parameters Description: Readout scale. Minimum limit for Temperature Set Point (SP) Maximum limit for Temperature Set Point (SP) Temperature setpoint to be achieved. Temperature control mode. Off / On thermostat differential. Compressor rest time. Compressor run time with faulty T1 probe. Compressor off time with faulty T1 probe.
- Page 9 Description: Standby button operation. Door switch operation. Configurable digital input operation. Light control mode. Auxiliary relay 1 operation. Auxiliary relay 2 operation. Auxiliary compresor start delay. Temperature sensor(s) type. Air temperature probe (T1) offset. T2 probe operation. T2 probe temperature offset. T3 probe function.
-
Page 10: Other Information
Service. E1 - Air probe has failed.. Call your authorised dealer or Foster Service to arrange for this to be replaced. During this time the appliance cannot maintain an accurate temperature and all product should be removed and the appliance switched off. -
Page 11: Probe Information
Probe Information The probe is a type 10k NTC. The probes are identical in characteristics with the T1 and T2 identification markings and different colours being for ease of identification and not for functional reasons. Please refer to the image below for probe identification. Probe Indentification LAEx x-xx... - Page 12 Refrigerant Charge The refrigerant charge weight can be found on the serial label within the appliance. Where this is not available please refer to the table below. The information below is correct time of printing but is subject to change without prior notice. FMSLIM700NG R134a 550gms...
-
Page 13: Maintenance
Maintenance Condenser Cleaning The condenser is a Stayclear condenser which does not require cleaning as regularly as a traditional finned condenser may. Care should be taken when cleaning the condenser. Never use a wire brush, abrasive or corrosive materials to clean the condenser. Multidecks - Service Manuall... - Page 14 Wiring Diagrams FMPRO700NG, FMSLIM700NG, FMPRO700NG, FMPRO900NG. www.fosterrefrigerator.com...
- Page 15 FMPRO1200NG, FMSLIM1200NG, FMPRO1500NG, FMPRO1500NG, FMPRO1800NG, FMSLIM1800NG Multidecks - Service Manuall...
- Page 16 FMPRO700NG, FMSLIM700NG, FMPRO700NG, FMPRO900NG with Undershelf Lighting www.fosterrefrigerator.com...
- Page 17 FMPRO1200NG, FMSLIM1200NG, FMPRO1500NG, FMPRO1500NG, FMPRO1800NG, FMSLIM1800NG with Undershelf Lighting Multidecks - Service Manuall...
- Page 18 By Appointment to Her Majesty Queen Elizabeth II Suppliers of Commercial Refrigeration Foster Refrigerator, King’s Lynn For more information: For service and spares: +44 (0) 1553 698485 For service +44 (0) 1553 780333 regional@foster-gamko.com service@foster-gamko.com fosterrefrigerator.com For parts +44 (0) 1553 780300 parts@foster-gamko.com...
