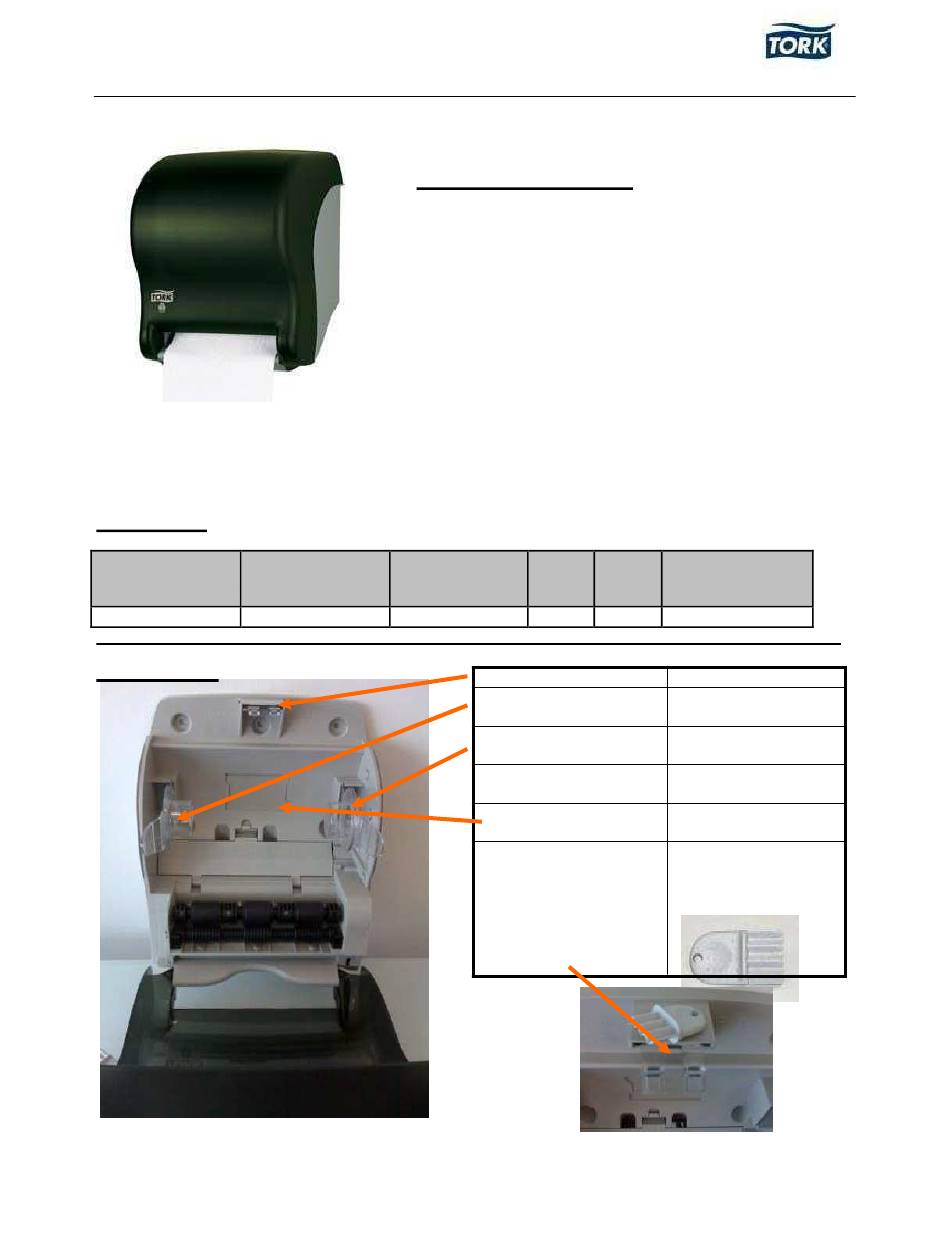

W ashroom Dispenser Service and Parts Manual
Tork Electronic Hand Towel Roll Dispenser
86ECO
Specifications
Dispenser Size
11.78" X 9.12" X 14.39" 12.75 x 10.75 x 14.5
Dispenser Parts
Essity Internal
Essity Internal
Tork Hand Towel Roll Dispenser (Electronic, Touch- Free):
H21 System: 86ECO (Smoke)
Roll Towel Product Options:
RB350A (Tork Advanced, 350', White)
RB600 (Tork Advanced, 600', White)
RB800 (Tork Advanced, 800', White)
RB351 (Tork Universal, 350', White)
RB6002 (Tork Universal, 600', White)
RB8002 (Tork Universal, 800', White)
RB8004 (Tork Universal, 800', White)
RB10002 (Tork Universal, 1000', White)
RK350A (Tork Universal, 350', Natural)
RK600E (Tork Universal, 600', Natural)
RK800E (Tork Universal, 800', Natural)
RK8002 (Tork Universal, 800', Natural)
RK1000 (Tork Universal, 1000', Natural)
214250 (Tork Universal, 425', Natural W hite)
214404 (Tork Advanced, 1,000', W hite)
214650 (Tork Universal,425' White)
218004 (Tork Universal, 800', Natural W hite)
Outer Case Size
10073286622461
Case
Case
SCC Code
Weight
Cube
4.1
1.15
Part Description
LOCK FINGERS
LEFT HUB ARM
RIGHT HUB ARM
86ECO COVER
BUSINESS CARD
HOLDER
#14 DISP KEY AND
LOCK FINGERS
1 of6
Revision Date: 10-8-19
Pallet Configuration
(ti x hi)
9 x 9 = 81 units
Replacement SKU
LOCKINSERT
86ECO COVER
#14 KEY
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tork 86ECO
Summary of Contents for Tork 86ECO
- Page 1 W ashroom Dispenser Service and Parts Manual Tork Electronic Hand Towel Roll Dispenser 86ECO Revision Date: 10-8-19 Tork Hand Towel Roll Dispenser (Electronic, Touch- Free): H21 System: 86ECO (Smoke) Roll Towel Product Options: RB350A (Tork Advanced, 350’, White) RB600 (Tork Advanced, 600’, White) RB800 (Tork Advanced, 800’, White)
- Page 2 W ashroom Dispenser Service and Parts Manual Tork Electronic Hand Towel Roll Dispenser 86ECO Revision Date: 10-8-19 Part Description with Replacement Instructions Parts with SKUs listed are available for order from as of the revision date on the manual. Contact an Essity Sales Rep or the Essity Quality Coordinator to order these parts.
- Page 3 W ashroom Dispenser Service and Parts Manual Tork Electronic Hand Towel Roll Dispenser 86ECO Revision Date: 10-8-19 Dispenser Installation and Mounting Mounting Height The lower part of the dispenser should be mounted 53” (135 cm) from the floor. Consult all appropriate building codes for mounting requirements that meet ADA or Title 24 guidelines.
- Page 4 W ashroom Dispenser Service and Parts Manual Tork Electronic Hand Towel Roll Dispenser 86ECO Revision Date: 10-8-19 Battery Installation Paper Loading Instructions 1. Open the cover and prepare to load paper on hubs. 2. Free paper from roll, and position roll so paper drapes from underneath the back of the roll.
- Page 5 W ashroom Dispenser Service and Parts Manual Tork Electronic Hand Towel Roll Dispenser 86ECO Revision Date: 10-8-19 Troubleshooting This dispenser operates in towel hang mode only. A towel will be present at all times. The mechanism will be activated and dispense a new towel only after the present towel has been torn off and removed.
- Page 6 Washroom Dispenser Service and Parts ManuaI Tork Electronic Hand ToweI Roll Dispenser Revision Date: 10-8-19 86ECO 86ECO Tork Electronic HWRT Dispenser Backplate Template F------------_:_:- 6 of6 Essity Internal Essity Internal...
