INSTALLATION
Step 6
Mounting the
Connection Hub
Make sure that your
!
system tested OK before
proceeding
Once you have decided on
the ideal location for the
Connection Hub, unplug the
12V DC Wall-Adapter from
the electrical outlet and
disconnect the Wall-Mount
Sensor and the MicroFlasher
cables from the Connection
Hub. (See Figure 8) Also
remove the Sensor Cable
from the removable connec-
tor on the Wall-Mount
Sensor. (See Figure 9)
The Connection Hub can be
either mounted on a wall
using screws or placed on a
shelf using the included
adhesive feet.
(See Figure 10)
CONTINUED

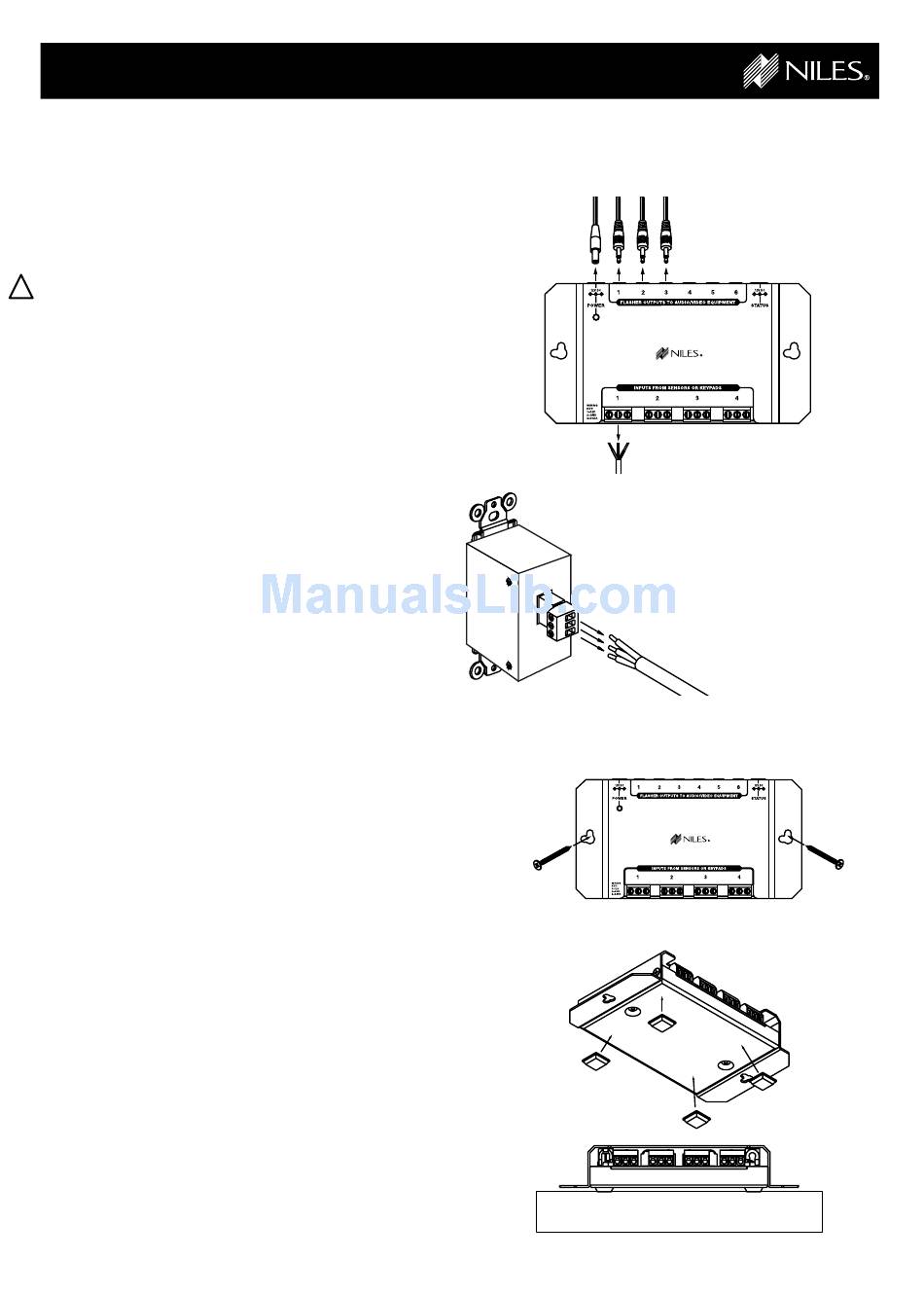

Figure 8
Figure 9
Figure 10
A: Wall mounting
B: If you desire to
shelf mount the
Connection Hub,
stick the included




adhesive backed
feet on the bottom
of the unit and
place it on the shelf
11
REMOTE CONTROL ANYWHERE! KIT
CONNECTION HUB
A
REMOTE CONTROL ANYWHERE! KIT
CONNECTION HUB
B
