Overview

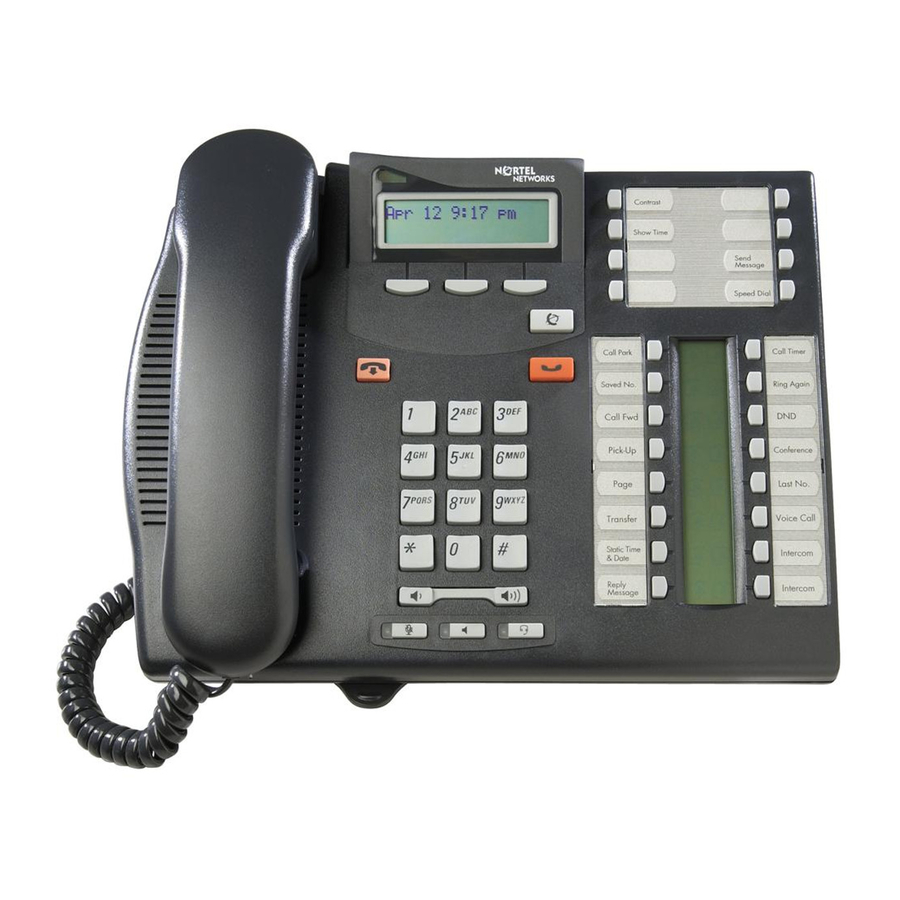

Device Overview

  1. Telephone light
    Flashes for incoming calls.
    Lights up when Message Waiting Indication (MWI) is supported by system software. Contact your system administrator for more information.
  2. Adjustable tilt display
    Shows the time and date, call and feature information.
  3. Display buttons
    The label for display buttons appear in capital letters on the bottom of the display. Display buttons change with each feature you use.
    Overview - Display
  4. Release button
    Ends an active call or feature.
  5. Dial pad
  6. Volume control
    Adjusts the handset, handsfree, headset and ringer volume.
  7. Audio cluster buttons
    Mute button
    Turns the microphone off or on when you are on a call.
    Handsfree button
    For more information on using the handsfree feature, refer to the "Handsfree calls" section in this card.
    Headset button
    Turns the headset mode on.
  8. Feature button
    Starts or ends a feature.
  9. Hold button
    Places calls on hold.
  10. Memory buttons
  11. Memory and line buttons
  12. Indicators
    Appear next to active line and memory buttons.
  13. Number card
    Write your extension number on this card.
  14. Feature card plate
    Storage compartment for your feature card.

Cord connections

  1. Slide feature card plate down.
    Cord connections - Step 1
  2. Cord connections - Step 2 - Connect cord to handsetDesk mount option
    Route line cord through the stand.
    Headset option
    Connect cord to headset.
    Connect cord to handset.
  3. Connect line cord to wall jack.
    Cord connections - Step 3 - Connect to wall jack

Wall mount without a telephone stand

  1. Connect cords to the telephone, refer to "Cord connections" illustrations.
    Wall mount without a telephone stand - Step 1
    Press here to remove the stand
  2. Connect line cord to wall jack.
    Place the telephone onto the wall mount plate and slide it down.
    Wall mount without a telephone stand - Step 2

Wall mount with a telephone stand

  1. Use the key hole slots on the stand to mark the location for the screws.
    Tighten screws for a secure fit.
    Wall mount with a telephone stand - Step 1
  2. Mount the stand as shown.
    Connect cords to the telephone, refer to "Cord connections" illustrations.
  3. Mount the telephone onto the screws and slide it down.
    Connect line cord to wall jack.
    Wall mount with a telephone stand - Step 2

Telephone

Display contrast level

Adjust the contrast of your display.

  1. Press
  2. Press UP or DOWN to view the levels.
  3. Press OK to select a level.

Language choice


Select Primary Language for the telephone display.

Select Alternate Language for the telephone display.

Select Alternate Language 2 for the telephone display.

Select Alternate Language 3 for the telephone display.

Ring type

Select a different ring for your telephone.

  1. Press .
  2. Press , , , or NEXT to hear the different ring types.
  3. Press OK to store the ring type.

Button inquiry

Check what is programmed on your buttons.

  1. Press .
  2. Press the button(s) that you want to check.
  3. Read the display. Button assignment examples are shown below.
    Button inquiry - Button assignment examples
  4. Press or when finished.

Button labels

Use the three button label strips on the telephone to show what is programmed on the buttons.

Spare button label strips are provided with your telephone.

How to label your buttons

  1. Remove the plastic lens and button label strips from the telephone.
  2. Write the name of each button on the button label strip.
  3. Insert the button label strip back on the telephone.
  4. Insert plastic lens, matching the tabs on the lens with the notches on the telephone.
    How to label your buttons - Matching the tabs

Tip
Use the Desktop Assistant application to customise button label strips for your telephone.

Go to www.avaya.com and download the Desktop Assistant application to your personal computer.

Memory buttons

Memory buttons are buttons not assigned as line, intercom or handsfree buttons.

Memory buttons store internal and external numbers or features to give you one touch dialling or feature activation.
Memory buttons

  1. Memory buttons without indicators for autodial numbers and features.
  2. Memory, line or intercom buttons with indicators.
    Depending on system software and feature activation, the type of indicators shown for memory, line or intercom buttons will vary.
    Examples:

**Note
In older system software versions, these six buttons are assigned as memory buttons only.
Indicators ( ) will appear for internal autodial numbers only.

Programming memory buttons

You can program a memory button with a new number or feature.

External autodial

  1. Press .
  2. Press a memory button.
  3. Dial the external number.
  4. Press OK to store the number.
  5. Label your new button.

Internal autodial

  1. Press .
  2. Press a memory button.
  3. Dial the extension number.
  4. Press OK to store the number.
  5. Label your new button.

Features

  1. Press .
  2. Press a memory button.
  3. Press and enter the feature code.
  4. Press OK to store the feature code.
  5. Label your new button.

How to erase memory buttons

  1. Press .
  2. Press a memory button.
  3. Press OK to erase the button.

Making and answering calls

Making calls

There are many ways to make a call, depending on your telephone programming and the type of call.

External calls using line buttons

  1. Lift the handset.
  2. Press a line button. The line button indicator ( or )turns on.
  3. Dial the external telephone number.

External calls using intercom buttons

  1. Lift the handset.
  2. Press an intercom button. The intercom button indicator ( or ) turns on.
  3. Enter a line pool access code.
  4. When you hear an external dial tone, dial the external telephone number.

Contact your system administrator for a list of line pool codes.

Internal calls using intercom buttons

  1. Lift the handset.
  2. Press an intercom button. The intercom button indicator ( or ) turns on.
  3. Dial the extension number. Contact your system administrator for a list of extension numbers.

Answering calls

When your telephone rings and the display light flashes or when an intercom or line button indicator ( or ) flashes:

  • Lift the handset.
    OR
    Press the button with the flashing indicator ( before you lift the handset.

How to hold calls

  • While on a call, press . The indicator ( or ) for the line on hold will flash.
  • To retrieve a held call, press the line button with the flashing indicator ( or ).
  • Calls are put on hold automatically when you switch from one line to another.

How to mute calls

  • While on a call, press to turn the microphone off. The light flashes when the microphone is off.
  • The microphone remains off for your current call and all other calls until you press again to turn the microphone on.
  • Use on handset, handsfree or headset calls.

More on making and answering calls

Handsfree calls

Your system administrator must enable the handsfree feature for your telephone in system programming.

  • Press the handsfree button on your telephone to make or answer a call.
  • To switch to handsfree when you are on a call, press the handsfree button and replace the handset. Lift the handset to switch back.

Depending on the system software, the handsfree feature will be assigned to one of these buttons on your telephone.
Handsfree calls - buttons

How to determine the handsfree button assignment on your telephone

  • Press .
  • If you hear dial tone, is the assigned handsfree button on your telephone.
  • If the display shows , your system administrator must enable the handsfree feature for your telephone in system programming.
  • If you hear an error tone, the handsfree feature is assigned to button 10 on your telephone.

Headset calls

  • Press to activate the headset mode. When the light is on, press a line or intercom button to make a call.
  • Press to answer a call when the telephone rings or when an intercom or line button indicator ( or ) flashes.
  • To switch to your headset when you are on a call, press and replace the handset. Lift the handset to switch back.


Avaya does not support the connection of a headset to the 7316E telephone, unless handsfree is enabled within the system programming. If handsfree is not enabled, certain call handling features may not work as intended.

Other documents

Read the Telephone Feature Card for more information on using telephone features.
