ATAGO PAL-COFFEE Instruction Manual

The warranty period extension method 1 year
The warranty period will be extended from 1 year to 2 years when you register customer
information. ATAGO Logger NFC can also be downloaded at the same time.
https://www.atago.net/ur/index.php?l=en
Trouble scanning the code? Access this link

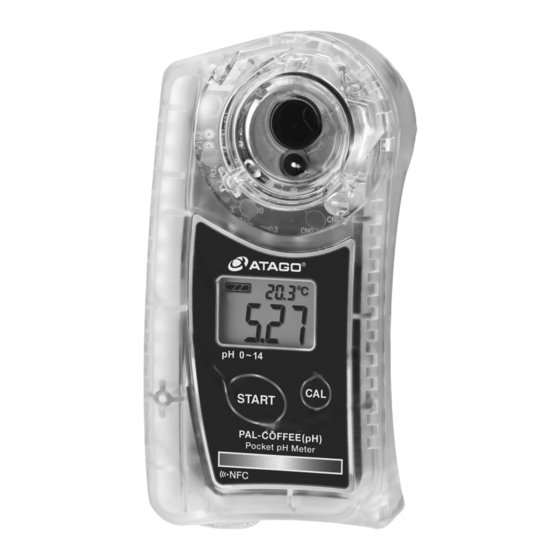

Digital Hand-held "Pocket" pH Meter
PAL-COFFEE(pH)
Cat.No. 4313
Parts
LCD
Measurement results and remaining
battery charge are displayed.
START button (Power button)
Press to take measurements and hold
down to turn off the display.
Battery compartment
Place and remove batteries from here.
Contents
Main unit...1 Instruction Manual (this book)...1 Calibration Report ...1
Standard solution for calibration......... pH4.01...1 pH6.86...1 pH9.18...1
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Introduction
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.
A small amount of solution may leak from the reference electrode. This is normal and does not affect the unit's performance.

Important: Please Read and Follow Instructions Carefully Before Initial Use

Place plenty of tap water and leave it for a while.
※Dry electrodes will result in abnormal measurement values.

Safety Instructions

●
Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may
result in personal injury or property damage.
WARNING
◇Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be
aware of the hazards of such chemicals and emergency response guidelines.
◇ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during
the use of the instrument.
◇Do not drop the instrument or subject it to strong physical shock.
◇Do not attempt to repair, modify, or disassemble the instrument.
CAUTION ◇Do not use metal tools, such as a spoon, as they may scratch
the glass electrode, resulting in erroneous measurements.
◇Carefully read this manual to have basic knowledge of
◇Do not measure organic solvents, oils, adhesives, cement,
the function of each component.
alcohol, surfactants,, polymer solvents or hydrogen flouride.
◇ATAGO is not liable for any loss and damage caused by
◇Do not use water above 50℃ to rinse the instrument.
the measurement and use of this instrument.
◇Only use the specified battery type. Observe proper polarities,
◇ATAGO shall not be held responsible for any or all
properly aligning the anodes and cathodes.
damages that may result from using the instrument for
◇Store the instrument away from direct sunlight/heat sources
those other than its intended purpose (measurement of
and excessive amounts of dust/debris.
pH level of a liquid sample).
◇Do not expose the instrument to a rapid change in ambient
◇If the standard solution for calibration comes in contact
temperature.
with hands or skin, immediately rinse with plenty of
◇Do not subject the instrument to strong vibration.
water.
◇Do not subject the instrument to extreme cold temperature.
◇The glass electrode is fragile; be careful not to damage
◇Do not place the instrument under anything heavy.
it. Glass shards may cause injury.
◇Loosen the battery compartment cover for air transportation.
〈International Protection Classification IP65〉
◇The instrument is water-resistant, not waterproof, and should not be submerged.
〈Chemical Resistance of Body Case〉
◇The body case is made of PC. Do not expose it to water vapor or solvents. See the list of "Solvents Harmful to Body
Case."
4313-E01
Select the Calibration option, either 1 or 2, according to values of the standards.
2 years
1.
Press and hold the
CAL button for 5 seconds
(while the unit is powered on).
QR code
-1-
CAL
Calibration point display
R
Instruction Manual
Calibration points -1-
Calibration can be done at 3 points (pH 4.01, pH 6.86, and pH 9.18).
If the sample is above pH 6.9, calibration can be done at 2 points (pH 6.86 and pH 9.18).
If the sample is less than pH 6.9, calibration can be done at 2 points (pH 4.01 and pH 6.86).
Sample stage Press the CAL button to perform calibration for either pH 4.01, pH 6.86, or pH 9.18.
＊If the power is not turned on, press the START button to turn on the power, then perform the following procedure.
Apply samples on the electrode in
the center of the sample stage.
Calibration points -2-
Calibration can be done at 3 points (pH 4.01, pH 7.00, and pH 10.01).
If the sample is above pH 7.0, calibration can be done at 2 points (pH 7.00 and pH 10.01).
If the sample is less than pH 7.0, calibration can be done at 2 points (pH 4.01 and pH 7.00).
Glass electrode
Press the CAL button to perform calibration for either pH 4.01, pH 7.00, or pH 10.01.
Reference electrode ＊If the power is not turned on, press the START button to turn on the power, then perform the following procedure.
1.
Place enough
standard calibration
solution to cover the
CAL button
entire electrode
Press to perform calibration.
section.
START button & CAL button
Press to set date, time,
and delete data history.
Lanyard hole
At least 0.6mL of standard
solution for calibration.
AAA batteries...2
PAL Silicone Cover...1
【Caution】
◇Perform calibration before initial use and at least once a month to maintain precision and accuracy.
◇Measure a standard calibration solution. When the measurement value falls outside of the expected range, perform
calibration.
◇When the time lapsed since last measurement is more than 2 weeks, it is recommended to calibrate the instrument.
◇If the ambient temperature changes during the daily work with this instrument, it needs the calibration again.
Additional refills of standard solutions for calibration can be purchased from ATAGO (sold separately).
Contact ATAGO for recommended standard solutions.
[Part No.] Standard solution for calibration
tap water
RE-99210 pH4.01 (volume: 500mL per bottle)
RE-99211 pH6.86 (volume: 500mL per bottle)
RE-99212 pH7.00 (volume: 500mL per bottle)
RE-99213 pH9.18 (volume: 500mL per bottle)
＊If the power is not turned on, press the START button to turn on the power, then perform the following procedure.
1.
Place enough sample to
cover the entire electrode
section.
At least 0.6ｍL of sample
【Caution】
◇Do not splash water above 50℃. The plastic may warp, which may compromise the water resistance.
・When measuring hot samples, place only the necessary amount and do not let it overflow from the sample stage well.
・When hot water is necessary to clean off hardened samples, use water-soaked gauze around the sample stage and keep
hot water away from the body case.
◇In rare cases, a measurement value may be displayed even if there is not sample placed on the electrode section. In such
instances, simply place some sample on the electrode section and press the START button. Measurements will be taken normally.
◇When measuring samples such as strong acids and high alkaline, take a quick measurement and rinse off any remaining
sample with tap water.
<LCD Auto Shut-off>
The instrument will turn itself off after 5 minutes of inactivity. To manually turn it off, hold down the START button for more
than 2 seconds.

How to Select a Calibration Option

2. 3.
Press the START button to Select Press the CAL button
a Calibration point. to confirm the selection.
-1- -2-
End
CAL
Calibration points Calibration points
END display
-1- -2-
4.01 7.00 10.01
4.01 6.86 9.18
Calibration
2. 3.
＜When performing more accurate calibration＞
Press the After the display flashes "---",the
CAL button. standard calibration solution value will
Perform the following procedure (a) and
flash approx 10 times, then change to
(b) before step 2.
a fixed display of the value.
a. b.
Wipe away the
Calibration is complete
standard calibration
solution for calibration so as
solution.
to cover the entire electrode
section again and leave it for
6.86
CAL approx. 30 seconds.
7.00
Flash Light up
（The displayed value is an example.）
Calibrate at another point.
＊After calibration is completed, press START
button to confirm if the measured value is the
same with the buffer solution.
If not, perform calibration again.
[Part No.] Standard solution for calibration
RE-99214 pH10.01 (volume: 500mL per bottle)
RE-99230 10mL pH4.01/pH6.86/pH9.18
RE-99231 10mL pH4.01/pH7.00/pH10.01
Measurement
Repeat until measurement
values are stabilized.
2.
3.
Press the
After the ＜When measuring with higher precision＞
START button. display flashes
Perform the following procedure (a) and
"---",the
(b) before step 2.
measurement
value is displayed.
a. b.
Wipe away the
sample. as to cover the entire
electrode section again.

Calibration and Measurement Guidelines

◇When the electrodes are dry after long
period of not being used
4.
Calibration.
Tap water
Place plenty of tap water
and leave it for a while.
Now you can
proceed to
◇The insufficient amount of sample will result
Calibration.
in abnormal measurement or calibration.
At least 0.6mL.
【Caution】
◇ Please remove the tape in the battery compartment before first use.
◇ Fasten the battery compartment cover tightly to prevent water ingress or poor connection,
which will cause erroneous measurements. Push the cover in firmly and turn.
◇ When the O-ring on the cover is dirty or damaged, the water resistance may be compromised.
◇ When the battery icon indicates the low power level (
brand new set of AAA alkaline batteries (1.5V).
◇ Static images may occasionally appear on LCD. Such retained pixel charges do not indicate a
faulty display, consume the battery power, or affect the instrument's performance in any way.
◇ Check the expiration dates on batteries before purchase.
◇Calibrate the instrument after the batteries are replaced.
Place the standard
1. 2.
Insert a coin in the Insert batteries,
groove on the battery observing the correct
compartment cover. Turn polarity.
the coin counterclockwise
to remove the cover.
At least 0.6mL of standard
solution for calibration.
【Caution】
◇ Do not scratch the electrode.
◇ The instrument is water-resistant, not waterproof, and
should not be submerged.
１．Wipe off the sample.
（Remove the sample
with a plastic pipette.）
Place the sample so
１．Wipe off the sample.
（Remove the sample
with a plastic pipette.）
The following messages alert the user when an operation has failed.
The battery is low.
At least 0.6ｍL of sample Display will turn off after 10 seconds.
L o
The sample measured is outside the
measurement range.
L L L
The START button was pressed with nothing
on the electrode section.
The sample measured is outside the
measurement range.
H H H
The START button was pressed with nothing
on the electrode section.
◇ Be careful not to
◇Do not damage the electrodes.
scratch the electrodes.
Do not use metal tools.
◇ Initial measurements may fluctuate with hot or cold samples.
Wait for the instrument to acclimate to the sample
temperature, then press the START button. Alternatively,
press the START button multiple times until measurements
become stable.

Replacing the Batteries

), replace both batteries with a
O-ring
3. 4.
Align the cover and push Close the battery
it down. compartment cover by
pushing the cover in with a
coin in the groove and
turning it clockwise until it
stops.
*Turning excessively may
cause malfunction.
Groove
Open Close

Cleaning

For samples containing oils or fats:
Clean oily residues on the electrode section with
ethyl alcohol. Then rinse the electrode section with
Ethyl
alcohol
tap water throughly.
２．Apply tap water. Wipe off the tap water.
（Repeat several times.）
Or
２．Rinse with tap water. 3．Wipe off the tap water.

Error Messages

The START button was pressed with nothing
on the electrode section.
E E E
The CAL button was pressed with nothing
on the electrode section.
A A A
The detection temperature was over 45℃. A
H H.H
pH value was displayed (accuracy is not
guaranteed).
LL.L The detection temperature was less than
5℃. A pH value was displayed (accuracy is
not guaranteed).
