Brix
Brix represents the weight of sucrose in 100 grams of sucrose solution as percentage by
weight. When other dissolved solids are present in the solution, Brix conversion may be applied.
Brix is a measure of the total dissolved solids in a solution and indicates the combined
concentration of all soluble substances, such as sugar, salt, protein, and acids.
Automatic Temperature Compensation
The readings are corrected, based on the temperature of the prism, within the automatic temperature compensation range.
【Caution】
◇ Measurements may fluctuate with hot or cold samples. Wait for approximately 20 seconds to press the START button.
Measurements will stabilize once the instrument acclimates to the sample temperature.
Storage and Maintenance
Store the instrument in
a dry place away from
direct sunlight.
Exposure to humidity
and heat may damage
the instrument.
The instrument is warranted for one year from the date of purchase. This warranty is void if the instrument shows evidence of the
following. Send the included batteries as well if they are still in use.
Having been disassembled by unauthorized personnel
Damages to the prism and/or sample stage
Water damage or having been dropped
Repair services are available for a fee after the warranty expires.
Contact an ATAGO authorized service center for service and support.
Please have the serial number information ready when contacting a service center.
Measurement range
Brix 0.00 to 25.00%
(Automatic Temperature Compensation)
TDS 0.00 to 22.00%
(Automatic Temperature Compensation)
Temperature 10.0 to 100℃
Resolution
Brix 0.01%
TDS 0.01%
Temperature 0.1℃
Accuracy
Brix ±0.10%
TDS 0.15%
Temperature ±1℃
Automatic temperature 10 to 100℃
compensation range
Ambient temperature
10 to 40℃
range
Sample volume
At least 0.3mL
Measurement time
Approx 5 seconds
(or longer until sample temperature
stabilizes)
The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.
TEL: 91-22-2854-4915 / 4071-3232
Headquarters: The Front Tower Shiba Koen,
customerservice@atago-india.com
23rd Floor 2-6-3 Shiba-koen, Minato-ku,
Tokyo 105-0011, Japan
TEL: 66-21948727-9 ,66-21171549
TEL: 81-3-3431-1943 overseas@atago.net
customerservice@atago-thailand.com
http://www.atago.net/
TEL: 55 16 3913-8400
customerservice@atago-brasil.com
TEL: 1-425-637-2107
customerservice@atago-usa.com
TEL: 39 02 36557267
customerservice@atago-italia.com
The instrument has a scale for
measuring the TDS (total dissolved
solid) for coffee. The scale indicates
the TDS% (g/100g) for coffee.
Do not use organic
Clean and dry the sample
solvents (paint
stage thoroughly, following
thinner, benzene,
the "Cleaning" instructions.
gasoline, etc.) on the
Store the unit away from
plastic body case.
direct sunlight at a stable
temperature with as little
fluctuation as possible.
Repair and Warranty
Having been misused and/or operated outside the environmental specifications
Leakage from batteries other than those included with the unit

Specifications

Backlight
The backlight stays on for 30 seconds after
any button is pressed.
Maximum number of
100
data history
Output
NFC Forum Type 4 Tag
ISO/IEC 14443 Type A
Output category : Date Time, Brix [%], TDS [%],
Temp [degC]
(e.g.) 2017/08/17 09:30:45, 1.35, 1.07, 20.4
Power supply
Two (2) AAA alkaline batteries
International
IP65
Protection class
Dimensions and weight
55 (W) x 31 (D) x 109 (H)mm, 100g (main unit only)
TEL: 86-20-38108256
info@atago-china.com
TEL: 7-812-777-96-96
info@atago-russia.com
TEL: 234-707-558-1552
atagonigeria@atago.net
TEL: 7-727-257-08-95
info@atago-kazakhstan.com
TDS

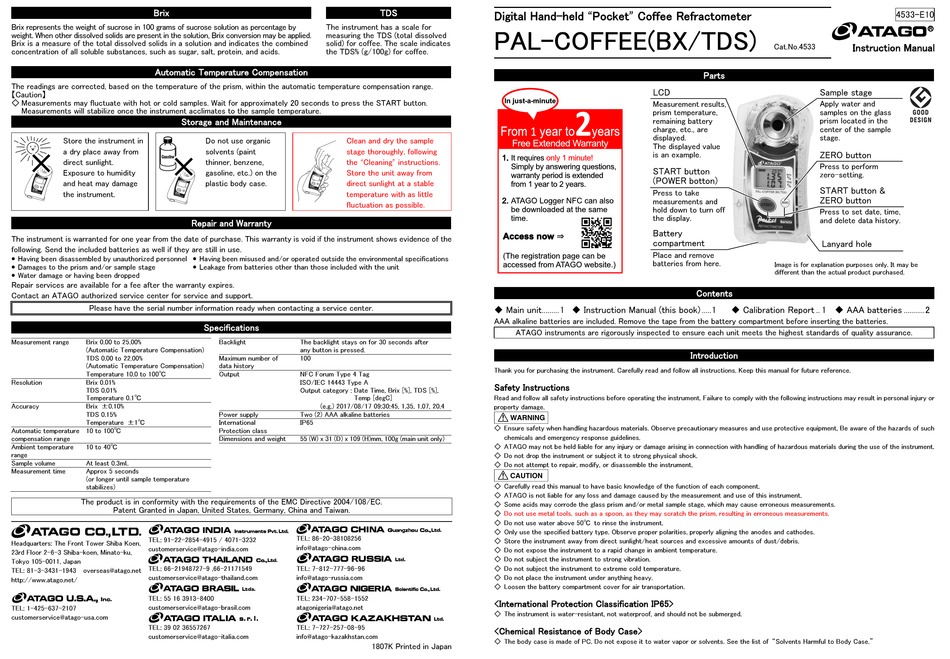

Digital Hand-held "Pocket" Coffee Refractometer
PAL-COFFEE(BX/TDS)
 Main unit ......... 1  Instruction Manual (this book) ..... 1
AAA alkaline batteries are included. Remove the tape from the battery compartment before inserting the batteries.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.

Safety Instructions

Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may result in personal injury or
property damage.
◇ Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be aware of the hazards of such
chemicals and emergency response guidelines.
◇ ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during the use of the instrument.
◇ Do not drop the instrument or subject it to strong physical shock.
◇ Do not attempt to repair, modify, or disassemble the instrument.
◇ Carefully read this manual to have basic knowledge of the function of each component.
◇ ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
◇ Some acids may corrode the glass prism and/or metal sample stage, which may cause erroneous measurements.
Do not use metal tools, such as a spoon, as they may scratch the prism, resulting in erroneous measurements.
◇ Do not use water above 50℃ to rinse the instrument.
◇ Only use the specified battery type. Observe proper polarities, properly aligning the anodes and cathodes.
◇ Store the instrument away from direct sunlight/heat sources and excessive amounts of dust/debris.
◇ Do not expose the instrument to a rapid change in ambient temperature.
◇ Do not subject the instrument to strong vibration.
◇ Do not subject the instrument to extreme cold temperature.
◇ Do not place the instrument under anything heavy.
◇ Loosen the battery compartment cover for air transportation.
<International Protection Classification IP65>
◇ The instrument is water-resistant, not waterproof, and should not be submerged.
<Chemical Resistance of Body Case>
◇ The body case is made of PC. Do not expose it to water vapor or solvents. See the list of "Solvents Harmful to Body Case."
1807K Printed in Japan
Cat.No.4533

Parts

LCD
Sample stage
Measurement results,
Apply water and
prism temperature,
samples on the glass
remaining battery
prism located in the
charge, etc., are
center of the sample
displayed.
stage.
The displayed value
is an example.
ZERO button
Press to perform
START button
zero-setting.
(POWER botton)
START button &
Press to take
ZERO button
measurements and
hold down to turn off
Press to set date, time,
the display.
and delete data history.
Battery
compartment
Lanyard hole
Place and remove
batteries from here.
Image is for explanation purposes only. It may be
different than the actual product purchased.

Contents

 Calibration Report .. 1  AAA batteries ........... 2

Introduction

4533-E10
Instruction Manual
