ATAGO PAL-Cleaner Instruction Manual

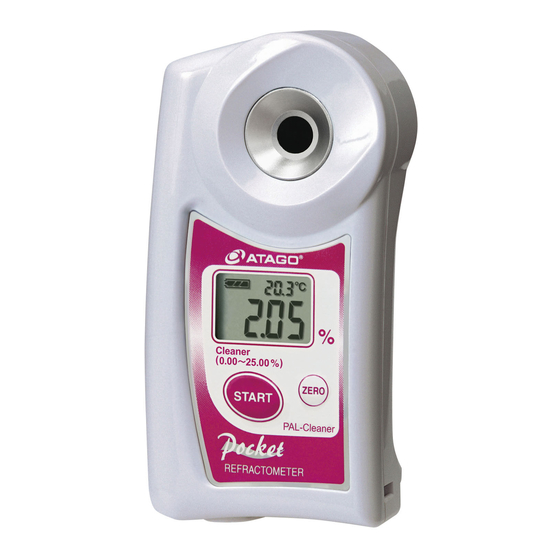

PAL PAL PAL PAL- - - - Cleaner Cleaner Cleaner Cleaner
Pocket" Cleaner Pocket Pocket Cleaner Cleaner Refractometer Cleaner Refractometer Refractometer Refractometer
"Pocket
LCD
Measurement results, prism
temperature, and remaining battery
charge are displayed.
The displayed value is an example.
START button
Press to take measurements and
hold down to turn off the display.
Battery compartment
Place and remove batteries
from here.
Main unit.........1 Instruction Manual (this book) .....1
AAA alkaline batteries are included. Remove the tape from the battery compartment before inserting the batteries.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.
Safety Instructions Safety Safety Safety Instructions Instructions Instructions
Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may result in personal injury or
property damage.
◇ Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be aware of the hazards of such
chemicals and emergency response guidelines.
◇ ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during the use of the instrument.
◇ Do not drop the instrument or subject it to strong physical shock.
◇ Do not attempt to repair, modify, or disassemble the instrument.
◇ Carefully read this manual to have basic knowledge of the function of each component.
◇ ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
◇ Some acids may corrode the glass prism and/or metal sample stage, which may cause erroneous measurements.
◇ Do not use metal tools, such as a spoon, as they may scratch the prism, resulting in erroneous measurements.
◇ Do not use water above 30℃ to rinse the instrument.
◇ Only use the specified battery type. Observe proper polarities, properly aligning the anodes and cathodes.
◇ Store the instrument away from direct sunlight/heat sources and excessive amounts of dust/debris.
◇ Do not expose the instrument to a rapid change in ambient temperature.
◇ Do not subject the instrument to strong vibration.
◇ Do not subject the instrument to extreme cold temperature.
◇ Do not place the instrument under anything heavy.
◇ Loosen the battery compartment cover for air transportation.
< < < < International Protection Classification IP65 International Protection Classification IP65 International Protection Classification IP65> > > > International Protection Classification IP65
◇ The instrument is water-resistant, not waterproof, and should not be submerged.
< < < < Chemical Resistance of Body Case Chemical Resistance of Body Case> > > > Chemical Resistance of Body Case Chemical Resistance of Body Case
◇ The body case is made of ABS resin. Do not expose it to water vapor or solvents. See the list of "Solvents Harmful to Body Case."
(ES) Equipements Scientifiques SA - Département Bio-tests & Industries - 127 rue de Buzenval BP 26 - 92380 Garches
Tél. 01 47 95 99 90 - Fax. 01 47 01 16 22 - e-mail: bio@es-france.com - Site Web: www.es-france.com
Cat.No.4536
Parts Parts Parts Parts
Contents Contents
Contents Contents
Calibration Report .. 1
Introduction Introduction
Introduction Introduction
Instruction Manua Instruction Manual l l l Instruction Manua Instruction Manua
Sample stage
Apply water and samples on the glass prism
located in the center of the sample stage.
ZERO button
Press to perform zero-setting.
Lanyard hole
AAA batteries ...........2
4536-E04
