Intelix AVO-VGA2-WP
Introduction

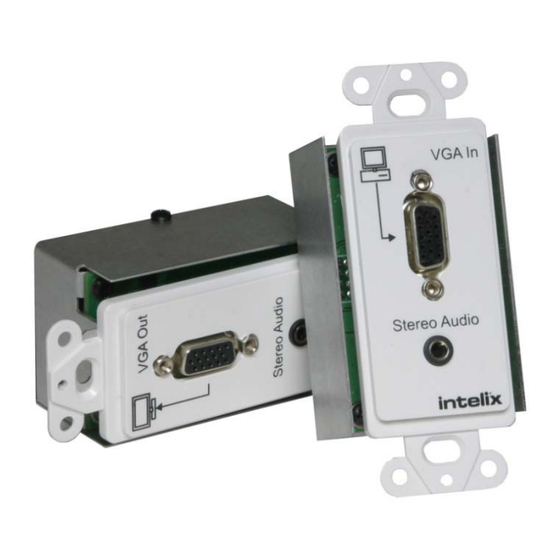

The Intelix AVO-VGA2-WP balun set transmits VGA video and stereo audio passively
over two standard unshielded twisted pair cables, such as Cat 5, Cat 5e, or Cat 6. The unit
eliminates costly and bulky cable while extending transmission distances.
One twisted pair cable carries the audio path and a second twisted pair cable carries the
video path, thereby allowing audio and video to be transmitted to two separate locations.
Pre-Installation
Note: The AVO-VGA2-WP does not support VGA handshaking and control
signals. Therefore, it is necessary to set the monitor attributes prior to installing the
balun set. First connect the source (typically a computer) directly to the destination
(typically a monitor) with a standard VGA cable. After doing so, set the monitor
attributes to the required settings (i.e., resolution, color, etc.). For best results, also set
the contrast and brightness to the maximum level.
Caution: Do not attempt to disassemble or alter the balun housing. There are no
user-serviceable parts inside the unit. Doing so will void your warranty.
Installation Manual
Advertisement
Related Manuals for Intelix AVO-VGA2-WP
Summary of Contents for Intelix AVO-VGA2-WP
- Page 1 Installation Manual Introduction The Intelix AVO-VGA2-WP balun set transmits VGA video and stereo audio passively over two standard unshielded twisted pair cables, such as Cat 5, Cat 5e, or Cat 6. The unit eliminates costly and bulky cable while extending transmission distances.
- Page 2 Doing so may damage the unit or any connected equipment. Ensure all connected twisted pair cabling is straight-through (point-to-point). 4. Connect the send balun (AVO-VGA2-WP-S) to the audio/video ports of the source equipment. Tighten the mounting screws on each balun.
- Page 3 Troubleshooting Symptom Probable Causes Possible Solutions Image distorted or Weak or distorted Change the screen refresh rate of the video skewed sync signal source to the next higher or lower setting Adjust the Sync switch on both the send and receive baluns No image Attach or detach the grounding screw on either...
- Page 4 AVO-VGA2-WP-R: one receive balun AVO-VGA2-WP-S: one send balun Distances and picture quality may be affected by cable grade, cable quality, source and destination equipment, RF and electrical interference, and cable patches. Intelix specifications are based on straight-through cabling with standard-grade Cat 5. Intelix...
