Intelix AVO-V2A2 Installation Manual

Specifications
Specifications subject to change without notice.
Maximum Distance* 2200 feet
Maximum Video Input 1.1 Vp-p
Bandwidth (video) DC to 8 MHz
Bandwidth (audio) 20 Hz to 20 kHz
Impedance (video) 75 ohms
Impedance (audio) 600 ohms
Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection Greater than 40 dB @ 8 MHz
Unshielded Twisted Pair Maximum capacitance: 20 pf/foot
Cabling Specifications Impedance: 100 ohms @ 1 MHz
(24 gauge or lower solid Attenuation: 6.6 dB/1000 ft. @ 1 MHz
copper) Cat 3, Cat 5, Cat 5e, Cat 6, Cat 7 compatible
Connectors Four (4) RCA to one (1) RJ45
RJ45 Pinout Video 1: 7 & 8, pair 4
Audio 1: 1 & 2, pair 2
Video 2: 4 & 5, pair 1
Audio 2: 3 & 6, pair 3
Temperature Operating: 32 to 131 F (0 to 55 C)
Storage: -4 to 185 F (-20 to 85 C)
Humidity: up to 95%
Enclosure Black plastic
Dimensions 4.3" x 2.5" x 1"
Weight 0.2 lbs (3.2 oz.)
Ordering Information AVO-V2A2: single AVO-V2A2 balun in bulk packaging
AVO-V2A2-PAC: two AVO-V2A2 baluns in retail-ready packaging
Warranty 2 years
* Distances and picture quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches. Intelix specifications are
based on straight-through cabling with standard-grade Cat 5.
Contact Information
Intelix
2222 Pleasant View Road
Middleton, WI 53562
Toll-free: 866-4-MATMIX
Phone: 608-831-0880
Fax: 608-831-1833
www.intelix.com
AvoCat
MHz
wiring system. The balun provides the necessary impedance matching and supports two-way
baseband audio/video transmission over a four pair UTP cable, thus presenting an ideal solution
for videoconferencing applications.
Installation
Caution:
To install an AVO-V2A2 balun, perform the following steps:
1. Turn off power and disconnect the video equipment by following the manufacturer's
instructions.
2. Make certain that outlets and cross connects to which you will connect the AVO-
V2A2 are configured properly and labeled appropriately to identify the circuit.
Caution:
3. Verify the desired twisted pairs are not being used for other LAN or telephony
equipment.
4. Connect the RCA inputs from the source equipment to one of the two baluns. Two
AVO-V2A2s are needed—one at each end of the run—and are interchangeable.
Caution:
5. Connect a 4-pair Cat 5 cable from the RJ45 8-position modular jack of the AVO-
V2A2 to a structured cable, such as Cat 5.
6. Connect the second balun's RCA inputs to the destination equipment.
7. Connect the 4-pair Cat 5 cable from the RJ45 8-position modular jack of another
AVO-V2A2 to the structured cable attached to the first balun.
8. Power on the source and destination equipment and test for correct operation.

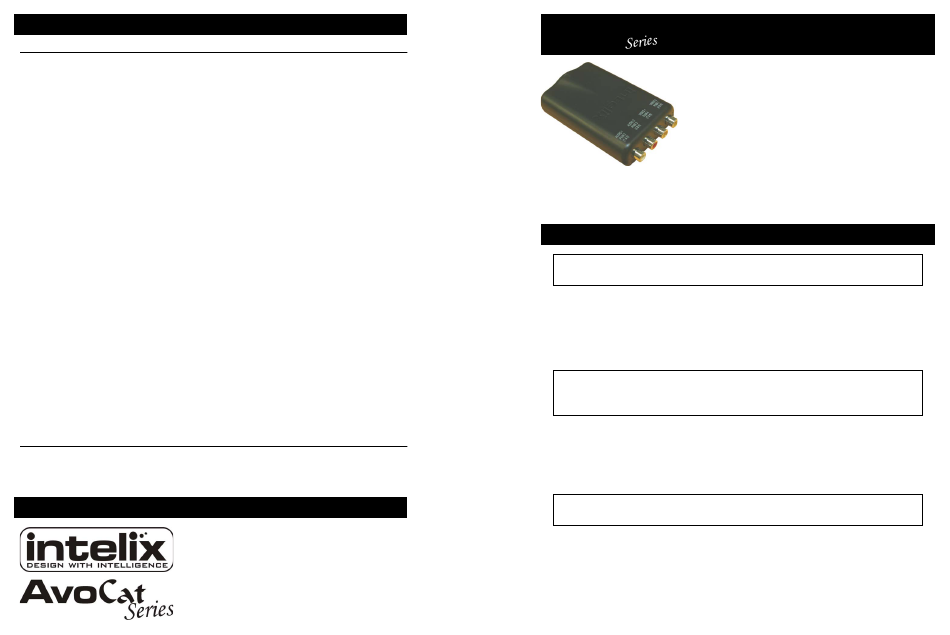

Intelix AVO-V2A2 Video and Stereo Audio Balun
Ins Ins Ins Ins Inst t t t t allation Manual allation Manual allation Manual allation Manual allation Manual
The AVO-V2A2 balun is designed for audio/video
equipment using RCA connectors for both video and
audio. The AVO-V2A2 balun is or use with standard
unshielded twisted pair (UTP) cabling, such as Cat 5.
Used in pairs, AVO-V2A2 baluns allow VCRs,
camcorders, closed-circuit televisions, PC-based
teleconferencing, and other baseband audio/video
equipment to be connected via a building's structured
Do not attempt to open the balun housing. There are no user-serviceable parts
inside the AVO-V2A2. Opening the unit will void your warranty.
Do not connect the AVO-V2A2 to a telecommunication outlet wired to
unrelated equipment. Making such a connection may damage the equipment
and/or balun. Please ensure all wiring is "straight-through."
Do not mount the balun over equipment ventilation openings. Covering the
openings may cause the equipment to overheat.
