Intelix AVO-V3AD-WP110-UK
Installation Manual
Introduction
The Intelix AVO-V3AD-WP110-UK wallplate balun transmits one
component video and one digital audio signal over standard unshielded
twisted pair cabling, such as Cat 5 or Cat 6. Used in pairs or with a
compatible Intelix balun, the AVO-V3AD-WP110-UK transmits signals
up to 500 feet and is ideal for corporate A/V, churches, schools,
auditoriums, and almost any other situation involving audio/video
distribution.

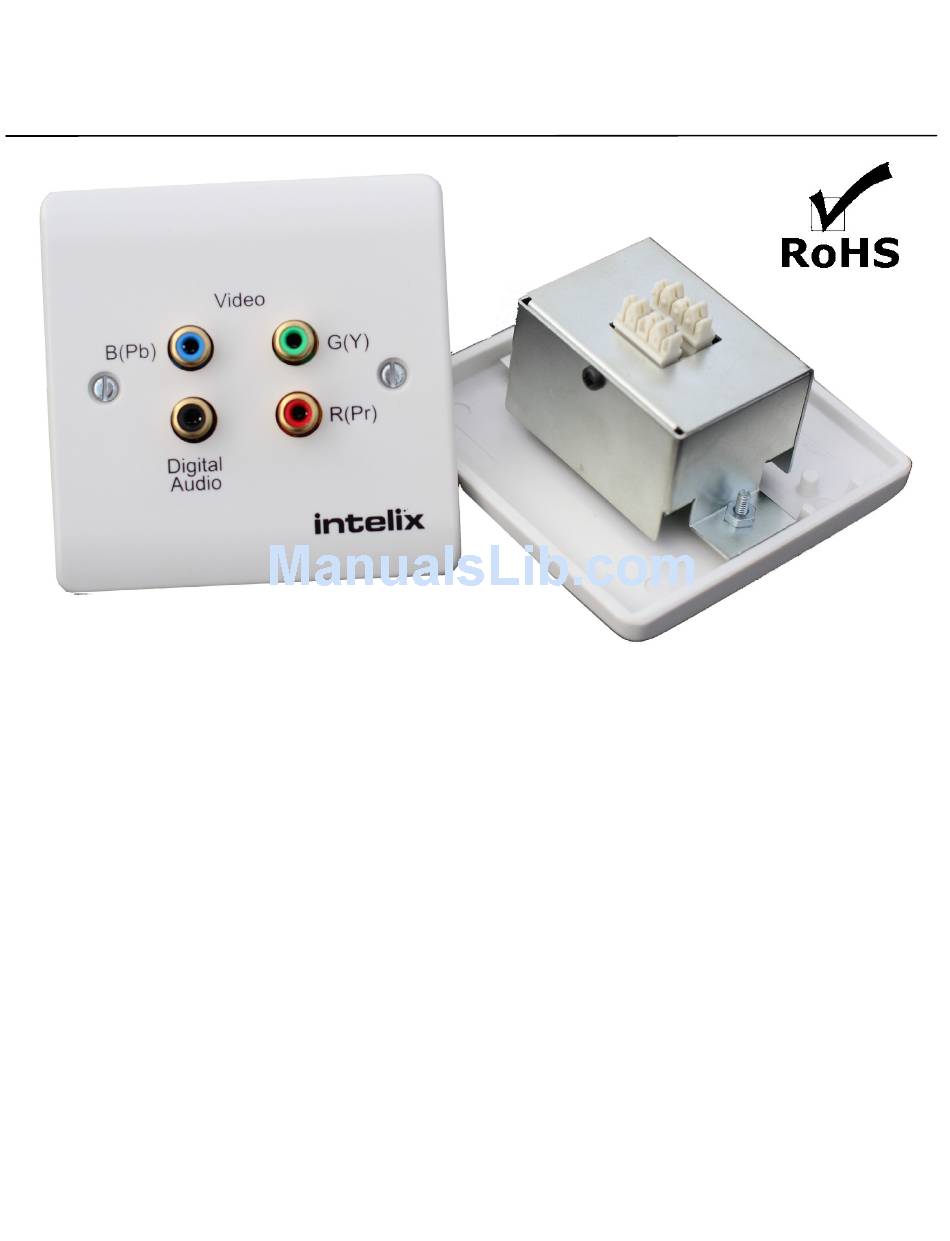

The AVO-V3AD-WP110-UK features four female RCA connectors on
the front and a 110 punch-down termination on the rear. The unit
includes a 110 termination tool.
The Intelix AvoCat Series of baluns is the ideal solution for sending
audio and video over structured cabling. When signal quality matters,
choose Intelix.
