ATAGO PAL-Grape Must Instruction Manual

Automatic Temperature Compensation

The readings are corrected, based on the temperature of the prism, within the automatic temperature compensation range.
【Caution】
◇ Measurements may fluctuate with hot or cold samples. Wait for approximately 20 seconds to press the START button.
Measurements will stabilize once the instrument acclimates to the sample temperature.

Storage and Maintenance

Store the instrument in a dry place away
from direct sunlight. Exposure to humidity
and heat may damage the instrument.

Repair and Warranty

The instrument is warranted for one year from the date of purchase. This warranty is void if the instrument shows
evidence of the following. Send the included batteries as well if they are still in use.
Having been disassembled by unauthorized personnel
•
Damages to the prism and/or sample stage
•
Water damage or having been dropped
•
Repair services are available for a fee after the warranty expires.
Contact an ATAGO authorized service center for service and support.
Please have the serial number information ready when contacting a service center.
Measurement range T.A.1990 : 0.0 to 26.0% (10.0 to 40.0˚C)
Brix : 0.0 to 53.0% (10.0 to 100.0˚C)
Resolution T.A.1990 : 0.1% Temperature : 0.1˚C
Brix : 0.1%
Accuracy T.A.1990 :±0.2% Temperature : ±1˚C
Brix :±0.2%
Automatic temperature T.A.1990 : 10 to 40˚C
compensation range Brix : 10 to 100˚C
Ambient temperature 10 to 40˚C
range
Sample volume At least 0.3mL
Measurement time Approx. 3 seconds
Backlight The backlight stays on for 30
seconds after any button is pressed.
The product is in conformity with the requirements of the EMC Directive 2004/108/EC.
Patent Granted in Japan, United States, Germany, China and Taiwan.
TEL: 91-22-2854-4915 / 4071-3232
Headquarters: The Front Tower Shiba Koen,
customerservice@atago-india.com
23rd Floor 2-6-3 Shiba-koen, Minato-ku,
Tokyo 105-0011, Japan
TEL: 66-21948727-9 ,66-21171549
TEL: 81-3-3431-1943
customerservice@atago-thailand.com
overseas@atago.net
http://www.atago.net/
TEL: 55 16 3913-8400
customerservice@atago-brasil.com
TEL: 1-425-637-2107
customerservice@atago-usa.com
TEL: 39 02 36557267
customerservice@atago-italia.com
Clean and dry the sample stage thoroughly,
following the "Cleaning" instructions.
Store the unit away from direct sunlight at a
stable temperature with as little fluctuation
as possible.
Having been misused and/or operated outside the environmental
•

specifications

Leakage from batteries other than those included with the unit
•
Specifications
Maximum number 100
of data history
Output NFC Forum Type 4 Tag
ISO/IEC 14443 Type A
Output category
Date Time, T.A.1990 [%], Brix [%] ,Temp [degC]
(e.g.) 2017/08/17 09:30:45, 16.9, 12.3, 20.4
Power supply Two (2) AAA alkaline batteries
Battery life Approx. 11,000 measurements
(when using alkaline batteries)
International IP65
Protection class
Dimensions 55 (W) x 31 (D) x 109 (H)mm,
and weight 100g (main unit only)
TEL: 86-20-38108256
info@atago-china.com
TEL: 7-812-777-96-96
info@atago-russia.com
TEL: 234-707-558-1552
atagonigeria@atago.net
TEL: 7-727-257-08-95
info@atago-kazakhstan.com
2108K Printed in Japan
3881-E03

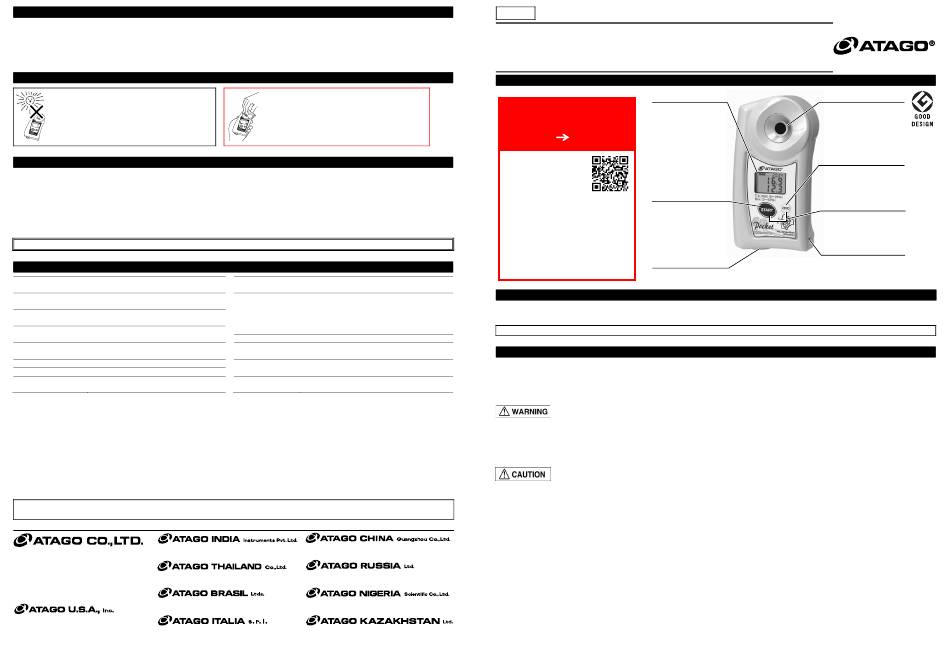

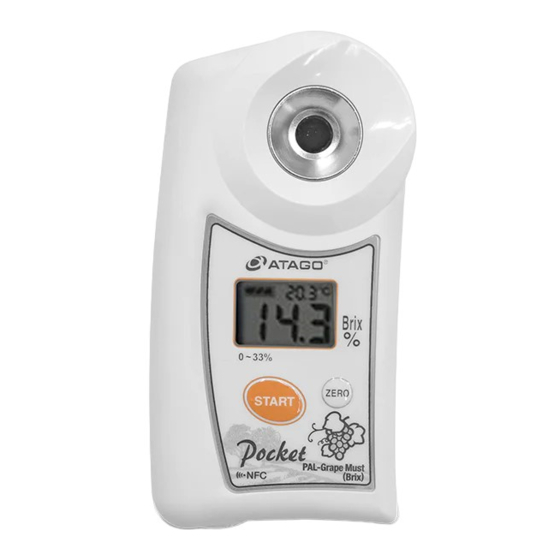

Digital Hand-held "Pocket" Wine Refractometer
PAL-Grape Must (TA & Brix)
LCD
The warranty period
Measurement
results, prism
extension method
temperature,
1 year 2 years remaining battery
charge, etc., are
displayed.
The warranty period will The displayed value
be extended from 1 year is an example.
to 2 years when you
register customer
START button
information.
(POWER button)
QR code
ATAGO Logger NFC
Press to take
can also be downloaded at the same
measurements and
time.
hold down to turn
off the display.
Trouble scanning the code? Access
this link
https://www.atago.net/ur/
Battery
index.php?l=en compartment
Place and remove
batteries from here.
 Main unit ..... 1  Instruction Manual (this book) . 1
AAA alkaline batteries are included. Remove the tape from the battery compartment before inserting the batteries.
ATAGO instruments are rigorously inspected to ensure each unit meets the highest standards of quality assurance.
Thank you for purchasing the instrument. Carefully read and follow all instructions. Keep this manual for future reference.

Safety Instructions

Read and follow all safety instructions before operating the instrument. Failure to comply with the following instructions may result in personal
injury or property damage.
◇ Ensure safety when handling hazardous materials. Observe precautionary measures and use protective equipment, Be aware of the
hazards of such chemicals and emergency response guidelines.
◇ ATAGO may not be held liable for any injury or damage arising in connection with handling of hazardous materials during the use of the
instrument.
◇ Do not drop the instrument or subject it to strong physical shock.
◇ Do not attempt to repair, modify, or disassemble the instrument.
◇ Carefully read this manual to have basic knowledge of the function of each component.
◇ ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
◇ Some acids may corrode the glass prism and/or metal sample stage, which may cause erroneous measurements.
◇ Do not use metal tools, such as a spoon, as they may scratch the prism, resulting in erroneous measurements.
◇ Do not use water above 50˚C to rinse the instrument.
◇ Only use the specified battery type. Observe proper polarities, properly aligning the anodes and cathodes.
◇ Store the instrument away from direct sunlight/heat sources and excessive amounts of dust/debris.
◇ Do not expose the instrument to a rapid change in ambient temperature.
◇ Do not subject the instrument to strong vibration.
◇ Do not subject the instrument to extreme cold temperature.
◇ Do not place the instrument under anything heavy.
◇ Loosen the battery compartment cover for air transportation.
<International Protection Classification IP65>
◇ The instrument is water-resistant, not waterproof, and should not be submerged.
<Chemical Resistance of Body Case>
◇ The body case is made of resin. Do not expose it to water vapor. Some solvents may compromise the structural integrity of the instrument.
Instruction Manual
Cat.No.3881
Parts
Sample stage
Apply water and
samples on the glass
prism located in the
center of the sample
stage.
ZERO button
Press to perform
Zero-Setting.
START button &
ZERO button
Press to set date, time,
and delete data history.
Lanyard hole
Image is for explanation purposes only. It may be
different than the actual product purchased.
Contents
 Calibration Report 1  AAA batteries ....... 2

Introduction
