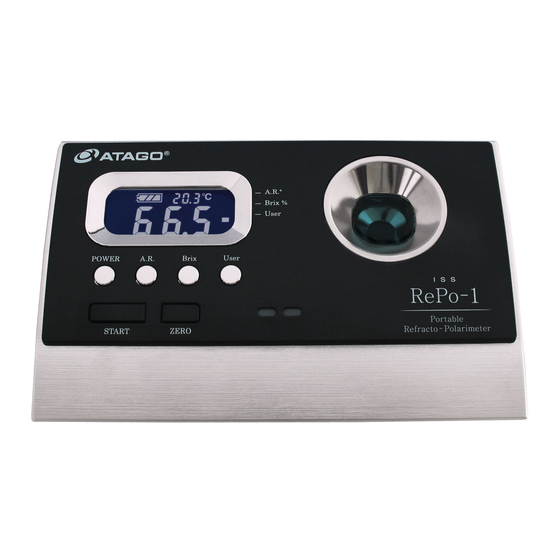

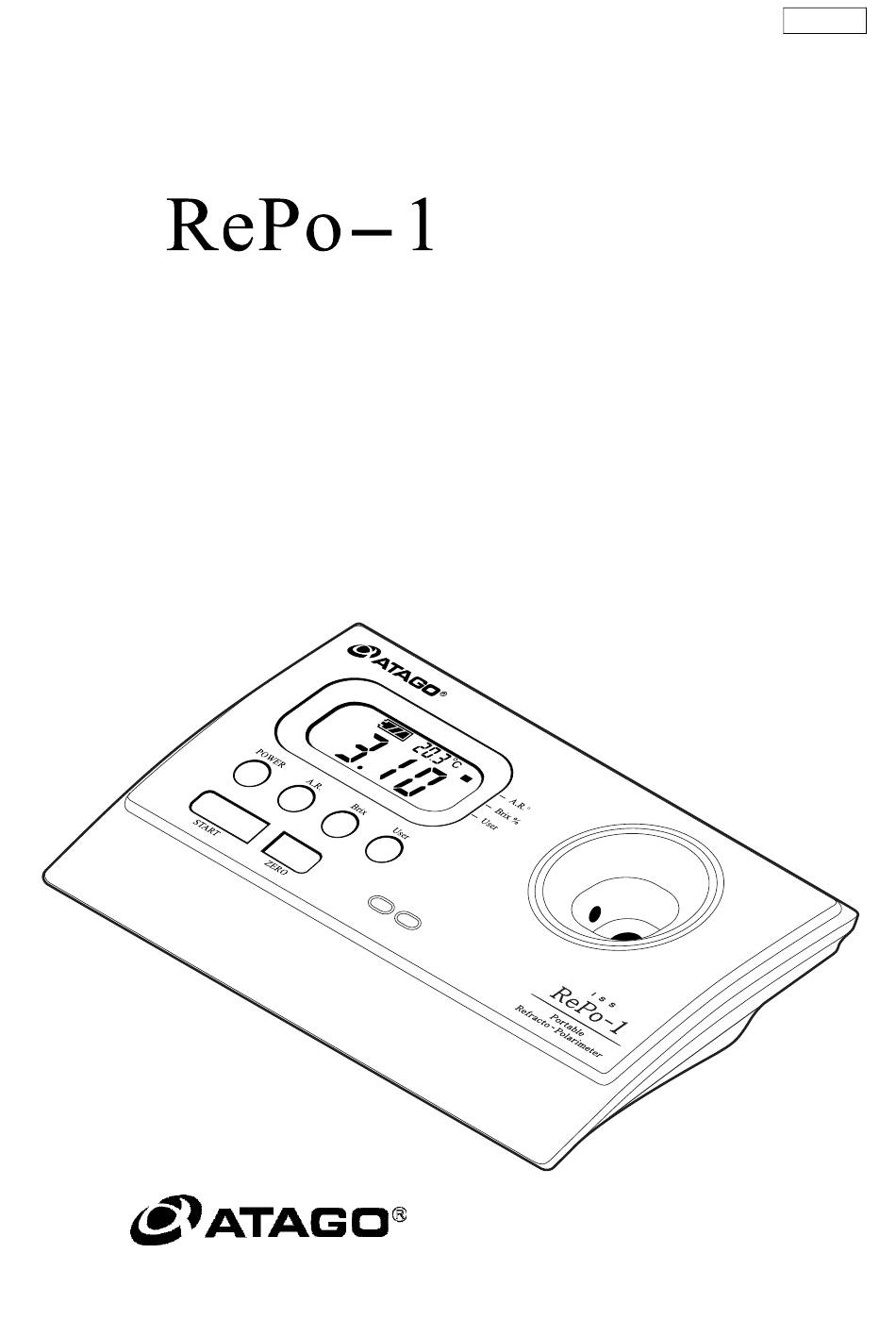

- Page 1 5010-E09 Portable Refracto-Polarimeter Instruction Manual Cat. No. 5010...
- Page 3 クイックマニュアル Quick Manual 1 Powering on (rpage 4) ①Press The cursor indicates the last used scale. 3 Measurement and Evaluation 2 Zero setting ( r page 5) ( r page 6・page 7) ①Wipe the sample stage clean. ② ①Wipe the sample stage clean. ②Fill the sample stage with water up to the ②Fill the sample stage with the sample fill...
- Page 4 Main Features Dual-purpose: Refractive Index (Brix) and Angle of Rotation Measurements Refractive 屈折率 Angle of 旋光度 Index Rotation (Brix) (Brix) Multi-scale: Angle of Rotation; Brix; Purity; International Sugar Scale; Specific Rotation; Concentration Press H to select the desired Angle of Rotation Brix (%) scale –...
- Page 5 Can the purity scale be used to determine the concentration of one solute in a solution with multiple solutes? How about for my unique application? For further information, please contact ATAGO! Substances that could not be measured until now: A multi-component solution.
- Page 6 Useful Features Adjust Auto Shut-off Timer ( r page 12) Is the unit turning itself off too soon? Choose from timer options of 4, 10, or 30 minutes. Turn on Backlight Backlight stays on for 1 minute after any button is pressed. View Scale Information During measurement: Press START to display the scale name abbreviation next to the battery indicator.
-
Page 7: Table Of Contents
Contents Precautions for use ················································································································· 1 1. Overview·································································································································· 2 1. Contents ········································································································································································· 2 2. Components and Functions ································································································································· 2 3. Battery Replacement ··············································································································································· 4 4. Power ON/OFF ·························································································································································· 4 2. Basic Operations ················································································································· 5 1. Zero-setting ································································································································································· 5 2. Measurements ····························································································································································· 6 3. -
Page 8: Precautions For Use
Be aware of the hazards of such chemicals and emergency response guidelines. ATAGO may not be held liable for any injury or Do not attempt to repair, modify, or disassemble the damage instrument. arising in connection with handling of hazardous materials during the use of the instrument. -
Page 9: Overview
1. Overview 1. Contents ・ Main unit ··································· 1 ・ AAA batteries ····························· 4 ・ Instruction Manual (this book) ······· 1 ・Disposable plastic pipettes ············ 3 2. Components and Functions START button (F) Measurement modes = Take a measurement. Settings = Select a setting item. - Page 10 Battery compartment Place and remove batteries from here.( r page 4) Bottom view Temperature/Scale Battery indicator The scale, and then, the temperature is displayed for each measurement. Scales ％ A.R.° : Angle of Rotation Brix : Brix (%) User : User (Purity, International Sugar Scale, Specific Rotation, or Concentration)
-
Page 11: Battery Replacement
3. Battery Replacement CAUTION When the battery icon indicates the low power level ( ), replace all four ● batteries with a brand new set of AAA alkaline batteries (1.5V). Check the expiration dates on batteries before purchase. ● Remove the battery from the unit when the unit is not to be used for a month ●... -
Page 12: Basic Operations
2. Basic Operations CAUTION Operate away from direct sunlight at a stable temperature with as little ● fluctuation as possible. Acclimate both the instrument and sample solution to room temperature to ● ensure accurate results. Measurements may fluctuate with hot or cold samples. Wait to press F after placing the sample on the prism. -
Page 13: Measurements
2. Measurements ①Wipe the sample stage clean. ②Fill the sample stage with the sample solution to the fill line. Measure room temperature (distilled) samples. The instrument should also Fill line be acclimated to room temperature (Approx. 3mL) prior to operations. Try stirring the sample on the sensor during measurement to improve the repeatability of oily/fatty samples. - Page 14 〈Measurement Evaluation Indicator〉 Example: When the Purity scale is configured with a lower limit of 95.0% and an upper limit of 105%. Sample A Sample B Sample C Sample: Sucrose solution (26.0g/100mL) 90.0% 100% 108% ①Select the Purity scale. ②Press F to take a measurement. --- will appear.
-
Page 15: Cleaning
3. Cleaning CAUTION Ensure that the sample stage is clean before measurement. ● Clean the sample stage immediately after each measurement. ● Thoroughly dry the instrument before storing. ● Do not use benzene (paint thinner) on the instrument. ● Store away from direct sunlight at a stable temperature with as little ●... -
Page 16: Settings
4. Settings How to Access Settings This section will explain how to change settings after accessing the menu. ②Press F to ①While the power is ③Press G to select the setting. turned on, press move to the next and hold “user”, setting item. -
Page 17: Tolerance Setting
1. Tolerance Setting [Factory default: lower limit = -5.00，upper limit = +5.00 in Angle of Rotation] Set upper and lower limits for a scale, and the indicator will light up to notify if a measurement falls within or outside the tolerance. Range: -999 to +999 How to access the setting (rpage 9) Resolution... -
Page 18: Concentration/Specific Rotation Setting
2. Concentration/Specific Rotation Setting [Factory default: Concentration of 26.0g/ Range: Concentration 0.00 to 999 100mL，Specific Rotation of 66.6°] Range: Specific Rotation -999 to +999 Resolution (regardless of positive or negative value) > 100 10.0 to 99.9 : 0.1 < 9.99 : 0.01 How to access the setting (rpage 9) To measure Concentration a... -
Page 19: Auto Shutdown Timer Setting
3. Auto Shutdown Timer Setting [Factory default: 4 minutes] Choose from the following 3 timer options. How to access the setting (rpage 9) 8.A.P Turn off after 4 minutes of inactivity - r.o4. Turn off after 30 Turn off after 10 minutes of inactivity minutes of inactivity b.1..0... -
Page 20: Scales
5. Scales ANGLE OF ROTATION - Denoted by "α" and expressed in degrees ("° ") The rotation of polarized light is observed when polarized light that is oscillating unidirectionally rotates as it passes through a liquid. The measurement of the angle of such rotation is called the "Angle of Rotation." The angle of rotation is the basic numeric value measured by polarimeters and are dependent on the concentration of the liquid, the length of the observation tube, temperature, and the measurement wavelength. -
Page 21: Error Messages
6. Error Messages ℃ The battery power is low. ..LLL Not enough light could pass through - L.o.A -O.d. the sample solution to take the angle of rotation measurement. a Dilute or filter the sample before measuring. An error has occurred while Too much external light is interfering ..LLL -E.r.r... -
Page 22: Inspection
Inspect the instrument as needed - when the instrument has been dropped, or the measurements seem to be abnormal. The standard liquid is available from ATAGO. RE-99110 RePo Standard liquid <Inspection of the instrument with standard liquid>... -
Page 23: Optional Accessories And Consumable Items
9. Optional Accessories and Consumable Items Contact ATAGO or your ATAGO distributor to place an order or for any inquiries. Name Part No. Notes MAGIC for RePo RE-79000 Beaker 100mL RE-79423 For sample filtration Easy Filter (100pcs) RE-79422 For sample filtration... -
Page 24: Warranty And Repair
Replacement parts are generally available for 7 years after a model is discontinued. Contact ATAGO, an authorized ATAGO distributor, or the original seller. ∗ Replacement parts may become unavailable from the suppliers within the 7-year period. Any repair services that require disassembly must be performed at an authorized ATAGO service* center. -
Page 25: Specifications
11. Specifications Product name RePo-1 Measurement scales Angle of Rotation, Brix (%), International Sugar Scale, Temperature (˚C, °F) Measurement readings Angle of Rotation, Brix (%),Temperature (˚C, °F) User (International Sugar Scale/Purity/Specific Rotation/Concentration) Brix (%), Purity, International Sugar Scale with Automatic Temperature Compensation Angle of Rotation: -5.00 to +5.00°... - Page 26 MEMO...
- Page 27 TEL: 91-22-28544915 / 40713232 customerservice@atago-india.com Headquarters: The Front Tower Shiba Koen, 23rd Floor 2-6-3 Shiba-koen, Minato-ku, TEL: 66-21948727-9 ,66-21171549 customerservice@atago-thailand.com Tokyo 105-0011, Japan TEL: 81-3-3431-1943 FAX: 81-3-3431-1945 TEL: 55 16 3913-8400 customerservice@atago-brasil.com overseas@atago.net http://www.atago.net/ TEL: 39 02 36557267 customerservice@atago-italia.com 11811 NE First Street, Suite 101, TEL: 86-20-38108256 info@atago-china.com...
