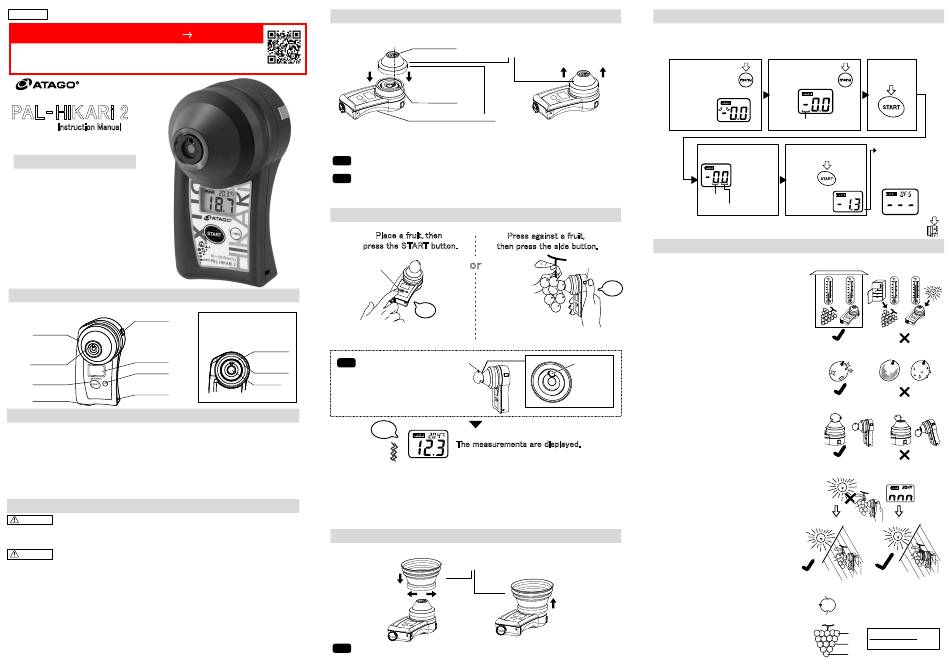

ATAGO PAL-HIKARi 2 Instruction Manual

5452-E12
The warranty period extension method 1 year 2 years
The warranty period will be extended from 1 year to 2 years when you register customer information.
ATAGO Logger NFC can also be downloaded at the same time.
https://www.atago.net/ur/index.php?l=en
Trouble scanning the code? Access this link
Digital Hand-held "Pocket" IR Brix Meter
PAL- HIKARi 2
Instruction Manual
Cat.No.5452

Contents

・Main unit (with silicone cover)・・・・・・ 1
・Small sample stage S ・・・・・・・・・・・・ 1
・Outdoor Cover S ・・・・・・・・・・・・・・・・ 1
・Instruction Manual(this book) ・・・・・・ 1
・Inspection Report・・・・・・・・・・・・・・・・ 1
・Silicon cushion (for replacement) ・・・ 2
・AAA alkaline batteries ・・・・・・・・・・・・ 2
※AAA alkaline batteries are included.

Parts

When the small sample stage S is attached
Side button
Small sample
stage S
LCD
Silicon cushion
menu button
START button
Lanyard hole
Battery
compartment

Introduction

Thank you for purchasing the instrument.
Read and follow all safety instructions before operating the instrument.
Fairure to comply with the following instructions may result in personal injury or property damages.
This instrument measures amount of light absorbed by shining the near infared light to the fruit then
converts to Brix (sugar level) to display.
Brix (sugar level) can be measured with no need to cut and squeeze the fruits.
Measurment variance may be seen depending on the variety and harvest timing. This instrument is equipped
with offset function to match the value in such cases.

Safety Precautions

WARNING
・Do not aim it at a face when measuring.
・Do not attempt to repair, modify, or disassemble the instrument.
CAUTION
・Before use, carefully read this instruction manual and fully understand the function and operation for
each part of the instrument.
・ATAGO is not liable for any or all damages as a result of use of the instrument for those other than its
intended purposes (measurement of Brix, of fruits).
・Do not hit or protrude the light emitting or receiving section with a sharp object.
・ATAGO is not liable for any loss and damage caused by the measurement and use of this instrument.
・Do not expose the instrument to a rapid change in ambient temperature.
・Do not use the instrument where there is much dust.
・Do not subject the instrument to strong vibration.
・Do not place the instrument under anything heavy.
・If the instrument is dropped or subjected to a strong impact, contact your supplier for inspection.
・Loosen the battery compartment cover for air transportation.
●Installation method
QR code
Align the hole for the radiation temperature sensor with
the radiation temperature sensor and push the small
sample stage S straight.
Make sure to carry out the measurement with the small sample stage S installed. With
Note
small sample stage S removed, correct measurement can not be performed.
Note Do not turn the small sample stage S after mounting. Measurement can not be performed
correctly if the hole for radiation temperature sensor and the radiation temperature sensor
are misaligned.
Place a fruit, then
press the START button.
Press the
START button
Sample stage with
small sample stage S removed
Radiation
temperature
sensor
Place the fruit in the
Note
Light emitting
part orientation shown in the
figure (or place against it).
Receiver
Beep
The instrument will turn itself off after 30 seconds of inactivity.
To manually turn it off, hold down the START button for more than 3 seconds.
Depending on the variety, there may be a difference between the refractometer (sugar meter) and the
measured value. Please confirm the difference from the value measured with your refractometer (PAL
- 0 of the set when purchasing IR Brix Meter x Brix Meter) and use the offset function as necessary.
(Refer to "Offset Function" )
When measuring outdoors or in a greenhouse, it is recommended to use the Outdoor Cover S as shown.
●Installation method
Fit the Outdoor
Cover S on to the
Small sample stage S.
Make sure to carry out Installing Outdoor Cover S with the small sample stage S
Note
installed.

Installing Small sample stage S / Removing

Hole for radiation
●Removal method
temperature sensor
Small sample stage S
Radiation
temperature sensor
Same serial number
Pull the small sample stage S
straight up.
Measurement
Press against a fruit,
then press the side button.
or
Touch the fruit
and do not move.
Beep
Not keeping a grape berry still
while measuring will result in
inaccurate measurements.
Measure a grape berry where it is bunched together.
Stem on top
The measurements are displayed.
＜LCD Auto Shut-off＞

Installing Outdoor Cover S / Removing

●Removal method
Outdoor Cover S
Pull off the
Outdoor Cover S
from the Small
sample stage S.
This function modifies the measurement value by a constant. Use this function to match the
measurement value to the refractometer (Brix meter).
How to set addition/subtraction number [Range:-9.9～9.9]
1. Hold down menu while
it is turned on.
（While the measurement is
displayed.）
Current
addition/subtraction
number is displayed
and "-" will flash.
(Example)
4. Enter the addition/subtraction
number.
The first digit:
Press menu to
changethe number.
Press START to
confirm and move
to the next digit.
The first digit :
The second digit:
0 to 9
Press menu to
The second digit :
change the number.
0 to 9
For default
Press the side button while setting up the Off-Set feature.

Measurement Tips and Precautions

Press the
Acclimate the fruit and this instrument to
●
side button
ambient temperature.
The temperature difference between the
Beep surface and the inside of the fruit, and
temperature difference between this
instrument and the fruit may affect the
measurement values.
Especially when measuring refrigerated fruits,
be sure to let the fruits acclimate to the
ambient temperature.
Clean the surface of the fruits.
●
Do not measure the spoiled spots.
P o s i t i o n t h e
fruit so that it
The instrument may not measure correctly
c o v e r s t h e
radiation
when there is water droplets, dust or scar,
temperature
sensor hole.
and bruising soft spots.
Place the sample stage to the fruit.
●
Recommended sample size is 15 mm
or more in diameter.
Measure the part where there is no dent with
diameter that is 15 mm or more.
Be sure to avoid any spacing between the
fruit and the silicon cushion to avoid the
external light interference. If the silicon
cushion is deteriorated, please replace it with
a brand new silicon cushion. (Refer to"How
to change the silicon cushion")
Avoid interference from sunlight
●
Exposure to sunlight may result in faulty
measurement. （Refer to "Error Measages")
Avoid sunlight when measuring outside or in
the greenhouse.
When measuring outdoors or in a greenhouse,
it is recommended to use the Outdoor Cover
S.
Sugar level varies depending on the
●
measured area.
Example for measurement value: Take few
measurements from the same fruit, then
compute and use the average.
When taking measurements, avoid
●
changing external light intensity.
If the intensity of external light changes, it
will result in inaccurate measurements.

Offset Function

2. Press menu to select 3. Press START
either addition or to confirm.
subtraction.
No plus sign will be displayed.
5. Press START to confirm the Press START or side
addition/subtraction number. button to begin
measuring
・Screen image during
measurement when
offset is on.
The entered
addition/subtraction
number will flash
first then remains
lit once confirmed.
(Example)
Make a shade.
Make a shade.
Use the Outdoor Cover S.
17.4
（Example）
16.7
20.1
20.1+19.7+18.4
＝ 19.4
19.7 3
18.4
（Example）
