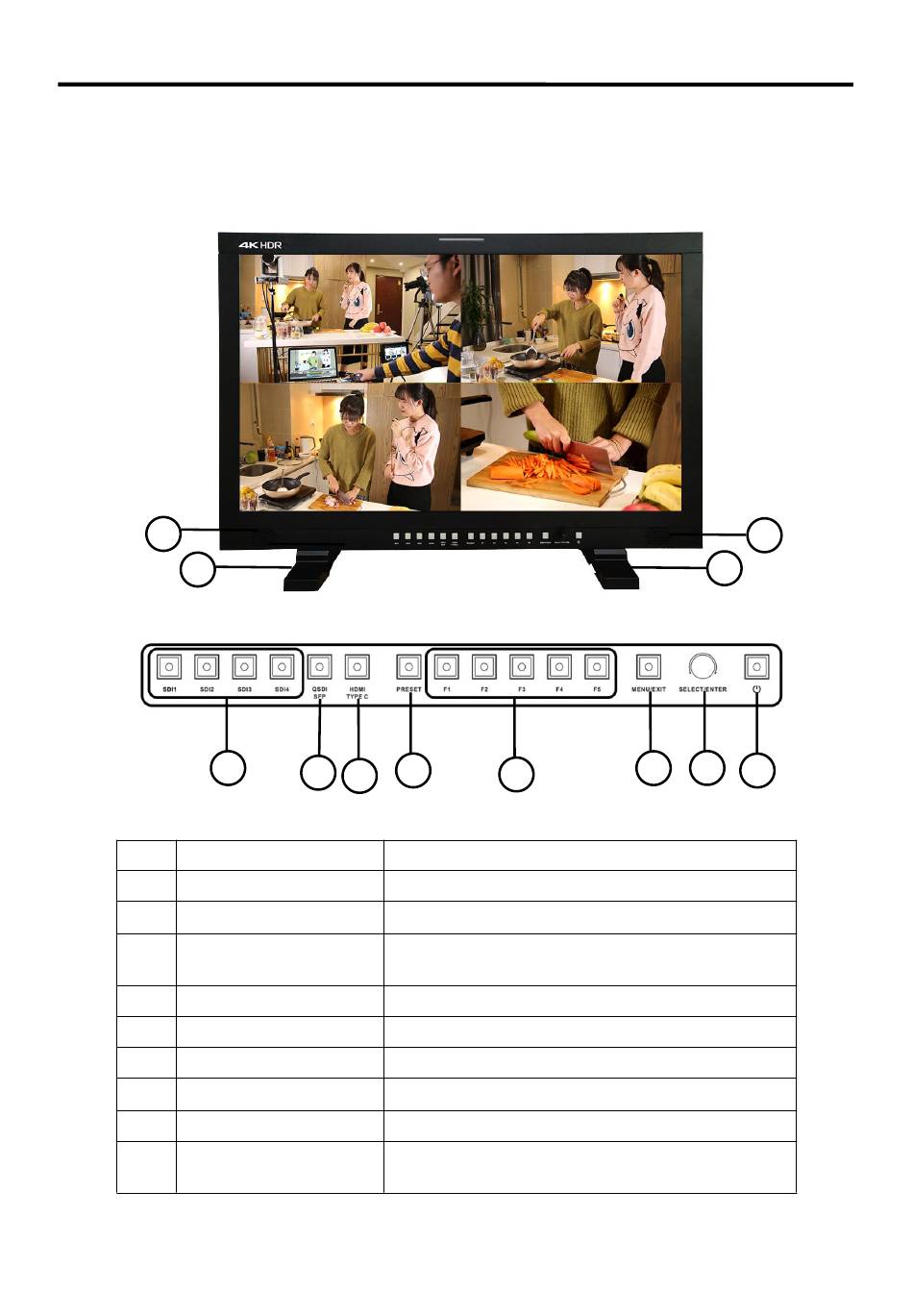

1.2.1 Front Panel

1
2
3
Speaker
①
Base
②
SDI 1 to SDI 4 Buttons
③
QSDI/SFP Button
④
HDMI/Type C Button
⑤
Preset Button
⑥
F1 to F5 Buttons
⑦
MENU/EXIT Button
⑧
SELECT/ENTER Button
⑨
Power Key
⑩
4K HDR Monitor
6
4
5
2-channel speaker with HDMI and SDI embedded audio.
Detachable.
For SDI 1-4 signal selection.
Switch between 4-image division mode and optical fiber
signal.
For switch between HDMI and Type C signal.
Preset Mode.
Soft Keys.
Open/close OSD menu, or go back to previous menu.
Rotate to select, and press to confirm.
For turn-on (blue light) or turn-off (red light) , 3-second
long press for turn-off, short press for turn-on.
