Summary of Contents for RGBlink 962-1330-01-0

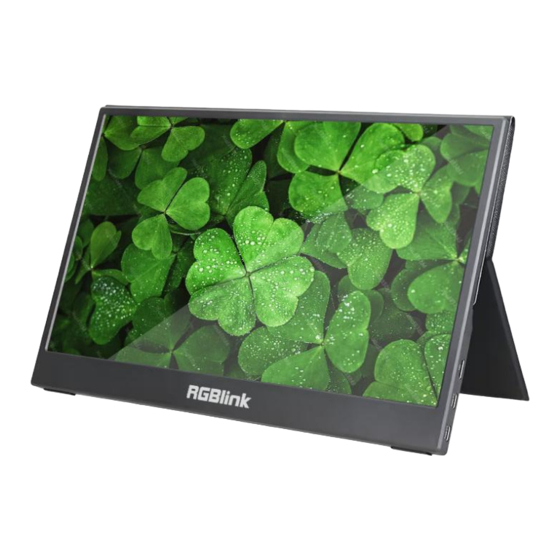

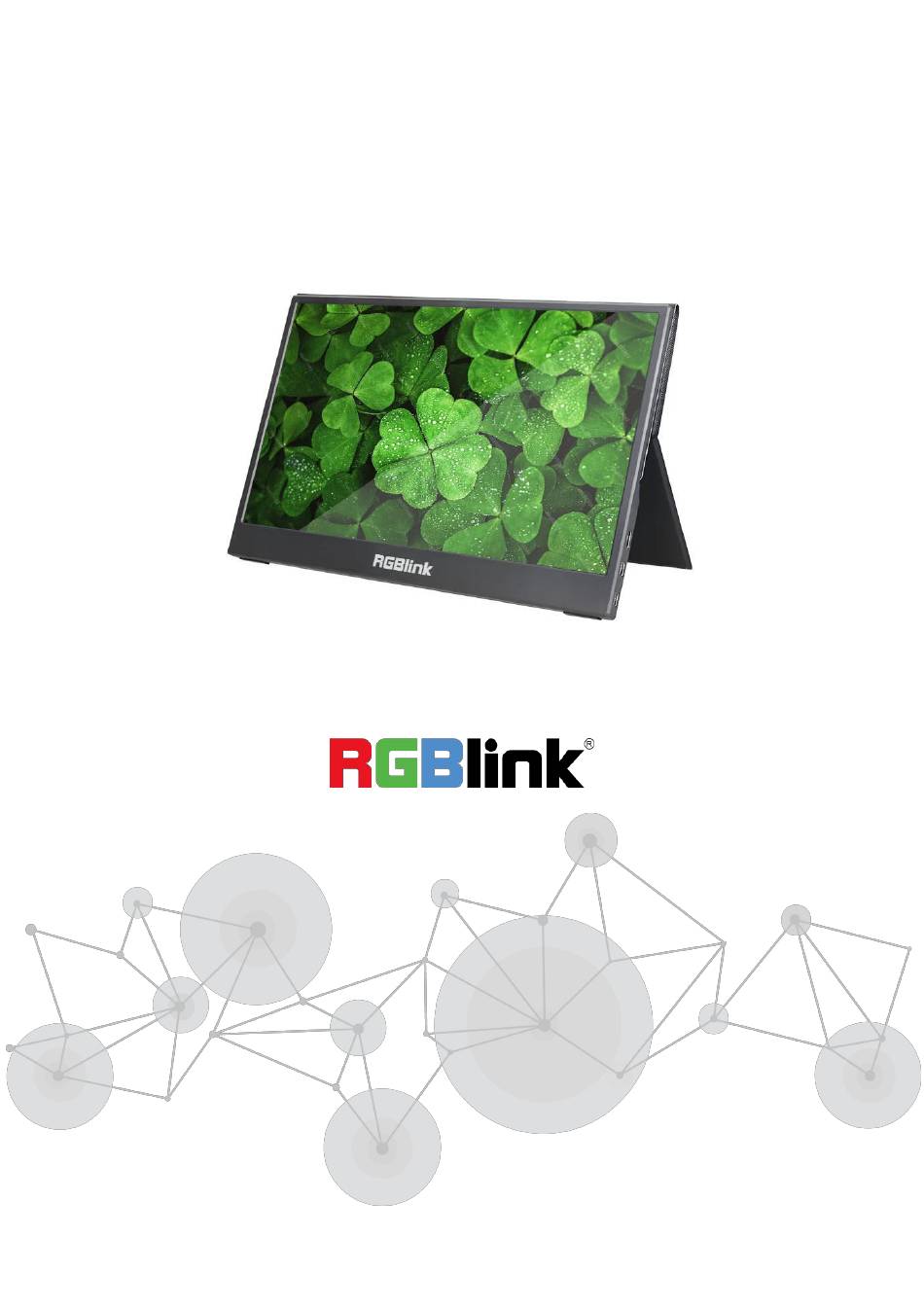

- Page 1 13.3 inch Portable Monitor User Manual...
-
Page 2: Table Of Contents
Content Content ..................................1 Declarations ................................3 FCC/Warranty ..............................3 Operators Safety Summary ..........................3 Installation Safety Summary .......................... 4 Chapter 1 Your Product ............................5 1.1 Key Features ..............................5 1.2 Key and Interface ............................5 1.3 Dimensions ..............................6 Chapter 2 Use Your Product ........................... 7 2.1 Device Connection ............................. - Page 3 4.1 Contact Us ..............................14 Chapter 5 Appendix ..............................15 5.1 Support Phone Models ...........................15 5.2 Support Computer Models ........................15 5.3 Terms & Definitions ..........................16 5.4 Revision History ............................22 13.3 inch Portable Display User Manual...
-
Page 4: Declarations
Thank you for choosing our product! This User Manual is designed to show you how to use this monitor quickly and make use of all the features. Please read all directions and instructions carefully before using this product. Declarations FCC/Warranty Federal Communications Commission (FCC) Statement This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC rules. -
Page 5: Installation Safety Summary
Do Not Remove Covers or Panels There are no user-serviceable parts within the unit. Removal of the top cover will expose dangerous voltages. To avoid personal injury, do not remove the top cover. Do not operate the unit without the cover installed. Power Source This product is intended to operate from a power source that will not apply more than 230 volts rms between the supply conductors or between both supply conductor and ground. -
Page 6: Chapter 1 Your Product
Chapter 1 Your Product 1.1 Key Features ● 13.3 inch screen, resolution up to 1920x1080 ● Full function USB-C interface for power supply, audio and video signal ● mini HDMI interface to fit most HD devices ● Built-in dual microphones ●... -
Page 7: Dimensions
Press to open the directory menu, scroll the "Roll key" ③ Roll Key up and down in the memu to control the cursor. ④ 3.5mm Headphone Interface Headphone, Audio extension interface. Responsible for audio and video signal transmission of ⑤ mini HDMI Interface display. -
Page 8: Chapter 2 Use Your Product
Chapter 2 Use Your Product 2.1 Device Connection 1. Connect computers with a full function Type-c interface. The display supports the use of full-featured Type-c interface for extended display or duplicate display of standard wiring wirers. Note：When the brightness and volume are adjusted to more than 80%, 1920 * 1080 resolution is connected to an external power supply of 5V / 3A and above;... - Page 9 ● When no external power is needed, the mobile phone battery powers the display; the energy-saving mode is activated, and the display brightness is automatically adjusted to 30%. The user can adjust the display brightness and volume according to the input power of the mobile phone.
-
Page 10: Menu
Note：When connecting the HD device, the portable display must be connected to the power supply first, and then the device and the portable display must be connected with the HDMI cable to ensure the smooth transmission of data signals. 2.2 Menu Press Roll Key to enter Menu. -
Page 11: Image
2.2.2 Image Set the display image display according to personal preference. 2.2.3 Color Temperature Users can configure red, green and blue values for color temperature adjustment. Range is from 0 to 100. 13.3 inch Portable Display User Manual... -
Page 12: Osd Setting
2.2.4 OSD Setting The user can select language as needed, adjust the horizontal and vertical position so as to ensure the OSD is displayed on an appropriate position of the screen. Set the transparency to customize the OSD display effect according to preference. 2.2.5 Reset When a menu interface presents a gray interface and cannot be operated, you can select reset. -
Page 13: Others
2.2.6 Others Select signal source, adjust low blue light value and volume in the following interface. 13.3 inch Portable Display User Manual... -
Page 14: Chapter 3 Order Codes
Chapter 3 Order Codes 3.1 Product Code 962-1330-01-0 13.3 inch Portable Monitor 13.3 inch Portable Display User Manual... -
Page 15: Chapter 4 Support
Chapter 4 Support 4.1 Contact Us 13.3 inch Portable Display User Manual... -
Page 16: Chapter 5 Appendix
Chapter 5 Appendix 5.1 Support Phone Models Brand Phone model Mate10、Mate10Pro、Mate20、Mate20Pro、Mate20X、Mate RS、Mate30、 Huawei P20、P20 Pro、P20 RS、P30、P30 Pro、Honor Note10、HonorV20 Samsung S8、S8+、S9、S9+、S10、S10+、 Note8、Note9、S10 Smartisan R1、Pro2S OPPO R17 Pro、Reno series More Updated continuously..5.2 Support Computer Models Brand Computer model Huawei MateBook D、MateBook X、MateBook X Pro、MateBook E、MateBook 13 Apple MacBook12、MacBook Air 2018、MacBook Pro、ipad Pro 2018 Honor... -
Page 17: Terms & Definitions
More Updated continuously..5.3 Terms & Definitions ● RCA: Connector used primarily in consumer AV equipment for both audio and video. The RCA connector was developed by the Radio Corporation of America. ●BNC: Stands for Bayonet Neill-Concelman. A cable connector used extensively in television (named for its inventors). - Page 18 ● HDMI 1.3: Released on June 22 2006, and increased the maximum TMDS clock to 340 MHz (10.2 Gbit/s). Support resolution 1920 × 1080 at 120 Hz or 2560 × 1440 at 60 Hz). It added support for 10 bpc, 12 bpc, and 16 bpc color depth (30, 36, and 48 bit/px), called deep color.
- Page 19 ● SFP: Small form-factor pluggable , is a compact, hot-pluggable network interface module used for both telecommunication and data communications applications. ● Optical Fiber Connector: Terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. 4 most common types of optical fiber connectors are SC, FC, LC,ST.
- Page 20 3.1&3.2 ●NTSC: The colour video standard used in North America and some other parts of the world created by the National Television Standards Committee in the 1950s. NTSC utilizes an interlaced video signals. ●PAL: Phase Alternate Line. A television standard in which the phase of the colour carrier is alternated from line to line.
- Page 21 ●RTMP: Real-Time Messaging Protocol (RTMP) was initially a proprietary protocol developed by Macromedia (now Adobe) for streaming audio, video and data over the Internet, between a Flash player and a server. ●RTSP: The Real Time Streaming Protocol (RTSP) is a network control protocol designed for use in entertainment and communications systems to control streaming media servers.
- Page 22 ●Contrast Ratio: The ratio of the high light output level divided by the low light output level. In theory, the contrast ratio of the television system should be at least 100:1, if not 300:1. In reality, there are several limitations. Well-controlled viewing conditions should yield a practical contrast ratio of 30:1 to 50:1. ●Colour Temperature: The colour quality, expressed in degrees Kelvin (K), of a light source.
-
Page 23: Revision History
First release Aster All information herein is Xiamen RGBlink Science & Technology Co Ltd. excepting noted. is a registered trademark of Xiamen RGBlink Science & Technology Co Ltd. While all efforts are made for accuracy at time of printing, we reserve the right to alter otherwise make change without notice.
