Tern Market Basket Quick Start Manual

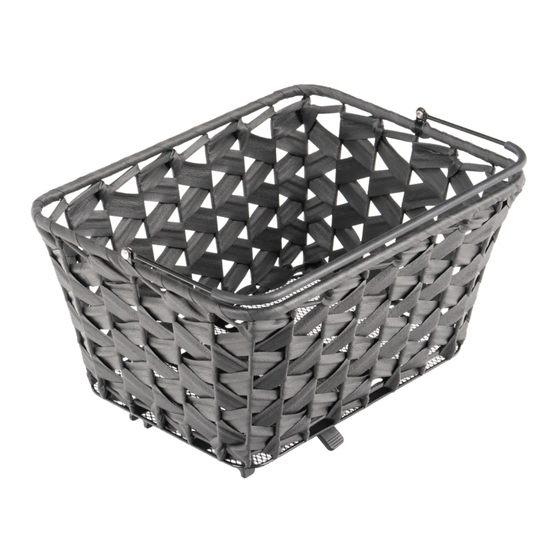

Tern Market Basket
Specifications
Compatibility:
All Tern & Biologic rear racks. Racks with tube diameter 10-16 mm and rack width 9-16 cm.
Maximum load capacity:
10 kg (22 lb)

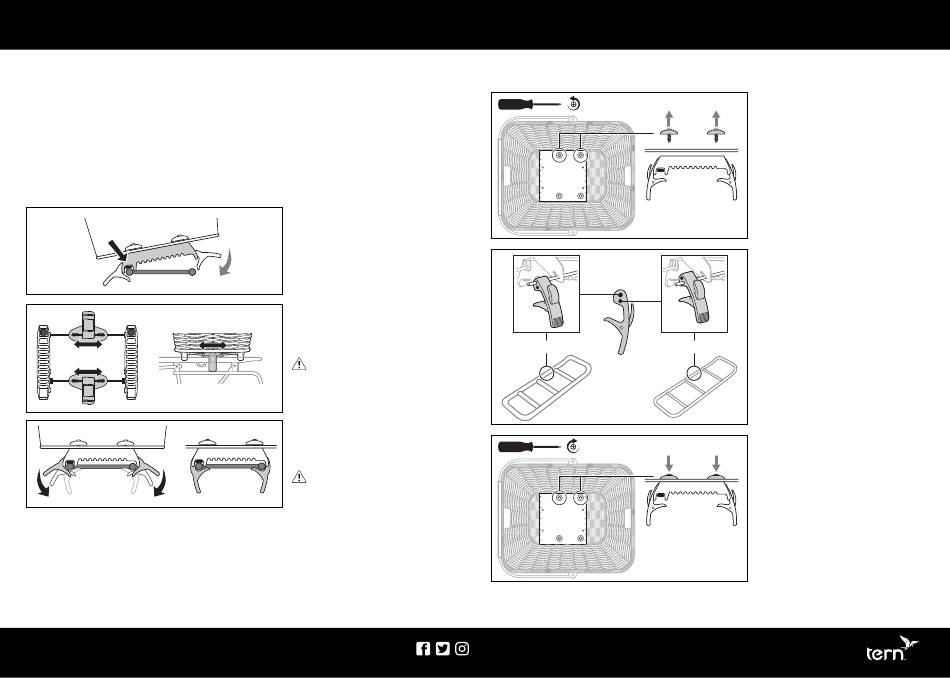

Mounting the Basket
The bracket is set up for mounting a Tern Cargo
tubes. To adjust the bottom bracket for different racks, see Adjusting for Different Rack Tube Diameters and
Adjusting for Different Rack Widths.
CLICK! CLICK!
ternbicycles.com
Rack or racks 11-13 cm wide with 14-16 mm diameter
™
1. Rest the red rubber inserts on the rail.
2. Position the levers anywhere along the
spring rod.
Ensure that no objects, such as strap
holder loop, prevent the levers from
closing completely.
3. Set the basket down, close the levers
and make sure the levers click in.
Make sure that the basket is securely
mounted before riding.
Adjusting for Different Rack Tube Diameters
Ø 14-16 mm
Tern Bicycles
1. Unscrew one bracket and remove
spring rods.
2. Insert the rods into the appropriate
holes and reinsert the rods into the
bracket.
Ø 14-16 mm (upper hole):
Cargo Rack, Rapid Transit Rack, GSD
Rear Rack"
Ø 10-13 mm
Ø 10-13 mm (lower hole):
Loader Rack, Trolley Rack, BioLogic
Post Rack, BioLogic Portage Rack 24,
BioLogic Portage Rack 20
3. Fasten the screws (2 Nm max).
