Tern FlightSuit Quick Start Manual

Tern FlightSuit Quick Start Manual

Advertisement

FlightSuit

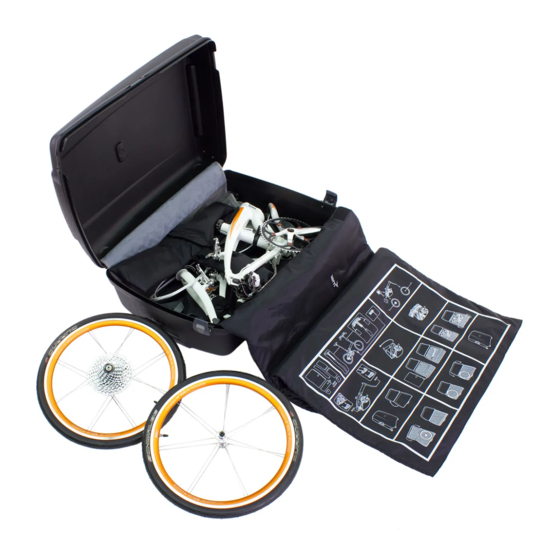

Parts

1. Suitcase Pad
2. Seatpost Sock
3. Handlebar Sock (2)
4. Handlepost Sock
5. Dropout Sock
6. Fork Dropout Protector
7. Frame Dropout Protector
8. Pedal Bag

Tools Required (not supplied)

5 mm hex wrench
15 mm open wrench (for non-QR pedals or hubs)

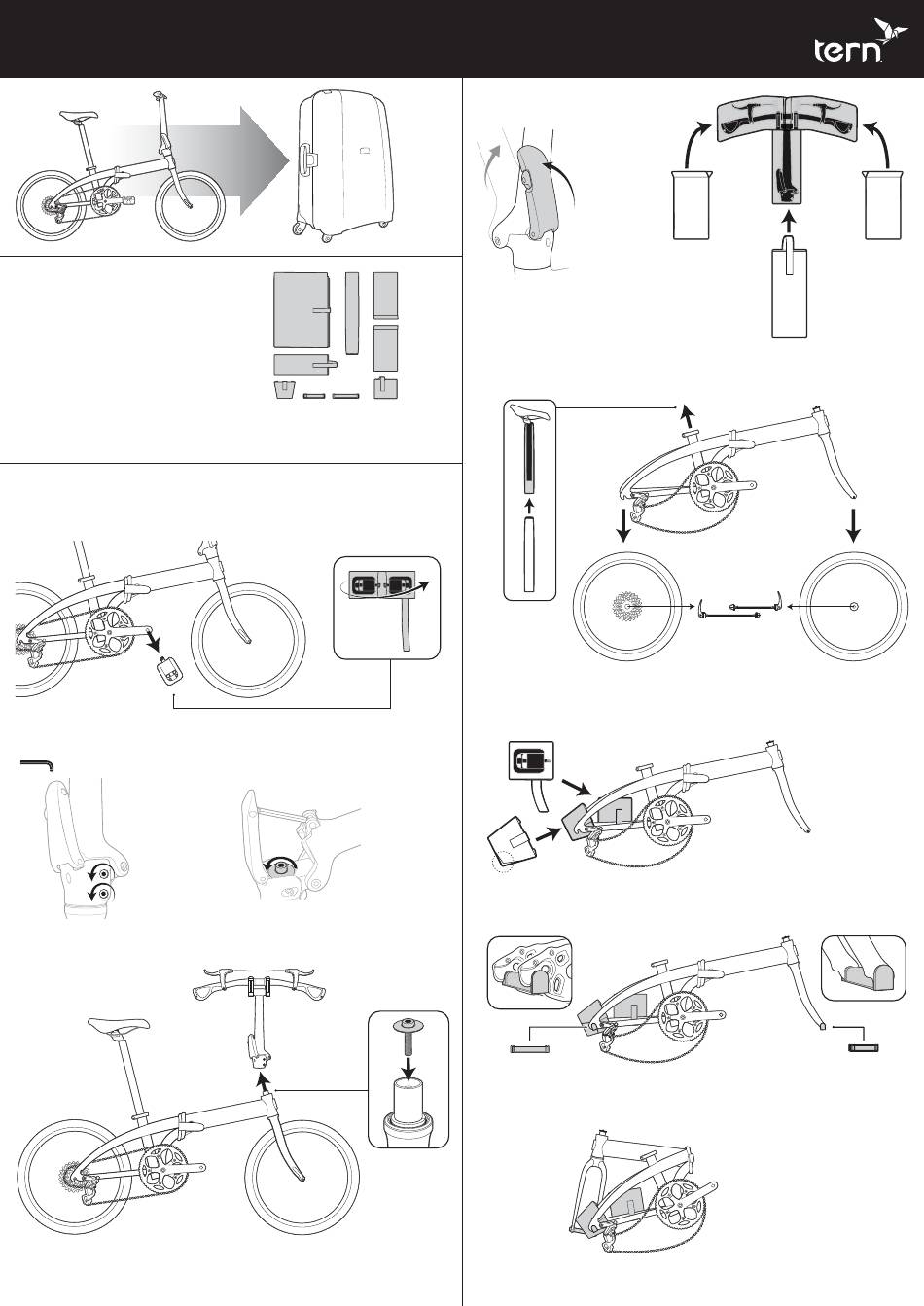

Bike Disassembly & Bagging
1. Remove Pedals and place in Pedal Bag and set aside.
5 mm
5 mm
5 mm
2. Remove Handlepost by first loosening the Handlepost Steerer Bolts and then opening and removing the Top Cap Bolt.
3. Replace the Top Cap and Top Cap Bolt after removing the Handlepost.
1
2
3
4
6
7
8
5
4. Close Handlepost Lever, then slide Handlepost Sock from the base of the Handlepost and fasten in place.
5. Slide Handlebar Socks over each side of the Handlebar and fasten in place.
6. Remove Seatpost and slide Seatpost Sock on.
7. Remove QR Skewers from Wheels, if fitted.
8. Remove Wheels, disconnecting any Coaster Brake and/or Gear Cables, if required.
9. Slide Dropout Sock over the left Rear Dropout. Ensure the opening faces down.
10. Attach Pedal Bag to left Chainstay.
11. Insert Frame Dropout Protector into the Rear Dropout.
12. Insert Fork Dropout Protector into the Fork Dropout.
11. Fold bike in half.
