Tern Clubhouse Mini Gen 1 Manual

Clubhouse Mini ™
What's Included

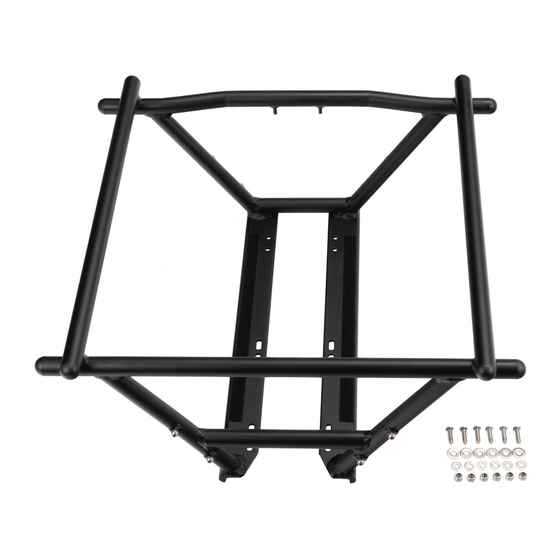

1. Clubhouse Mini
2. M6 x 20 Bolt x 6
3. M6 x 16 mm Washer x 6
4. M6 x 12 mm Washer x 6
5. M6 Nut x 6
How to Install the Clubhouse Mini
Tools Required (Not Included)
• 4 mm Allen Wrench
• 10 mm Wrench
* Which set of mounting points to
use varies by bike model, so make
sure to check for compatibility by
visiting the link at the beginning
of this manual before you start.
Front
Rear
Transporting One Child
Please review the Carrying Rear Passenger section to learn how to safely carry children on the back of the bike.
Any additional passenger seating accessories are available for purchase from your local Tern dealer.
Clubhouse Mini Gen 1
Manual Version 02
Make sure you have all the latest information
needed to use and enjoy this product!
Visit ternbicycles.com/support for updated:
Add anti-seize lubricant to the tip of the bolts before securing
the nuts. If anti-seize lubricant is not available, apply any
standard lubricant to reduce friction and prevent thread galling.
4 mm
10 mm
9 Nm - 10 Nm
Installing a Bottle Cage or Lock
4 mm
4 Nm - 5 Nm
Carrying Cargo
The Clubhouse Mini fits a single 400 x 400 mm box that is at least 240 mm in height.
Warning
The Clubhouse Mini is not intended to provide protection in the event of an accident or if the bike
falls over. It is solely intended to keep passengers or cargo centered while riding.
