Tern Market Manual

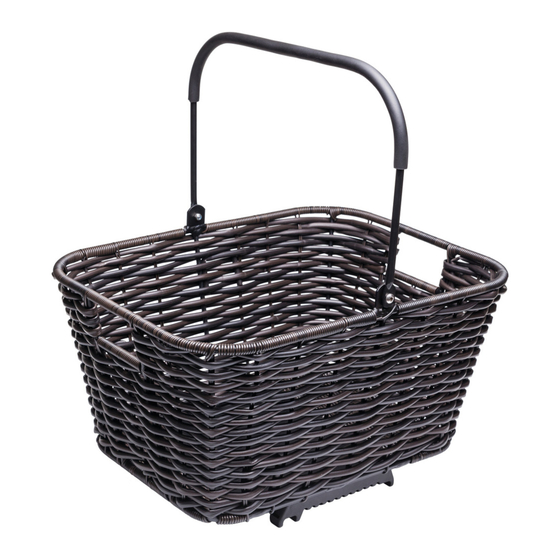

Market Basket
™

Getting Started

The Market Basket is designed with the KLICKfix® TopKlip mounting system which allows it to fit bicycle
racks that are between 9 – 16 cm wide and have a tube diameter between Ø 10 – 16 mm.
To begin, measure the width of your rack and one of your rack tubes (which is
the diameter of your tube). If your rack is a Tern or BioLogic rack or is both
between 11 – 13 cm wide and has a Ø 14 – 16 mm tube diameter, go directly to
the Mounting the Basket section on the back.
If your rack does NOT fit within these ranges, you will need to adjust the mount under the basket.
Depending on which measurement is out of range, you may need to review both the How to Adjust for
Different Rack Widths and the How to Adjust for Different Rack Tube Diameters sections to learn how to
make these modifications.
How to Adjust for Different Rack Widths
C / B/ A
Tern Bicycles
The Market Basket can fit racks between
13-16 cm A
9 – 16 cm wide. Out of the box, the
Market Basket has already been set up to
mount on a Tern or BioLogic rack or a
B
11-13 cm
rack that is between 11 – 13 cm wide (B).
Measure the width of the rack from side
to side to determine which setting (A, B
9-11 cm C
or C) to use.
To fit other rack widths:
1. Slide the rubber rings on the spring
rod away from the brackets.
2. Push both ends of the spring rod away
from the notch and shift it to the
desired position. Please check to see
which setting (A, B, or C) is most
appropriate.
3. Slide the rubber retainer rings towards
the brackets.
How to Adjust for Different Rack Tube Diameters
Out of the box, the Market Basket has been set up to fit ø 14 – 16 mm rack tubes.
Ø 14-16 mm
ternbicycles.com
To fit other tube diameters:
1. Detach one bracket and remove
both spring rods.
2. Insert both rods into the
appropriate holes and reinsert
rods into the bracket.
Ø 10-13 mm
Ø 14-16 mm (upper hole)
Ø 10-13 mm (lower hole):
3. Tighten the screws (Max 2 Nm).
