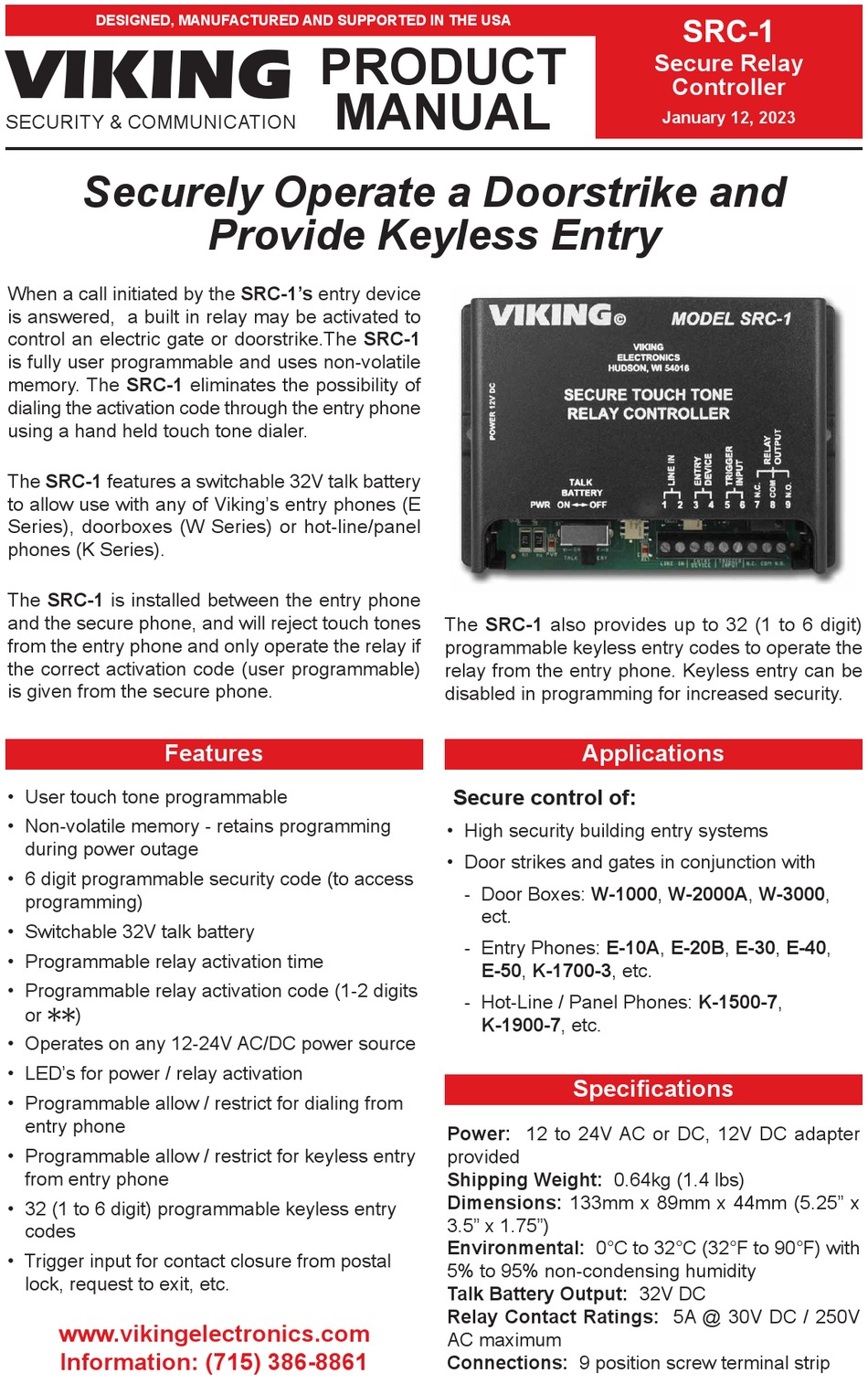

Viking SRC-1 Product Manual

DESIGNED, MANUFACTURED AND SUPPORTED IN THE USA
VIKING
SECURITY & COMMUNICATION
Securely Operate a Doorstrike and
When a call initiated by the SRC-1's entry device
is answered, a built in relay may be activated to
control an electric gate or doorstrike.The SRC-1
is fully user programmable and uses non-volatile
memory. The SRC-1 eliminates the possibility of
dialing the activation code through the entry phone
using a hand held touch tone dialer.
The SRC-1 features a switchable 32V talk battery
to allow use with any of Viking's entry phones (E
Series), doorboxes (W Series) or hot-line/panel
phones (K Series).
The SRC-1 is installed between the entry phone
and the secure phone, and will reject touch tones
from the entry phone and only operate the relay if
the correct activation code (user programmable)
is given from the secure phone.
Features
• User touch tone programmable
• Non-volatile memory - retains programming
during power outage
• 6 digit programmable security code (to access
programming)
• Switchable 32V talk battery
• Programmable relay activation time
• Programmable relay activation code (1-2 digits
or QQ)
• Operates on any 12-24V AC/DC power source
• LED's for power / relay activation
• Programmable allow / restrict for dialing from
entry phone
• Programmable allow / restrict for keyless entry
from entry phone
• 32 (1 to 6 digit) programmable keyless entry
codes
• Trigger input for contact closure from postal
lock, request to exit, etc.
www.vikingelectronics.com
Information: (715) 386-8861
PRODUCT
MANUAL
Provide Keyless Entry
The SRC-1 also provides up to 32 (1 to 6 digit)
programmable keyless entry codes to operate the
relay from the entry phone. Keyless entry can be
disabled in programming for increased security.
Applications
Secure control of:
• High security building entry systems
• Door strikes and gates in conjunction with
- Door Boxes: W-1000, W-2000A, W-3000,
ect.
- Entry Phones: E-10A, E-20B, E-30, E-40,
E-50, K-1700-3, etc.
- Hot-Line / Panel Phones: K-1500-7,
K-1900-7, etc.
Specifications
Power: 12 to 24V AC or DC, 12V DC adapter
provided
Shipping Weight: 0.64kg (1.4 lbs)
Dimensions: 133mm x 89mm x 44mm (5.25" x
3.5" x 1.75")
Environmental: 0°C to 32°C (32°F to 90°F) with
5% to 95% non-condensing humidity
Talk Battery Output: 32V DC
Relay Contact Ratings: 5A @ 30V DC / 250V
AC maximum
Connections: 9 position screw terminal strip

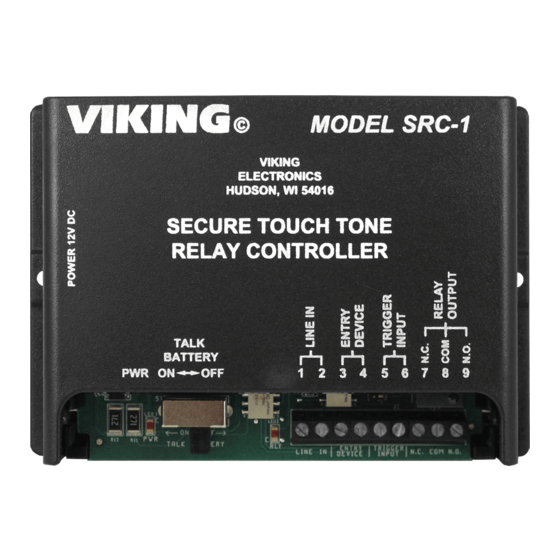

SRC-1
Secure Relay
Controller
